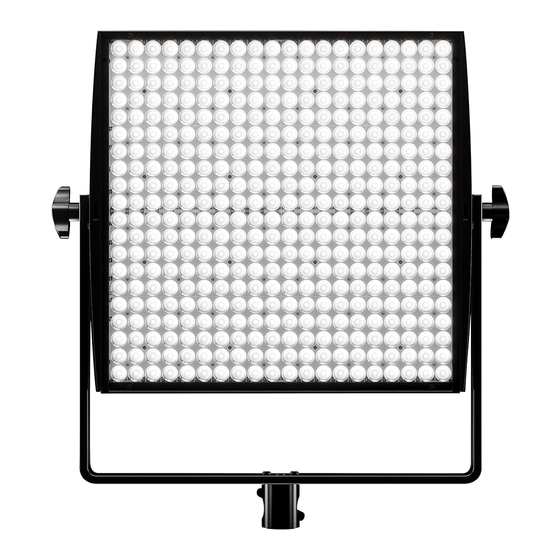

- Page 1 User Manuals Superpanel 30 Dual Color Superpanel 60 Dual Color Actionpanel Dual Color Ultrapanel 30 Dual Color Ultrapanel 60 Dual Color Release 7.xx...
-
Page 2: Safety Precautions
Thanks for having purchased Lupo products. All the products are made in Italy and all the efforts have been put to keep the quality standards high. We hope this product can help you in your job and make your life easier as a professional. - Page 3 Instructions • Device for indoor use only. • Maximum ambient temperature: 40 °C. • Make sure power supply plug is suitable to power required. • As prescribed by international regulations, a safety cable must be used when the fixture is suspended from ceiling.
- Page 4 Getting Started with the Superpanel 30 and the Ultrapanel 30 Screw hole for DMX THROUGH barndoors/diffuser (Female 5 PIN XLR connector) Display DMX INPUT Power ON indicator LED light (Male 5 PIN XLR connector) USB port CCT knob INTENSITY knob UP button DOWN button Tilt lock knob...
-
Page 5: Control Panel
Getting Started with the Superpanel 60 and the Ultrapanel 60 UP/+ button Display DOWN/+ button Power ON indicator CCT knob LED light DMX THROUGH Hook for safety cable (Female 5 PIN XLR) INTENSITY knob DMX INPUT (Male 5 PIN XLR) Tilt lock knob ON/OFF Power IN connector... -
Page 6: Manual Operation
ATTENTION: The light intensity level is adjustable from 0 - 50% if the FAN is OFF. The value on the display flashes. MANUAL OPERATION 1. Press the push button to enter the main MENU. 2. Select MANUAL by pressing the push button. - Page 7 DMX OPERATION - Advanced Settings 1. Press the push button to enter the main MENU. 2. Navigate through the main MENU with the knob and press the push button to confirm selection. 3. Rotate the knob to select DMX ADVANCED, press the push button to confirm selection.
- Page 8 Dayled 1000 mono color Dayled 1000 dual color Dayled 2000 mono color Dayled 2000 dual color Superpanel 30 dual color soft Superpanel 30 dual color lens Superpanel 30 full color soft Superpanel 30 full color lens Superpanel 60 dual color soft...
- Page 9 This parameter provides an ASCII text MANUFACTURER 0x0081 response with the Manufacturer name for the LABEL device. “LUPO” is the default name. Set the device to its factory defaults. Get: FACTORY DEFAULTS 0x0090 Check if settings still in default state -> 1 if...
-
Page 10: Device Settings
DEVICE SETTINGS 1. Press the push button to enter the main MENU. 2. Navigate through the MENU rotating the button, select DEVICE SETTINGS, press the push button to confirm the selection. 3. Navigate through the FAN / DISPLAY / MENU VIEW / FREQUENCY / FILTER / LINEARIZATION functions, rotating the button to select the desired function and press push button to confirm the selection. - Page 11 DMX OPERATION - DMX protocol The Actionpanel can be used with 8 bit (1 channel per function) and 16 bit (2 channels per function). The Actionpanel uses consecutive channels starting from the DMX address set on the panel used as reference for the connection to the control desk. Please take the above into consideration when using many units of Actionpanel to avoid overlaps.
- Page 12 NOTE: After 1 minute of inactivity in the menu, the device automatically exits and returns to the last selected mode. Lupo srl - Via V. Sassi 28/30 Collegno (TO) - 10093 - Italy Phone: +39 011 411 9919 / e-mail: contact@lupo.it / website: www.lupo.it...
- Page 13 Package Contents for Actionpanel AC Adapter AC Adapter * AC Power Mounting Cord Cable AC input: 100 V - 240 V DC output: 24 V Bracket ATTENTION: Please keep the original package of the product in a safe place for warranty reasons. Actionpanel Package Contents for Superpanel 30 and Ultrapanel 30 AC Power...
