MIA UPHOLSTERED NAILHEAD BED FULL & QUEEN - ASSEMBLY INSTRUCTIONS

PARTS INCLUDED

A. HEADBOARD (1)
B. SIDE RAILS (2)
C. HEADBOARD (1)
D. SLAT ROLL (1)
E. CENTER SUPPORT SLAT (1)
F. CENTER SUPPORT SLAT FOOT (WITH ADJUSTABLE GLIDE) (1)

TOOLS NEEDED

Phillips-head Screwdriver (not included)
ASSEMBLY INSTRUCTIONS ASSEMBLY INSTRUCTIONS
Bed must be assembled by at least two people.
Please read instructions carefully before assembling bed.
Use the above parts and hardware list to identify each component.
Keep all packing materials until assembly is complete to avoid loss of smaller parts.
1. Stand the Headboard (A) upright and attach Side Rails (B), as shown in Diagram I.
2.
Repeat above procedure to attach the Footboard (C).
Attach the Cross Support Foot (F) to the Center Support Slat (E) as shown in Diagram II.
3.
Attach the L-Shaped Brackets (5) to the ends of Center Support Slat (D), and tighten with Allen Head
4.
Bolt (2) and Allen Key (1). Attach the L-Shaped Brackets (5) to the Headboard (A) and Footboard (C), and
tighten with Allen Head Bolt (3) and Allen Key (1), as shown in Diagram III.
5. Place the Slat Roll (D) into the cleats on the inside of the Side Rails (B).
Screw the ends of the slats to the cleats using Screws (4), as shown in Diagram IV.
All manuals and user guides at all-guidesbox.com

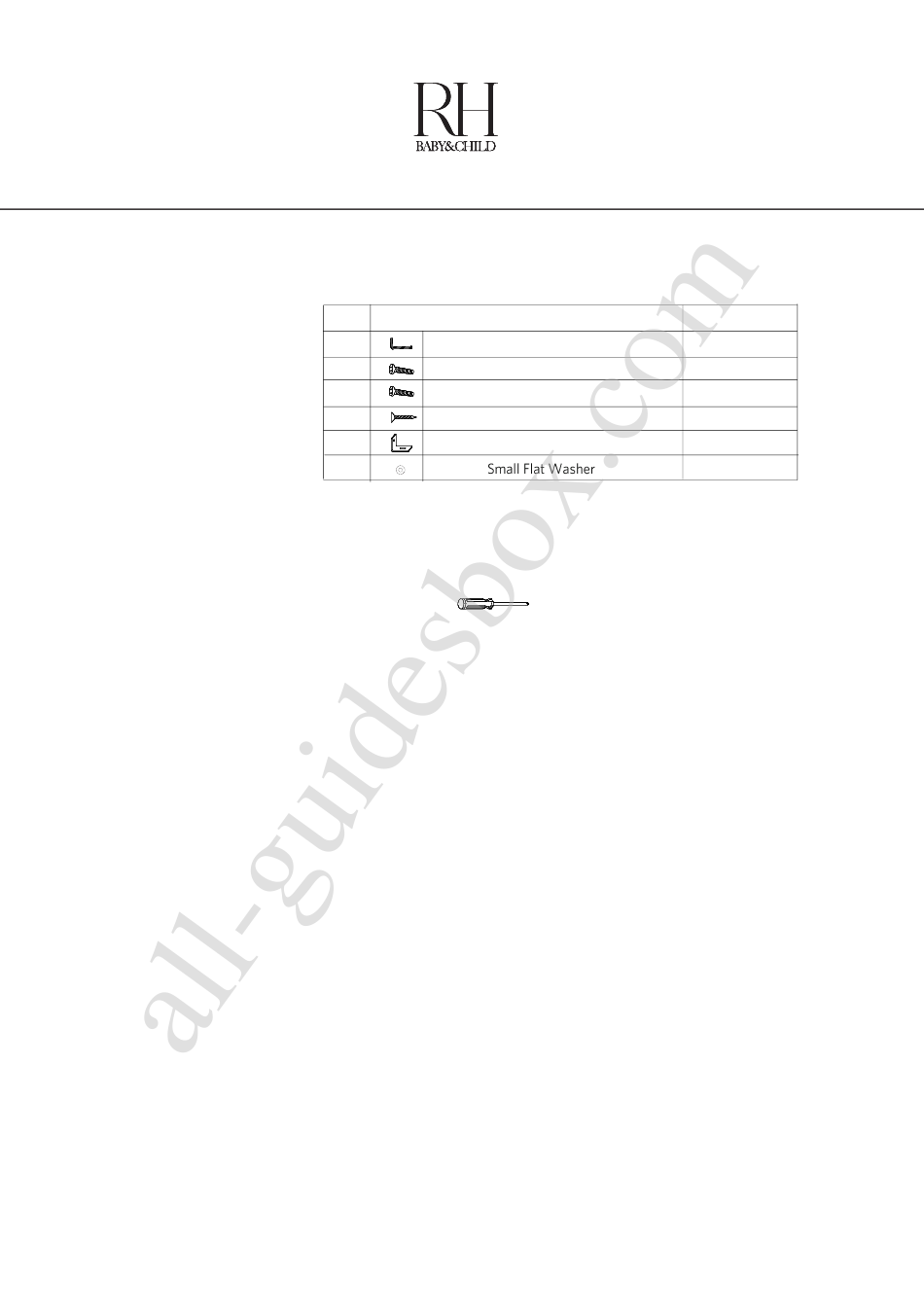

NO. DESCRIPTION
