Summary of Contents for Atlas Copco PHE 16 RL-N

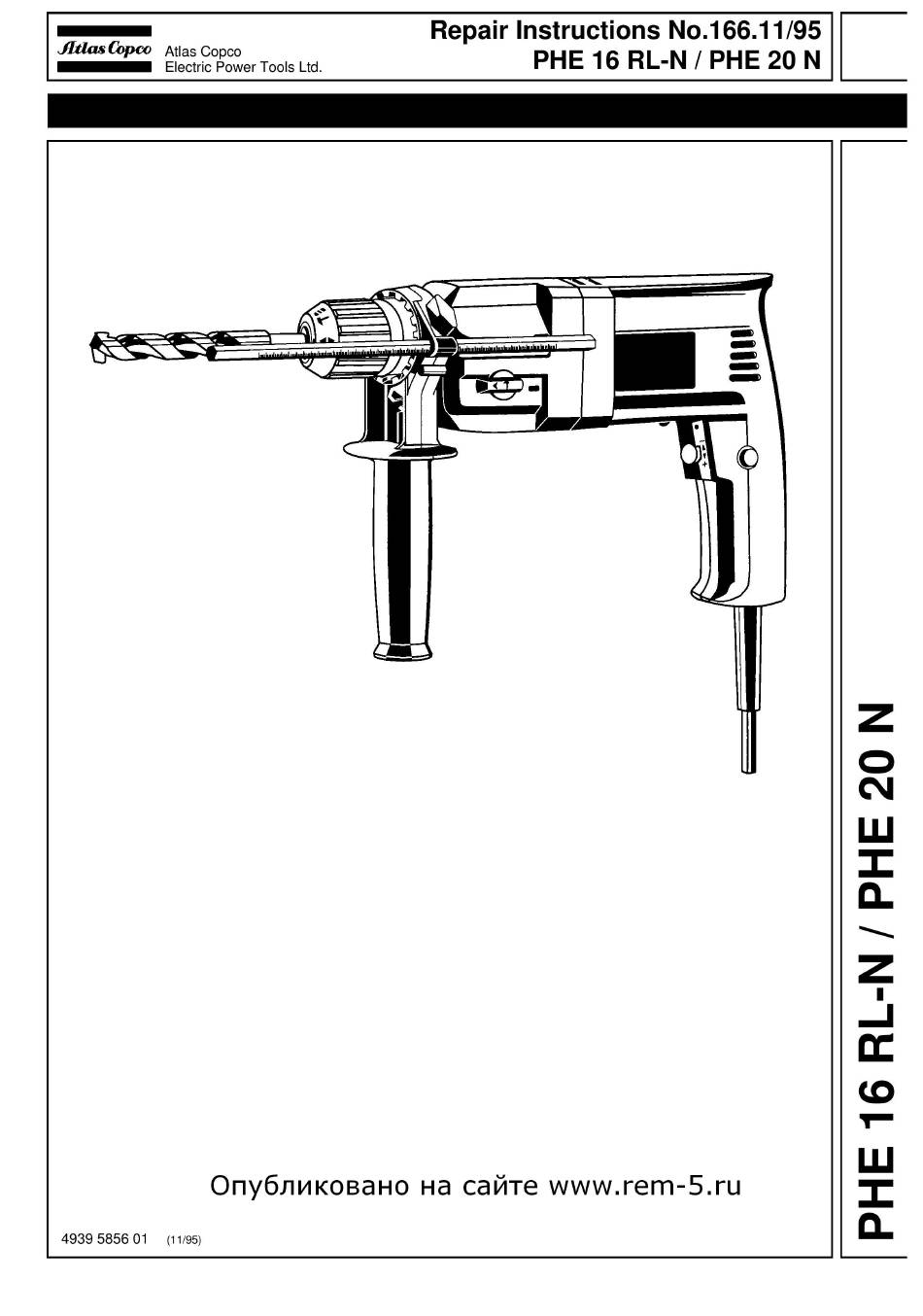

- Page 2 Repair Instructions No.166.11/95 PAGE PHE 16 RL-N / PHE 20 N Special Tools Assembly cone Required Important! Before beginning the maintenance work, perform an initial check with a high voltage test according to VDE (see chapter Electrical and Mechanical Test Instructions).
-
Page 3: Maintenance
Repair Instructions No.166.11/95 PAGE PHE 16 RL-N / PHE 20 N Dismantling the Pull up the reduction gear shaft (4) wobble gear together with the thrust bearing, turn them 90 ° , and pull the wobble gear drive (2) drive from the cylinder. - Page 4 Repair Instructions No.166.11/95 PAGE PHE 16 RL-N / PHE 20 N Lubrication Each time maintenance is performed, the machine is to be lubricates as stated in the lubrication plan. After the machine is fully disassembled, completely remove the old grease and replace with new grea- se.
- Page 5 Repair Instructions No.166.11/95 PAGE PHE 16 RL-N / PHE 20 N Mounting the Mount the brush holder insulations (2) and bearing end plate the carbon brushes (1). Put together the two housing shells and fasten them with screws. Insert the machine into an assembly support.
- Page 6 Repair Instructions No.166.11/95 PAGE PHE 16 RL-N / PHE 20 N Mounting the Mount the six disc springs (2) opposite gear box each other (see illustration). Fasten the gear boy (7) with screws (6). Move the hammer switch lever (1) to the neutral position (30°...
