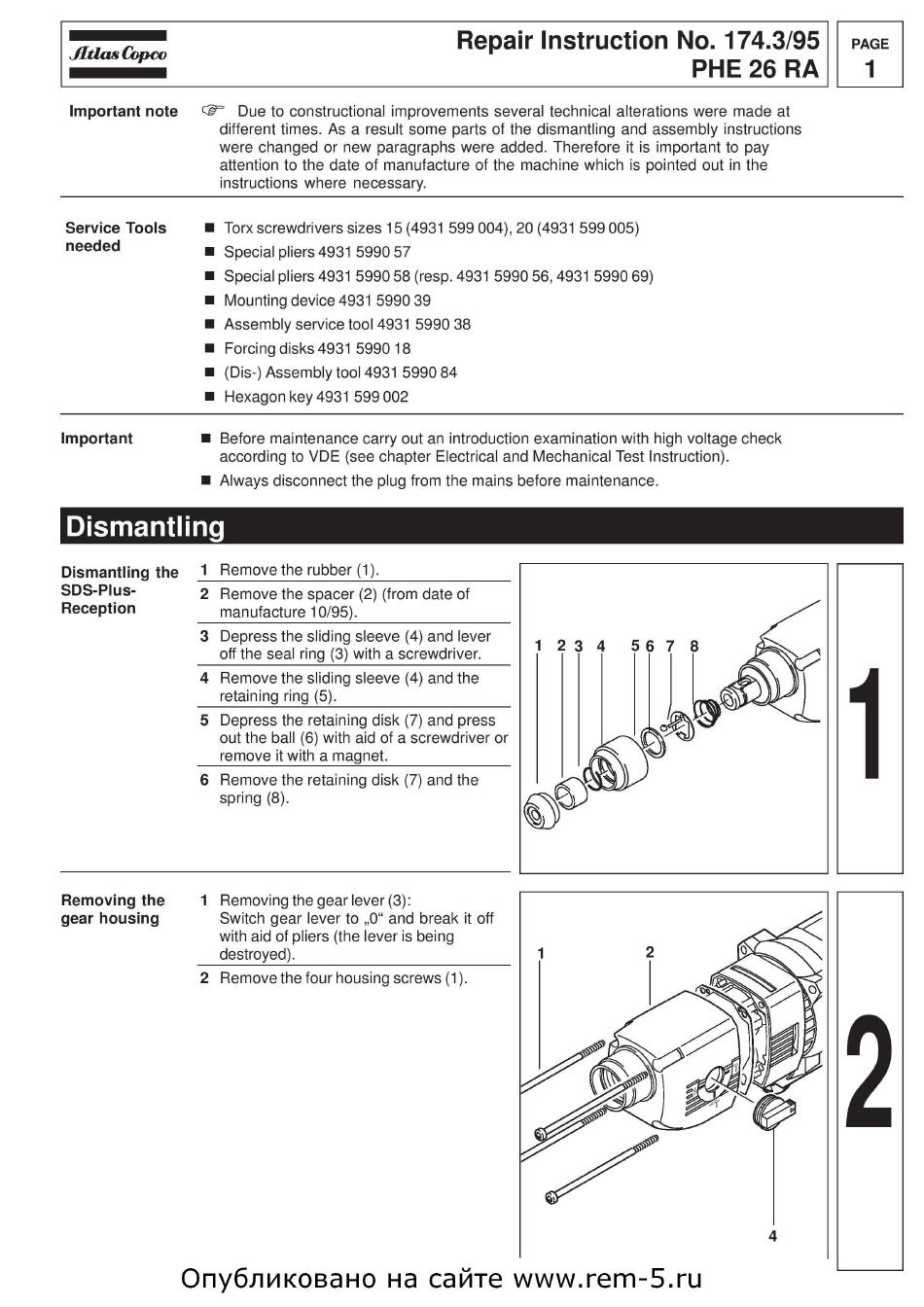

  • Page 2 Repair Instruction No. 174.3/95 PAGE PHE 26 RA Removing the 1 Remove the two screws (1). spindle 2 Remove the straight pin (5). 3 Remove the planetary gear (6) and the ring gear (7). 4 Remove the complete spindle sleeve (2) from the cylinder.
  • Page 3 Repair Instruction No. 174.3/95 PAGE PHE 26 RA Dismantling the Depending on the date of manufacture spindle of the machine there are different ways to (removing the remove the locking ring: inner locking Date of manufacture up to 12/95: ring) Remove the locking ring (2) inside the spindle (1) with aid of special pliers (3).
  • Page 4 Repair Instruction No. 174.3/95 PAGE PHE 26 RA Dismantling the 1 Remove the ring (8). back gear shaft 2 Press off the back gear wheel (7). 3 Remove the remaining parts from the back gear shaft (1): – tumble drive (6) –...
  • Page 5 Repair Instruction No. 174.3/95 PAGE PHE 26 RA Dismantling the 1 Loosen the four screws (1) and remove extraction the front part (3) of the extraction housing housing together with the end shield (2) from the rear part (7) of the extraction housing.
  • Page 6: Maintenance

    When carrying out maintenance all parts of the maintenance set must be exchanged. Use the appropriate maintenance set for each machine: PHE 26 RA 4931 3432 24 (230 V) Cleaning With the exception of the electrical parts all parts must be cleaned with cold cleaner. Attention! No cleaner must enter the encapsulated bearings.
  • Page 7 Repair Instruction No. 174.3/95 PAGE PHE 26 RA Lubrication At each maintenance the tool must be lubricated as shown in the lubrication chart. After having dismantled the entire tool remove the used grease completely and replace it by new grease. Please...
  • Page 8 Repair Instruction No. 174.3/95 PAGE PHE 26 RA Assembly Note Please additionally secure all screwed connections in metal with screw locking device. Mounting the 1 Insert the rubber shell (4). field 2 Insert the centering rails (2) in the field (3).
  • Page 9 Repair Instruction No. 174.3/95 PAGE PHE 26 RA Assembling the 1 Grease the pinion reception (8). extraction 2 Put the thrust piece (9) in the grease. housing Insert the thrust piece as shown in illustration. 3 Insert the rear part (8) of the extraction...
  • Page 10 Repair Instruction No. 174.3/95 PAGE PHE 26 RA Assembling the 1 Push the following parts onto the back back gear shaft gear shaft (3) in this order: Illustration A - washer (4) - spring (5) - coupling box (6) - washer (7)
  • Page 11 Repair Instruction No. 174.3/95 PAGE PHE 26 RA Assembling the From date of manufacture 01/96 the spindle spindle is provided with service borings (mounting the for easy removing of the locking ring (7). inner parts) Older spindles must be exchanged for new ones.
  • Page 12 Repair Instruction No. 174.3/95 PAGE PHE 26 RA Mounting the 1 Fit the gasket (2) to the motor housing (3). gear housing 2 Fasten the gear housing (1) to the motor housing (3) and fix it with screws (2,5+5 Nm).
