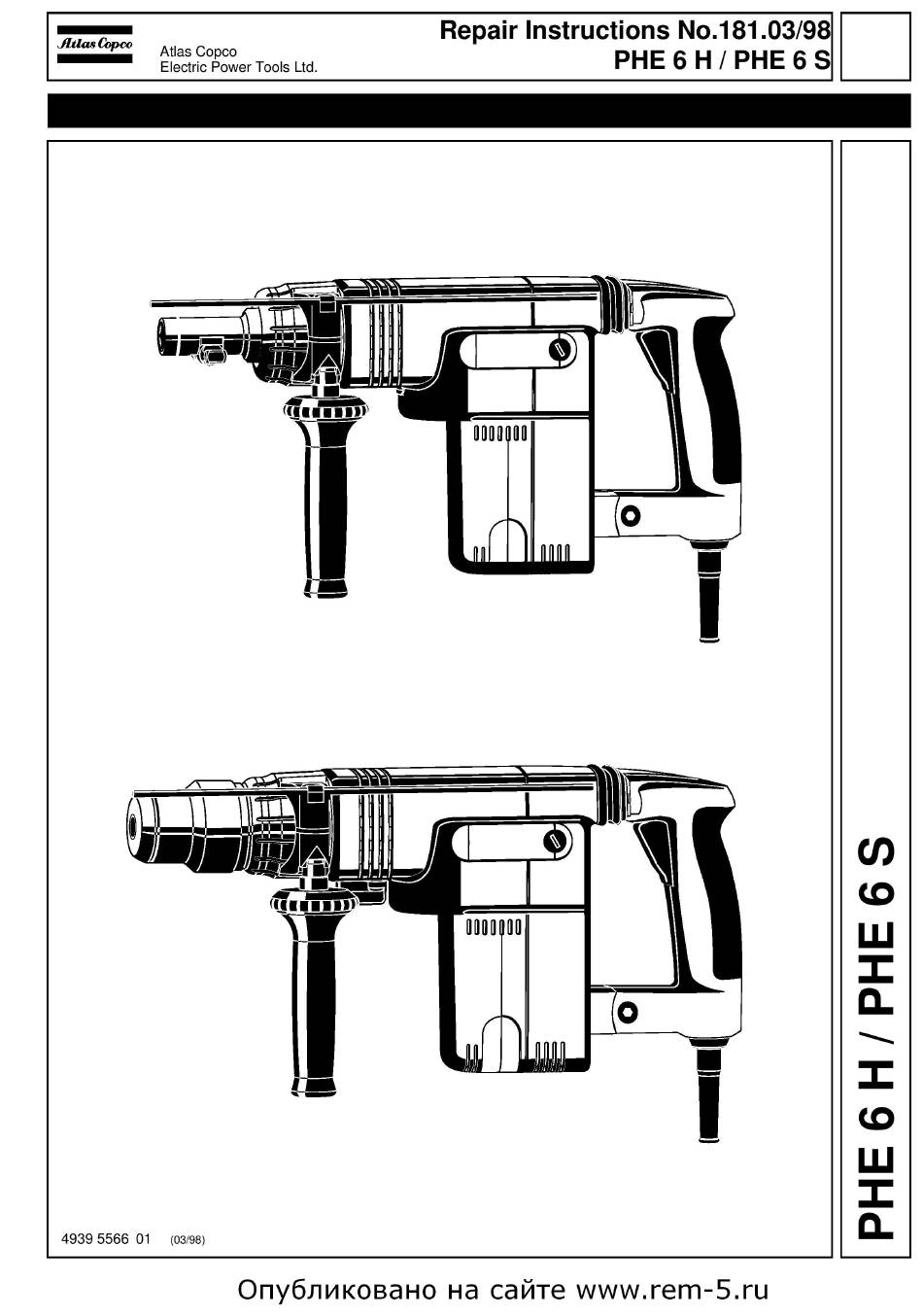

Atlas Copco PHE 6 H Repair Instructions

Atlas Copco PHE 6 H Repair Instructions

Hide thumbs

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the PHE 6 H and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Atlas Copco PHE 6 H

Summary of Contents for Atlas Copco PHE 6 H

  • Page 2 Adjustment tool for carbon brushes 9170 302 270 Pulling-off device 9170 314 440 Tool for dis-/assembly of the spindle (PHE 6 H) 9170 302 260 Important! Before beginning the maintenance work, perform an initial check with a high voltage test according to VDE (see chapter Electrical and Mechanical Test Instructions).
  • Page 3 Repair Instructions No.181.03/98 PAGE PHE 6 H / PHE 6 S Detaching the Loosen the screws (1) and remove the carbon brushes brush covers (2). Lift the brush springs (5) off the respective carbon brushes (3) and place them on the upper edge of the brush holders (4).
  • Page 4 Repair Instructions No.181.03/98 PAGE PHE 6 H / PHE 6 S Detaching the Loosen the two short (A) and the two armature long (D) screws. Remove the motor housing (9) with the field (1) and the air deflector ring (2).
  • Page 5 Repair Instructions No.181.03/98 PAGE PHE 6 H / PHE 6 S PHE 6 H: Loosen both screws (4) and remove the Detaching the back part of the plastic housing (5). bearing housing Remove the plastic housing (1). Loosen the screws (3) and remove the nosepiece (2).
  • Page 6 Repair Instructions No.181.03/98 PAGE PHE 6 H / PHE 6 S PHE 6 H: Fix the service tool (4) in a vice (5). Separating the Insert the driver (2) with the barrel (1) into driver from the the service tool (4) and unscrew the driv-...
  • Page 7 Repair Instructions No.181.03/98 PAGE PHE 6 H / PHE 6 S PHE 6 H: Knock the bevel gear (1) from the gear Detaching the housing (3) with aid of a mandrel (lead the bevel gear mandrel through the opening in the hous- ing).
  • Page 8 Repair Instructions No.181.03/98 PAGE PHE 6 H / PHE 6 S Detaching the Lever off the O-ring (1) and the seal (2). pinion shaft Loosen the six screws (H) of the gear box cover (3) and remove the gear box cover (3) with the gasket (5).

  • Page 9: Maintenance

    Repair Instructions No.181.03/98 PAGE PHE 6 H / PHE 6 S Detaching the Pull the piston (3) from the gear hous- piston and the ing (7). connecting rod Pull the striker (1) from the piston (3) and remove the O-ring (2) from the striker (1).
  • Page 10 Mobil SHC 007 Blue grease (80 g) Mobil HP 22 Torques Screws in plastic 2,5 Nm Screws in metal 4,0 Nm Nut PHE 6 S (see assembly step 8) 120,0 Nm Driver PHE 6 H (see assembly step 10) 30,0 Nm...
  • Page 11 Repair Instructions No.181.03/98 PAGE PHE 6 H / PHE 6 S Assembly PHE 6 S: Press the bearing (1) onto the bevel Mounting the gear (4). Fit the spring washer (2) and cylinder secure it with the spring ring (3).
  • Page 12 Repair Instructions No.181.03/98 PAGE PHE 6 H / PHE 6 S Mounting the Insert the O-ring (6) into the gear hous- crankshaft ing (C). Press the ball bearing (4) onto the crank- shaft (5). Insert the crankshaft (5) into the gear housing from below (C) and fit it to the connecting rod bearing.
  • Page 13 Repair Instructions No.181.03/98 PAGE PHE 6 H / PHE 6 S Mounting the Insert the O-ring (E) into the housing. reduction Press the bearing (D) onto the pinion (F). gear shaft Press the pinion (F) with the bearing (D) into the housing.
  • Page 14 Repair Instructions No.181.03/98 PAGE PHE 6 H / PHE 6 S PHE 6 S: Press the buffer (1) into the spindle Assembling the sleeve (9) using a mandrel. Mind the spindle sleeve right position! Fit the O-rings (2) to the anvil (3) and in- sert the anvil into the spindle sleeve (9).
  • Page 15 Repair Instructions No.181.03/98 PAGE PHE 6 H / PHE 6 S PHE 6 H: Insert a new O-ring (C) into the retainer (5) Assembling the and fit the retainer to the barrel (B). spindle sleeve Grease the anvil (9) and fit two new seal rings (8).
  • Page 16 Repair Instructions No.181.03/98 PAGE PHE 6 H / PHE 6 S PHE 6 H: Press the rotary shaft seal (6) into the Mounting the bearing housing (8). bearing housing Fit the bearing housing (8) with the O-ring (7) to the gear housing and fasten it with secured screws (9).
  • Page 17 Repair Instructions No.181.03/98 PAGE PHE 6 H / PHE 6 S Assembling the Insert the switch (9) with the capacitor into handgrip the handle shell (7). Insert the connecting cable (H) with the cable entry sleeve as well as the cable clamps (D) into the handle shell (7).
  • Page 18 Repair Instructions No.181.03/98 PAGE PHE 6 H / PHE 6 S PHE 6 H: Insert the connecting ring (7). Assembling the Push the strap (A) over the neck of the tool reception machine and tighten it with the bearing bolt (9).

This manual is also suitable for:

Phe 6 s
