Wisenet HCO-7070R Quick Manual

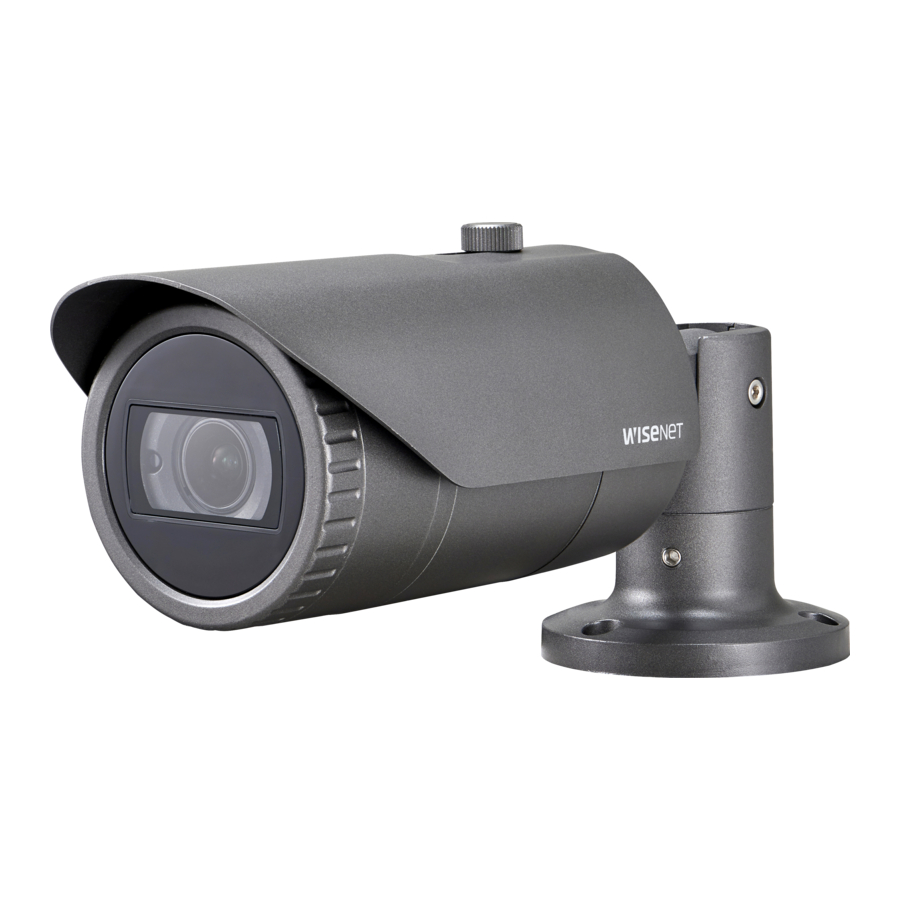

OVERVIEW

OVERVIEW

  1. Camera Sunshield
  2. Knob Sunshield: Fixing the sunshield onto the camera.
  3. Focus lever: Set focus of lens by turn the focus lever
  4. Zoom lever: Set zoom magnification of lens by turn the zoom lever.
  5. Front cover
  6. Function Setup Switch: Display the menu on the screen and move the cursor to four directions to confirm status or after changing a selected item.
    Switching between AHD and CVBS modes: Press the SET button for more than 5 seconds.
  7. Video Output Terminal to Monitor
  8. Function jack (ALARM OUT, GND)
  9. VIDEO OUTPUT jack: Video signals are output through this port. Connect this port to the Video IN port of a AHD DVR.
  10. Power input terminal: Connect the power as specified for each model here.
