Wisenet HCB-6000 HCB-6000PH User Manual

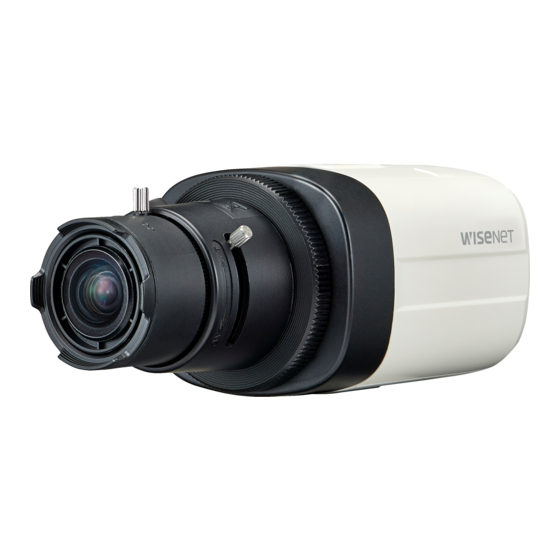

High resolution box camera
Hide thumbs

Advertisement

Quick Links

Download this manual
High Resolution Box Camera
User Manual
HCB-6000
HCB-6000PH

Advertisement

loading
Need help?

Need help?

Do you have a question about the HCB-6000 HCB-6000PH and is the answer not in the manual?

Questions and answers

Related Manuals for Wisenet HCB-6000 HCB-6000PH

Summary of Contents for Wisenet HCB-6000 HCB-6000PH

  • Page 1 High Resolution Box Camera User Manual HCB-6000 HCB-6000PH...
  • Page 2 High Resolution Box Camera User Manual Copyright ©2017 Hanwha Techwin Co., Ltd. All rights reserved. Trademark Each of trademarks herein is registered. The name of this product and other trademarks mentioned in this manual are the registered trademark of their respective company. Restriction Copyright of this document is reserved.
  • Page 3 Before operating the camera, confirm the camera model and correct input power voltage. To help you understand this manual thoroughly, we'll introduce our model description. ■ HCB-6000 SERIES • NTSC MODEL • PAL MODEL HCB-6000N HCB-6000P HCB-6000PH ■ MODEL DESCRIPTION •...
  • Page 4 safety information CAUTION RISK OF ELECTRIC SHOCK. DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. This symbol indicates that dangerous voltage consisting a risk of electric shock is present within this unit.
  • Page 5 6. Do not place conductive objects (e.g. screwdrivers, coins, metal parts, etc.) or containers filled with water on top of the camera. doing so may cause personal injury due to fire, electric shock, or falling objects. 7. Do not install the unit in humid, dusty, or sooty locations. doing so may cause fire or electric shock.
  • Page 6 safety information FCC Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions : 1) This device may not cause harmful interference, and 2) This device must accept any interference received including interference that may cause undesired operation.
  • Page 7 important safety instructions Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with dry cloth. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. Do not install near any heat sources such as radiators, heat registers, or other apparatus (including amplifiers) that produce heat.
  • Page 8 important safety instructions 17. Do not install the product in a place where chemical substances or oil mist exists or may be generated. As edible oils such as soybean oil may damage or warp the product, do not install the product in the kitchen or near the kitchen table. This may cause damage to the product.
  • Page 9 contents INTRODUCTION Features Components and Accessories Overview Lens CONNECTION Connecting to Monitor Connecting to Power Control via RS-485 Interface Using Coaxial Communications CAMERA OPERATION Menu Configuration Menu Setup TROUBLESHOOTING Troubleshooting SPECIFICATIONS Specifications Dimension English_9...
  • Page 10 introduction FEATURES y High Resolution It uses 2.1-megapixel CMOS device to provide a high-definition quality of 1920x1080 resolution. y Excellent Sensitivity The built-in high sensitivity COLOR CMOS produces a clear image. - Color : 0.09Lux (F1.2, 1/30sec) B/W : 0.009Lux (F1.2, 1/30sec) y SSNR4 Function High performance DSP Chip removes noises of GAIN resulting from the low light level and shows a vivid, high definition video even in the dark place.
  • Page 11 - RS-485 Communications : SAMSUNG-T/PELCO-D/PELCO-P/BOSCH/HONEYWELL/ VICON/GE/AD y OSD The camera’s OSD is complimented by 16 languages. - English, Japanese, Spanish, French, Portuguese, Korean, German, Italian, Russian, Polish, Czech, Romanian, Serbian, Swedish, Danish, Turkish. COMPONENTS AND ACCESSORIES Check if the following items are included in the product package. Camera Quick Manual Sheets lens mount...
  • Page 12 introduction OVERVIEW Front View ❶ Tripod Mounting Bracket Screw Hole : ` Used to fix the camera on a bracket. The screw sizes for this hole are as follows. 1/4"-20 UNC (20 THREAD) L:4.5mm±0.2mm (ISO standard), or 0.178" (ASA standard) Lens adaptor : IInstall this if you use the lens.
  • Page 13 Rear View <HCB-6000> VIDEO POWER <HCB-6000PH> POWER VIDEO English_13...
  • Page 14 introduction Function Setup switch Display the menu on the screen and move the cursor to four directions to confi rm ststus or after changing a selected item.  Switching between AHD and CVBS modes: Press the SET button for more than 5 seconds.
  • Page 15 LENS The lens is not supplied with this camera. Purchase a lens suitable for your environment. This camera accepts the auto iris lens and both C-and CS-mount lens. To use the functions of this camera effectively it is recommended that a DC type Auto Iris lens is used.
  • Page 16 introduction When Using a C/CS-Mount lens (Sold separately) Before installing a lens, identify whether the lens to be installed is a C-Mount or CS-Mount. This camera is set for a CS-Mount Lens by default. To install a C-Mount Lens, a simple modification is required.
  • Page 17 y When Using a C-Mount Lens 1. Remove the protective glass cover at the front of this product and turn the C-Mount Adapter clockwise to install it. C-Mount Adapter C-Mount Adapter C-Mount Adapter 2. Turn the C-Mount lens clockwise to install it.
  • Page 18 connection CONNECTING TO MONITOR Refer to the following figure to connect monitors through DVR. ALARM NETWORK BACKUP POWER AHD DVR VIDEO POWE R Monitor HCB-6000 y As the connecting method varies with the instruments, refer to the manual supplied with the instrument. y Only connect the cable when the power is turned off.
  • Page 19 When the resistance value of copper wire is at [20°C(68°F)] Copper wire size (AWG) #24 (0.22mm #22 (0.33mm #20 (0.52mm #18 (0.83mm Resistance value(Ω/m) 0.078 0.050 0.030 0.018 Voltage Drop (V/m) 0.028 0.018 0.011 0.006 y As shown in the table above, voltage decreases as the wire gets longer. Therefore use of an excessively long adaptor output line for connection to the camera may affect the performance of the camera.
  • Page 20 connection USING COAXIAL COMMUNICATIONS y Coaxial Communications System y OSD Control method CAMERA CONTROLLER MENU/ENTER OSD KEY UP KEY JOYSTICK UP DOWN DOWN KEY JOYSTICK DOWN LEFT LEFT KEY JOYSTICK LEFT RIGHT RIGHT KEY JOYSTICK RIGHT ALARM NETWORK BACKUP POWER - Video Cable The camera's video output port is connected to the monitor with a BNC coaxial cable, shown below.
  • Page 21 camera operation MENU CONFIGURATION MAIN SETUP ◦ ◦ ◦ VIDEO FORMAT ◦ CVBS ◦ ◦ ◦ BASIC DAY/NIGHT BACKLIGHT PROFILE ◦ ◦ ◦ INDOOR USER ◦ ◦ ◦ INDOOR OUTDOOR WHITE BAL ◦ ◦ AWC → SET MANUAL ◦ ◦ ◦...
  • Page 22 camera operation MAIN SETUP  1. VIDEO FORMAT Select the Change the status function using 2. PROFILE BASIC using the Function the Function Setup switch. 3. WHITE BAL Setup switch. 4. EXPOSURE 5. BACKLIGHT 6. SPECIAL 7. EXIT SAVE 1. Press the Function Setup switch. y Main SETUP menu is displayed on the monitor screen.
  • Page 23 PROFILE 1. When the SETUP menu screen is MAIN SETUP displayed, select ‘PROFILE’ by using 1. VIDEO FORMAT the Function Setup switch so that the arrow indicates ‘PROFILE’ .  2. PROFILE BASIC 2. Select a desired mode using the 3.
  • Page 24 camera operation White Bal (White Balance) Use the White Balance function to adjust the screen color. 1. When the SETUP menu screen is MAIN SETUP displayed, select ‘White Bal’ by using 1. VIDEO FORMAT the Function Setup switch so that the 2.
  • Page 25 EXPOSURE 1. When the SETUP menu screen is displayed, select ‘EXPOSURE’ by using the Function Setup switch so that the arrow indicates ‘EXPOSURE’ . 2. Select a desired mode using the EXPOSURE SETUP Function Setup switch.  BRIGHTNESS IIIIIIIIII IIIIIIIIII y BRIGHTNESS : Adjusts the video LENS brightness.
  • Page 26 camera operation y AGC (OFF/LOW/MIDDLE/HIGH/VERY HIGH) : The higher the gain level, the brighter the screen - but the greater the noise. y SSNR4 : This function reduces the background noise in a low luminance environment. - OFF : Deactivates SSNR4. Noise is not reduced. - ON : Activates SSNR4 so that noise is reduced.
  • Page 27 y HLC (High Light Compensation) : This function masks the strong light to minimize HLC SETUP white out due to over exposure and preserve much ▶ LEVEL M I D D L E of the on-screen details when the camera aims a LIMIT NIGHT ONLY strong light source.
  • Page 28 camera operation SPECIAL 1. When the SETUP menu screen is MAIN SETUP displayed, select ‘SPECIAL’ by using 1. VIDEO FORMAT the Function Setup switch so that the 2. PROFILE BASIC arrow indicates ‘SPECIAL’ . 3. WHITE BAL 2. Select a desired mode using the 4.
  • Page 29 - FONT COLOR : You can change the OSD font color. (White, Yellow, Green, Red, Blue) - LANGUAGE : You can select the menu language according to your requirements. - RETURN : Return to the SPECIAL menu. y COMM ADJ (Communication Adjustment) : This function sets up the camera communication status when controlling the camera through an external control device.
  • Page 30 camera operation - GAMMA : The setting range is 0.35 ~ 1.0. The closer to 1.0 the setting is, the darker it gets. - PED LEVEL : The setting range is 1 ~ 100. The closer to 100 the setting is, the higher the PED level gets.
  • Page 31 y DWELL TIME : You can select day/night switching delay time from. 3s, 5s, 7s, 10s, 15s, 20s, 30s, 40s, 60s  If you set the AGC mode to off on the exposure menu, you cannot switch the day/night mode to auto. When a bright light source is in the screen or there are frequent brightness changes, if you use the auto night/day mode, and set the switching time to short (3, 5 sec), a hunting can be caused.
  • Page 32 camera operation y PRIVACY: Mask an area you want to hide on the screen. ➊MM I f the SPECIAL menu screen is displayed, use the Function Setup switch so that the arrow indicates ‘PRIVACY’ . ➋MM S elect a desired mode using the PRIVACY AREA Function Setup switch.
  • Page 33 y ALARM OUT : When object ALARM OUT movement is ▶ EXTERNAL detected, the detection signal RETURN will be outputted. ` EXTERNAL : Send signals through external terminals. ` OSD : Display signals on the screen. ` RETURN : Return to the MOTION DET menu. y SENSITIVITY : Set the sensitivity of the motion detection.
  • Page 34 camera operation EXIT Select a desired EXIT mode using the Function Setup switch depending on the camera purpose. y SAVE : Save the current settings and exit the MAIN SETUP menu. y NOT SAVE : Do not save the current settings and exit the MAIN SETUP menu. y RESET : Revert camera to factory settings.
  • Page 35 troubleshooting TROUBLESHOOTING If you have trouble operating your camera, refer to the following table. If the guidelines do not enable you to solve the problem, contact an authorized technician. Problems Troubleshooting Nothing appears on the screen. y Check that the power cord and line connection between the camera and AHD DVR are properly connected.
  • Page 36 specifications SPECIFICATIONS HCB-6000N/P HCB-6000PH Video Imaging Device 1/2.8" 2M CMOS Total Pixels 1,945(H) x 1,109(V) 2.16M pixels Effective Pixels 1,945(H) x 1,097(V) 2.13M pixels Scanning System Progressive Scan Color : 0.09Lux (F1.2, 1/30sec) Min. Illumination B/W : 0.009Lux (F1.2, 1/30sec)" S / N Ratio 52dB (AGC off, Weight on) Video Output...
  • Page 37 HCB-6000N/P HCB-6000PH Remote control interface Coaxial, RS-485 AHD : ACP (AHD Coax Protocol), CVBS : Pelco-C (Coaxitron) CCP (CVI Coax Protocol Protocol), TCP (TVI Coax Protocol) RS-485 : Samsung T, Pelco D/P, Panasonic Bosch, Honeywell, Vicon, GE, AD Video Transmission 500m(5C2V Coaxial Cable) Distance Environmental...
  • Page 38 DIMENSION <HCB-6000> Unit: mm 38_ specifications...
  • Page 39 <HCB-6000PH> Unit: mm English_39...
  • Page 40 MEMO...
