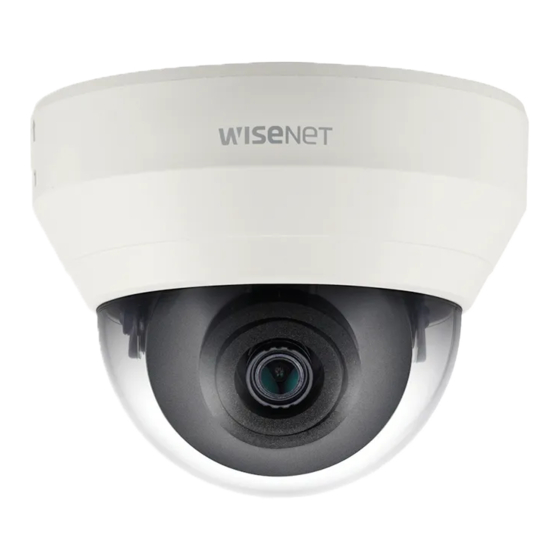

Wisenet SCD-6013 User Manual

High resolution dome camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
High Resolution Dome Camera
User Manual
SCD-6013

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WISENET SCD-6013 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Wisenet WISENET SCD-6013

Summary of Contents for Wisenet WISENET SCD-6013

  • Page 1 High Resolution Dome Camera User Manual SCD-6013...
  • Page 2 High Resolution Dome Camera User Manual Copyright ©2017 Hanwha Techwin Co., Ltd. All rights reserved. Trademark Each of trademarks herein is registered. The name of this product and other trademarks mentioned in this manual are the registered trademark of their respective company. Restriction Copyright of this document is reserved.
  • Page 3 Before operating the camera, confirm the camera model and correct input power voltage. To help you understand this manual thoroughly, we'll introduce our model description. ■ SCD-6013 SERIES • NTSC MODEL • PAL MODEL SCD-6013N SCD-6013P ■ MODEL DESCRIPTION • SCD-6013X _ SIGNAL SYSTEM • SIGNAL SYSTEM N →...
  • Page 4 safety information CAUTION RISK OF ELECTRIC SHOCK. DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. This symbol indicates that dangerous voltage consisting a risk of electric shock is present within this unit.
  • Page 5 6. Do not place conductive objects (e.g. screwdrivers, coins, metal parts, etc.) or containers filled with water on top of the camera. doing so may cause personal injury due to fire, electric shock, or falling objects. 7. Do not install the unit in humid, dusty, or sooty locations. doing so may cause fire or electric shock.
  • Page 6 safety information FCC Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions : 1) This device may not cause harmful interference, and 2) This device must accept any interference received including interference that may cause undesired operation.
  • Page 7 important safety instructions 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean the contaminated area on the product surface with a soft, dry cloth or a damp cloth. (Do not use a detergent or cosmetic products that contain alcohol, solvents or surfactants or oil constituents as they may deform or cause damage to the product.) 7.
  • Page 8 18. When installing the product, be careful not to allow the surface of the product to be stained with chemical substance. Some chemical solvents such as cleaner or adhesives may cause serious damage to the product’s surface. Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus Hanwha Techwin cares for the environment at all product manufacturing stages, and is taking measures to provide customers with more environmentally friendly...

  • Page 9: Table Of Contents

    contents inTroDuCTion Features Components and Accessories Component names and functions insTallaTion Before installation Installation Adjusting the monitoring direction for the camera ConnECTion Connecting to Monitor Connecting to Power Using Coaxial Communications CamEra oPEraTion Menu Configuration Menu Setup TroublEshooTing Troubleshooting sPECifiCaTions Specifications Dimension English_9...

  • Page 10: Introduction

    introduction fEaTurEs y high resolution Use of a 2M pixel CMOS device provides clear pictures with a horizontal resolution of 1000TVL. y Excellent sensitivity The built-in high sensitivity COLOR CMOS produces a clear image. - Color : 0.3Lux (F1.2, 50IRE); 0.1Lux (F1.2, 30IRE) B/W : 0.03Lux (F1.2, 50IRE);...

  • Page 11: Components And Accessories

    ComPonEnTs anD aCCEssoriEs Check if the following items are included in the product package. High Resolution Dome Camera Quick Manual SCD-6013 SCD-6013 Quick Manual Screws Template English_11...

  • Page 12: Component Names And Functions

    introduction ComPonEnT namEs anD funCTions Dome Cover rotate base : control rotating angle of camera. lens module : 2.8mm (F1.8). function setup switch : Display the menu on the screen and move the cursor to four directions to confirm status or after changing a selected item. Pan base : Control panning angle of camera.

  • Page 13: Before Installation

    Installation bEforE insTallaTion Ensure you read out the following instructions before installing the camera: y You have to check whether the location (ceiling or wall) can bear five times the weight of your camera. y Don’t let the cable to be caught in improper place or the electric line cover to be damaged. Otherwise it may cause a breakdown or fire.
  • Page 14 installation 1. Attach the installation template to the selected area and punch 2 holes as shown in the figure. 케이블 구멍 2. Use the 2 supplied screws to fix the camera to the 2 punched holes. ` Set the <TOP FRONT> mark imprinted on the camera to face the direction of camera monitoring.

  • Page 15: Adjusting The Monitoring Direction For The Camera

    aDJusTing ThE moniToring DirECTion for ThE CamEra Tilt Lens rotation ` Adjusting the monitoring direction You can adjust the camera direction only when the camera is fixed on the ceiling. Where, rotating the camera unit to the left or right is called Pan, adjusting the tilt is called Tilt, and turning the lens on its axis is called Rotation.

  • Page 16: Connection 16 16 Connecting To Monitor

    connection ConnECTing To moniTor Connect the Video OUT port on the rear panel of the camera to a AHD DVR. AHD DVR SCD-6013 Monitor y As the connecting method varies with the instruments, refer to the manual supplied with the instrument. y Only connect the cable when the power is turned off.

  • Page 17: Using Coaxial Communications

    When the resistance value of copper wire is at [20°C(68°F)] Copper wire size (AWG) #24 (0.22mm #22 (0.33mm #20 (0.52mm #18 (0.83mm Resistance value(Ω/m) 0.078 0.050 0.030 0.018 Voltage Drop (V/m) 0.028 0.018 0.011 0.006 y As shown in the table above, voltage decreases as the wire gets longer. Therefore use of an excessively long adaptor output line for connection to the camera may affect the performance of the camera.
  • Page 18 connection - Video Cable The camera's video output port is connected to the DVR with a BNC coaxial cable, shown below. Recommended Cable Distance Specification 500m 5C2V Coaxial Cable It is recommended that pure copper coax cable is used and not copper coated steel, as this will cause issues with the communication over the coaxial cable.

  • Page 19: Camera Operation

    camera operation mEnu ConfiguraTion main sETuP ● ● ● BASIC DAY/NIGHT BACKLIGHT PROFILE ● ● ● INDOOR USER ● ● D-WDR ● ● ● OUTDOOR INDOOR WHITE BAL ● ● AWC  SET MANUAL ● ● ● BRIGHTNESS SHUTTER EXPOSURE ●...
  • Page 20 camera operation MAIN SETUP ▶ 1. PROFILE Select the function Change the status BASIC using the Function using the Function 2. D-WDR Setup switch. Setup switch. 3. WHITE BAL 4. EXPOSURE 5. BACKLIGHT 6. SPECIAL 7. EXIT SAVE 1. Press the Function Setup switch. y Main SETUP menu is displayed on the monitor screen.
  • Page 21 y inDoor : It will be set automatically to help you take a picture in a regular indoor lighting condition. y usEr : Automatically configures the camera to your custom settings. 1) Select Custom for Simple Setup mode. 2) Configure the menu options to your custom settings. 3) The settings are automatically saved as Custom mode.
  • Page 22 camera operation In D-WDR mode, there can be noise between a bright and dark area. Depending on light conditions, unnatural changes or symptoms can occur on the screen so deactivate the user mode. White bal (White balance) Use the White Balance function to adjust the screen color. 1.
  • Page 23 White Balance may not work properly under the following conditions. In this case select the AWC mode. Select this When the color temperature of environment surrounding the subject is out of the control range (e.g. clear sky, or sunset) When the ambient illumination of the subject is dim. If the camera is directed towards a fluorescent light or is installed in a place where illumination changes dramatically, the White Balance operation may become unstable.
  • Page 24 camera operation When adjusting the noise reduction level in the SSNR4 mode, remember that the higher the level set, the more the noise level will be reduced, as will the brightness of the image. baCKlighT The camera uses our own chips that are designed to clearly display the object and the background despite severe reverse light.
  • Page 25 sPECial 1. When the SETUP menu screen is displayed, select ‘SPECIAL’ by using the Function Setup switch so that the arrow indicates ‘SPECIAL’. 2. Select a desired mode using the SPECIAL SETUP Function Setup switch. ▶ 1. DISPLAY y DisPlaY COMM ADJ IMAGE ADJ If the SPECIAL menu screen is...
  • Page 26 camera operation - FONT COLOR : You can change the OSD font color. (White, Yellow, Green, Red, Blue) - LANGUAGE : You can select the menu language according to your requirements. - RETURN : Return to the SPECIAL menu. y Comm aDJ (Communication adjustment) : - COAX : You can select whether to COMM SETUP use COAX communication.
  • Page 27 y ViDEo ouTPuT If the SPECIAL menu screen is displayed, use the Function Setup switch so that the arrow indicates ‘VIDEO OUTPUT’. Select a desired mode using the Function Setup switch. - HD : HD Video resolution(1920X1080) - SD : SD Video resolution Please exit the menu and hold the “function setup switch”...
  • Page 28 camera operation y DEfog : You can use the defog mode to allow the camera to automatically detect the fog density of the screen and display a clear image despite smog, fog or general poor visibility. If the SPECIAL menu screen is DEFOG displayed, use the Function Setup ▶...
  • Page 29 y moTion : This product generates signals each time an object movement is detected in the four areas of the screen so efficient monitoring can be achieved. If the SPECIAL menu screen is MOTION DET displayed, use the Function Setup ▶...

  • Page 30: Troubleshooting

    troubleshooting TroublEshooTing If you have trouble operating your camera, refer to the following table. If the guidelines do not enable you to solve the problem, contact an authorized technician. Problems Troubleshooting Nothing appears on the screen. y Check that the power cord and line connection between the camera and monitor are properly connected.
  • Page 31 specifications sPECifiCaTions sCD-6013n sCD-6013P Video 1/3” 2M CMOS Imaging Device 1,956(H) x 1,266(V) 2.47M pixels Total Pixels Effective Pixels 1,944(H) x 1,092(V) 2.12M pixels Scanning System Progressive Scan Horizontal Resolution 1000TVL Color : 0.3Lux (F1.2, 50IRE); 0.1Lux (F1.2, 30IRE) Min. Illumination B/W : 0.03Lux (F1.2, 50IRE);...

  • Page 32: Specifications

    specifications sCD-6013n sCD-6013P Motion Detection Off / On(4 zones) Privacy Masking Off / On (4 zones rectangle) Gain Control Off / Low / Middle / High / Very High White Balance ATW / Outdoor / Indoor / Manual / AWC(1,800K° ~ 10,500K°) Electronic Shutter 1 sec ~ 1/12,000 sec Speed...

  • Page 33: Dimension

    DimEnsion Unit: mm (inch) English_33...
  • Page 34 MEMO...
  • Page 35 Head Office 6, Pangyo-ro 319 beon-gil, Bundang-gu, Seongnam-si, Gyeonggi-do, 463-400 Rep. of KOREA Tel : +82.70.7147.8753 Fax : +82.31.8018.3740 www.hanwha-security.com Hanwha Techwin America 500 Frank W. Burr Blvd. Suite 43 Teaneck, NJ 07666 Toll Free +1.877.213.1222 Direct +1.201.325.6920 Fax +1.201.373.0124 www.hanwha-security.com Hanwha Techwin Europe Heriot House, Heriot Road, Chertsey, Surrey, KT16 9DT, United Kingdom...
