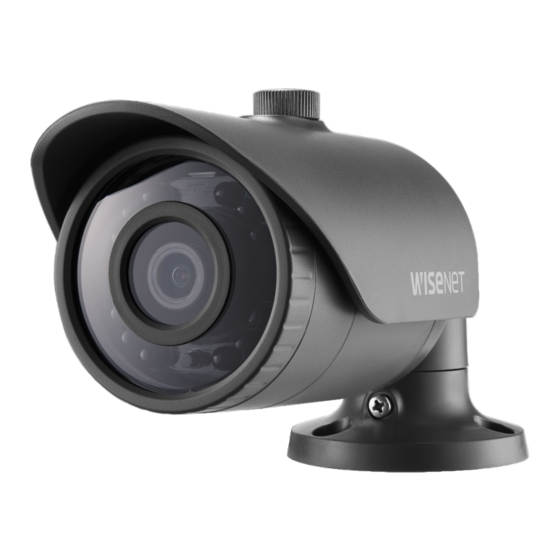

Wisenet HCO-6020R User Manual

High resolution
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
High Resolution Camera
User Manual
HCD-6020R
HCO-6020R

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HCO-6020R and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Wisenet HCO-6020R

Summary of Contents for Wisenet HCO-6020R

  • Page 1 High Resolution Camera User Manual HCD-6020R HCO-6020R...
  • Page 2 High Resolution Camera User Manual Copyright ©2019 Hanwha Techwin Co., Ltd. All rights reserved. Trademark Each of trademarks herein is registered. The name of this product and other trademarks mentioned in this manual are the registered trademark of their respective company. Restriction Copyright of this document is reserved.
  • Page 3 Before operating the camera, confirm the camera model and correct input power voltage. To help you understand this manual thoroughly, we'll introduce our model description. ■ HCD-6020R/HCO-6020R SERIES • NTSC MODEL • PAL MODEL HCD-6020R/XXN HCD-6020R/XXP HCO-6020R/XXN HCO-6020R/XXP ■ MODEL DESCRIPTION •...
  • Page 4 Safety information CAUTION RISK OF ELECTRIC SHOCK. DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. This symbol indicates that dangerous voltage consisting a risk of electric shock is present within this unit.
  • Page 5 2. Do not install in a location subject to high temperature (over 55°C), low temperature (below -10°C(HCO-6020R: -30°C)), or high humidity. Doing so may cause fire or electric shock. 3. If you want to relocate the already installed product, be sure to turn off the power and then move or reinstall it.
  • Page 6 Safety information FCC Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions : 1) This device may not cause harmful interference, and 2) This device must accept any interference received including interference that may cause undesired operation.
  • Page 7 Important safety instructions Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with dry cloth. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. Do not install near any heat sources such as radiators, heat registers, or other apparatus (including amplifiers) that produce heat.
  • Page 8 Important safety instructions 17. Do not install the product in a place where chemical substances or oil mist exists or may be generated. As edible oils such as soybean oil may damage or warp the product, do not install the product in the kitchen or near the kitchen table. This may cause damage to the product.

  • Page 9: Table Of Contents

    Contents INTRODuCTION Features Components and Accessories Component names and functions INSTALLATION Before Installation Installation(HCD-6020R) Adjusting the monitoring direction for the camera(HCD-6020R) CONNECTION Connecting to Monitor Connecting to Power Using Coaxial Communications CAMERA OPERATION Menu Configuration Menu Setup TROubLESHOOTING Troubleshooting SPECIFICATIONS Specifications Dimension English_9...

  • Page 10: Introduction

    Introduction FEATuRES y High Resolution Use of a 2.1 mega pixel CMOS device provides clear pictures with a resolution of 1920x1080. y Excellent Sensitivity - Color : 0.17Lux (F1.6, 1/30sec) B/W : 0Lux(IR LED on) y SSNR4 Function High performance DSP Chip removes noises of GAIN resulting from the low light level and shows a vivid, high definition video even in the dark place.

  • Page 11: Components And Accessories

    COMPONENTS AND ACCESSORIES Check if the following items are included in the product package. <HCD-6020R> Camera Quick Manual Screws Template English_11...
  • Page 12 Introduction <HCO-6020R> Camera Quick Manual Screw Template 12_ introduction...

  • Page 13: Component Names And Functions

    COMPONENT NAMES AND FuNCTIONS HCD-6020R Dome Cover Rotate base : control rotating angle of camera. Lens Module ➌ Function Setup switch : Display the menu on the screen and move the cursor to four directions ➍ to confirm status or after changing a selected item. ...
  • Page 14 Introduction HCO-6020R ➍ ➎ ➌ ➏ Camera Sunshield Knob Sunshield : Fixing the sunshield onto the camera. Front cover ➌ Function Setup Switch : Display the menu on the screen and move the cursor to four ➍ directions to confirm status or after changing a selected item.

  • Page 15: Installation

    Installation bEFORE INSTALLATION Ensure you read out the following instructions before installing the camera: y y You have to check whether the location (ceiling or wall) can bear five times the weight of your camera. y y Don’t let the cable to be caught in improper place or the electric line cover to be damaged. Otherwise it may cause a breakdown or fire.

  • Page 16: Installation(Hcd-6020R)

    Installation INSTALLATION(HCD-6020R) Disassembling 1. Use one hand to hold the camera’s bottom part and turn the cover counterclockwise with another hand to separate it. 16_ Installation...
  • Page 17 Installation 1. Attach the installation template to the selected area and punch 2 holes as shown in the fi gure. 케이블 구멍 2. Use the 2 supplied screws to fi x the camera to the 2 punched holes. y Set the <FRONT> mark imprinted on the camera to face the direction of camera monitoring.

  • Page 18: Adjusting The Monitoring Direction For The Camera(Hcd-6020R)

    ADjuSTING THE MONITORING DIRECTION FOR THE CAMERA(HCD-6020R) Lens rotation Tilt ` Adjusting the monitoring direction You can adjust the camera direction only when the camera is fixed on the ceiling. Where, rotating the camera unit to the left or right is called Pan, adjusting the tilt is called Tilt, and turning the lens on its axis is called Rotation.

  • Page 19: Connection

    CONNECTING TO MONITOR Connect the Video OUT port on the rear panel of the camera to a AHD DVR. HCD-6020R Monitor HCO-6020R Monitor y As the connecting method varies with the instruments, refer to the manual supplied with the instrument.

  • Page 20: Connecting To Power

    Connection CONNECTING TO POwER You can connect power as shown in the following figure. Power Input Terminal HCD-6020R HCO-6020R Power Input Terminal When the resistance value of copper wire is at [20°C(68°F)] Copper wire size (AWG) #24 (0.22mm #22 (0.33mm #20 (0.52mm...

  • Page 21: Using Coaxial Communications

    Be sure to connect power only after all the installation is complete. uSING COAXIAL COMMuNICATIONS y Coaxial Communications System y OSD Control method CAMERA MENU/ENTER UP KEY DOWN DOWN KEY LEFT LEFT KEY RIGHT RIGHT KEY HCD-6020R HCO-6020R English_21...
  • Page 22 Connection - Video Cable The camera's video output port is connected to the DVR with a BNC coaxial cable, shown below. Recommended Cable Distance Specification 500m 5C2V It is recommended that pure copper coax cable is used and not copper coated steel, as this will cause issues with the communication over the coaxial cable.

  • Page 23: Camera Operation

    SPECIAL ◦ ◦ ◦ DAY/NIGHT DEFOG PRIVACY ◦ ◦ MOTION RETURN EXIT ◦ ◦ ◦ SAVE NOT SAVE RESET MENu SETuP For function setting, you can use the function setting switch inside the cover. Function Setup switch <HCD-6020R> <HCO-6020R> English_23...
  • Page 24 Camera operation MAIN SETuP  VIDEO FORMAT Select the Change the status function using PROFILE bASIC using the Function the Function Setup switch. wHITE bAL Setup switch. EXPOSuRE bACKLIGHT SPECIAL EXIT SAVE 1. Press the Function Setup switch. y Main SETUP menu is displayed on the monitor screen. 2.
  • Page 25 PROFILE 1. When the SETUP menu screen is MAIN SETuP displayed, select ‘PROFILE’ by using VIDEO FORMAT the Function Setup switch so that the  PROFILE bASIC arrow indicates ‘PROFILE’ . wHITE bAL 2. Select a desired mode using the EXPOSuRE Function Setup switch according to the picture display you want.
  • Page 26 Camera operation white bal (white balance) Use the White Balance function to adjust the screen color. 1. When the SETUP menu screen is MAIN SETuP displayed, select ‘White Bal’ by using VIDEO FORMAT the Function Setup switch so that the PROFILE bASIC arrow indicates ‘White Bal’...
  • Page 27 EXPOSuRE 1. When the SETUP menu screen is displayed, select ‘EXPOSURE’ by using the Function Setup switch so that the arrow indicates ‘EXPOSURE’ . 2. Select a desired mode using the EXPOSuRE SETuP Function Setup switch.  bRIGHTNESS IIIIIIIIII IIIIIIIIII LENS MANuAL y bRIGHTNESS : Adjusts the video...
  • Page 28 Camera operation y SSDR : SSDR illuminates darker areas of an image while retaining the same light level for brighter areas to even out the overall brightness of images with high contrast between bright and dark areas. - ON : Use the Function Setup switch to change the SSDR level in the sub menu according to the contrast between bright and dark areas.
  • Page 29 y WDR When there are both bright and dark areas at the same time, this mode makes both areas distinctive. - LEVEL : Select one from low, middle, wDR SETuP high to adjust the brightness  LEVEL MIDDLE of the WDR setup. RETuRN <WDR ON>...
  • Page 30 Camera operation SPECIAL 1. When the SETUP menu screen is displayed, select ‘SPECIAL’ by using the Function Setup switch so that the arrow indicates ‘SPECIAL’ . 2. Select a desired mode using the SPECIAL SETuP Function Setup switch. DISPLAY  y DISPLAY COAX If the SPECIAL menu screen is displayed,...
  • Page 31 - FONT COLOR : You can change the OSD font color. (White, Yellow, Green, Red, Blue) - LANGUAGE : You can select the menu language according to your requirements. - RETURN : Return to the SPECIAL menu. y COAX : You can select whether to use COAX communication. y IMAGE ADj ❶...
  • Page 32 Camera operation y DAY/NIGHT: You can display pictures in color or in black and white. If the SPECIAL menu screen is displayed, use the Function Setup switch so that ➊ the arrow indicates ‘DAY/NIGHT’. Select a desired mode using the Function Setup switch according to the picture ➋...
  • Page 33 y DEFOG : You can use the defog mode to allow the camera to automatically detect the fog density of the screen and display a clear image despite smog, fog or general poor visibility. If the SPECIAL menu screen is displayed, use the Function Setup switch so that the ➊...
  • Page 34 Camera operation y MOTION : This product generates signals each MOTION DET time an object movement is detected ▶ DET. AREA in the 4 areas of the screen so efficient ALARM OuT monitoring can be achieved. SENSITIVITY IIIIIIIIII IIIIIIIIII If the SPECIAL menu screen is ➊...
  • Page 35 EXIT Select a desired EXIT mode using the Function Setup switch depending on the camera purpose. y SAVE : Save the current settings and exit the MAIN SETUP menu. y NOT SAVE : Do not save the current settings and exit the MAIN SETUP menu. y RESET : Revert camera to factory settings.

  • Page 36: Troubleshooting

    Troubleshooting TROubLESHOOTING If you have trouble operating your camera, refer to the following table. If the guidelines do not enable you to solve the problem, contact an authorized technician. Problems Troubleshooting y Check that the power cord and line connection between the camera and monitor are properly connected.

  • Page 37: Specifications

    Specifications SPECIFICATIONS HCD-6020R HCO-6020R Video Imaging Device 1/2.8” 2M CMOS Total Pixels 1,945(H) x 1,109(V) 2.16M pixels Effective Pixels 1,945(H) x 1,097(V) 2.13M pixels Scanning System Progressive Scan Color : 0.17Lux (F1.6, 1/30sec) Min. Illumination B/W : 0Lux(IR LED on)

  • Page 38: Specifications

    Specifications HCD-6020R HCO-6020R Gain Control Off / Low / Middle / High / Very High white balance ATW / Outdoor / Indoor(4,500K° ~ 8,500K°) / Manual / AWC (1,800K° ~ 10,500K°) Electronic Shutter Speed 1 sec ~ 1/12,000 sec Reverse...

  • Page 39: Dimension

    DIMENSION Unit: mm (inch) <HCD-6020R> English_39...
  • Page 40 Unit: mm (inch) <HCO-6020R> 40_ specifications...
  • Page 41 Head Office 6, Pangyo-ro 319 beon-gil, Bundang-gu, Seongnam-si, Gyeonggi-do, 463-400 Rep. of KOREA Tel : +82.70.7147.8753 Fax : +82.31.8018.3740 www.hanwha-security.com Hanwha Techwin America 500 Frank W. Burr Blvd. Suite 43 Teaneck, NJ 07666 Toll Free +1.877.213.1222 Direct +1.201.325.6920 Fax +1.201.373.0124 www.hanwha-security.com Hanwha Techwin Europe Heriot House, Heriot Road, Chertsey, Surrey, KT16 9DT, United Kingdom...
