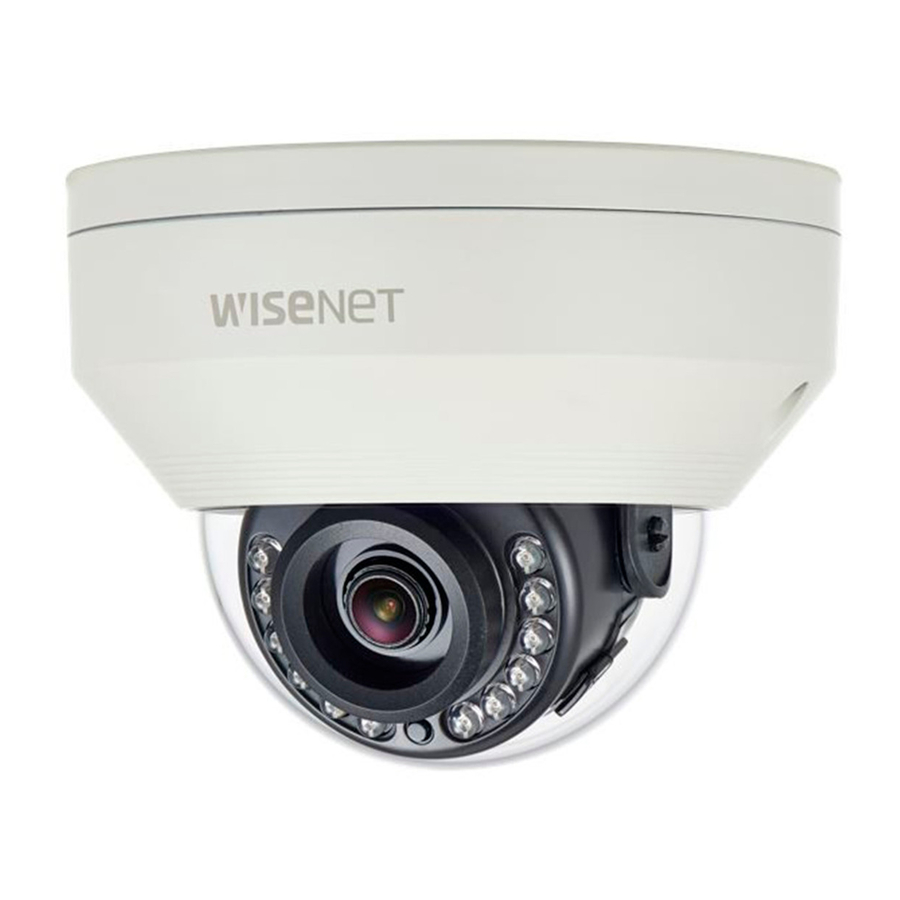

Wisenet HCV-7010R, HCV-7020R, HCV-7030R Quick Set-Up Guide

Overview

1. Dome Cover
2. Rotate Base: Control rotating angle of camera.
3. Lens Module:
   HCV-7010R: 2.8mm(F1.8)
   HCV-7020R: 4.0mm(F2.0)
   HCV-7030R: 6.0mm(F2.0)
4. Function Setup switch: Display the menu on the screen and move the cursor to four directions to confirm status or changing a selected item.
   Switching between AHD and CVBS modes: Press the SET button for more than 5 seconds.
5. Video Output Terminal to Monitor
6. Pan Base: Control panning angle of camera.
7. Power input terminal: Connect the power as specified for each model here.
8. Video Output Jack: Video signals are output through this port. Connect this port to the Video IN port of a AHD DVR.
9. IR LED: These infrared LED's are controlled by the illumination sensor.
10. IIIumination sensor: Detects incoming light to control the IR LED.
