Savant IP Audio 1 Quick Reference Manual

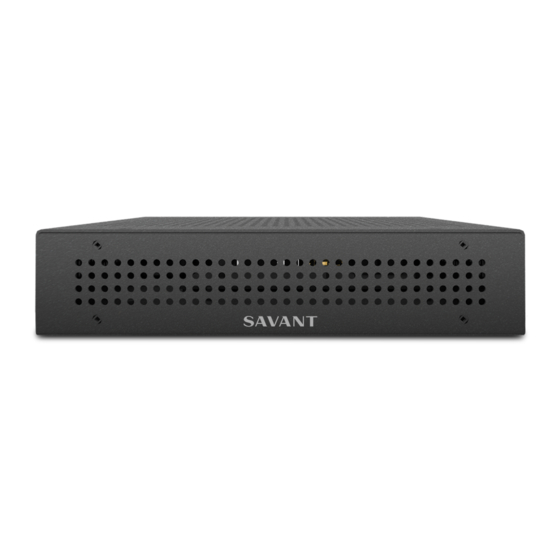

Savant® IP Audio 1 with Integrated Host and Savant Music 2.0
Quick Reference Guide
Box Contents
(1) IP Audio 1 with Integrated Host (HST-SIPA1SM)
Or
IP Audio 1 with Integrated Savant Music [Subordinate]
(PAV-SIPA1SM)
(1) Installation Kit with Mounting Hardware
(1) Speaker connector - 4-pin phoenix connector (028-0702-xx)
(2) 6-pin Screw-down connectors (028-9352-xx)
(4) Mounting bracket screws [M3 x 6mm] (039-0001-xx)
(2) Side-mounting brackets (071-0628-xx)
(1) Power cord C13 - 6 ft (country-specific)
(1) Product Regulatory Insert (009-1950-xx)
Specifications
Environmental
Temperature 32° to 104° F (0° to 40°C)
Humidity 10% to 90% (non-condensing)
Dimensions and Weights
Device
Height 1.70 in (4.34 cm)
Width 7.89 in (20.04 cm)
Depth 7.68 in (19.50 cm)
Weight 3.5 lbs (1.59 kg)
Rack Space 1U; 2 units can be placed side-by-side in a
standard 19" NEMA rack.
Power
Input 100/240V AC (50/60 Hz) 3.6A
Maximum 414W
Operating Parameters
Rated Power 125 WPC at 4/8 ohms (THD+N < 0.1%)
(Speaker Output)
Frequency 20 Hz to 20 kHz (± 0.5 dB), speaker output
Response
Signal-to-Noise >100 dB, speaker output
Ratio (SNR)
Supported Digital 44.1 kHz / 48 kHz / 96 kHz / 192 kHz
Input Format
Networking
Supported IEEE 802.1 AVB/TSN switches
IEEE 802.3 Ethernet
Regulatory
Safety and FCC Part 15 CE
Emissions
RoHS Compliant
Minimum Supported Release
Savant OS da Vinci 9.2
Optional Accessories
The SIPA1SM can be combined with an optional rack-mounting kit
(RMB-SIPA12F-00), which allows 2 units to be installed side-by-side in
a 1U rack mounting. Check the
information.
HST-SIPA1SM/PAV-SIPA1SM QRG | 009-1872-02
Copyright © 2023 Savant Systems, Inc | 230124
Shipping
3.0 in (7.62 cm)
11.75 in (29.85 cm)
11.5 in. (29.21 cm)
5.6 lbs (2.54 kg)
C-Tick UL
Savant Store for details and purchasing

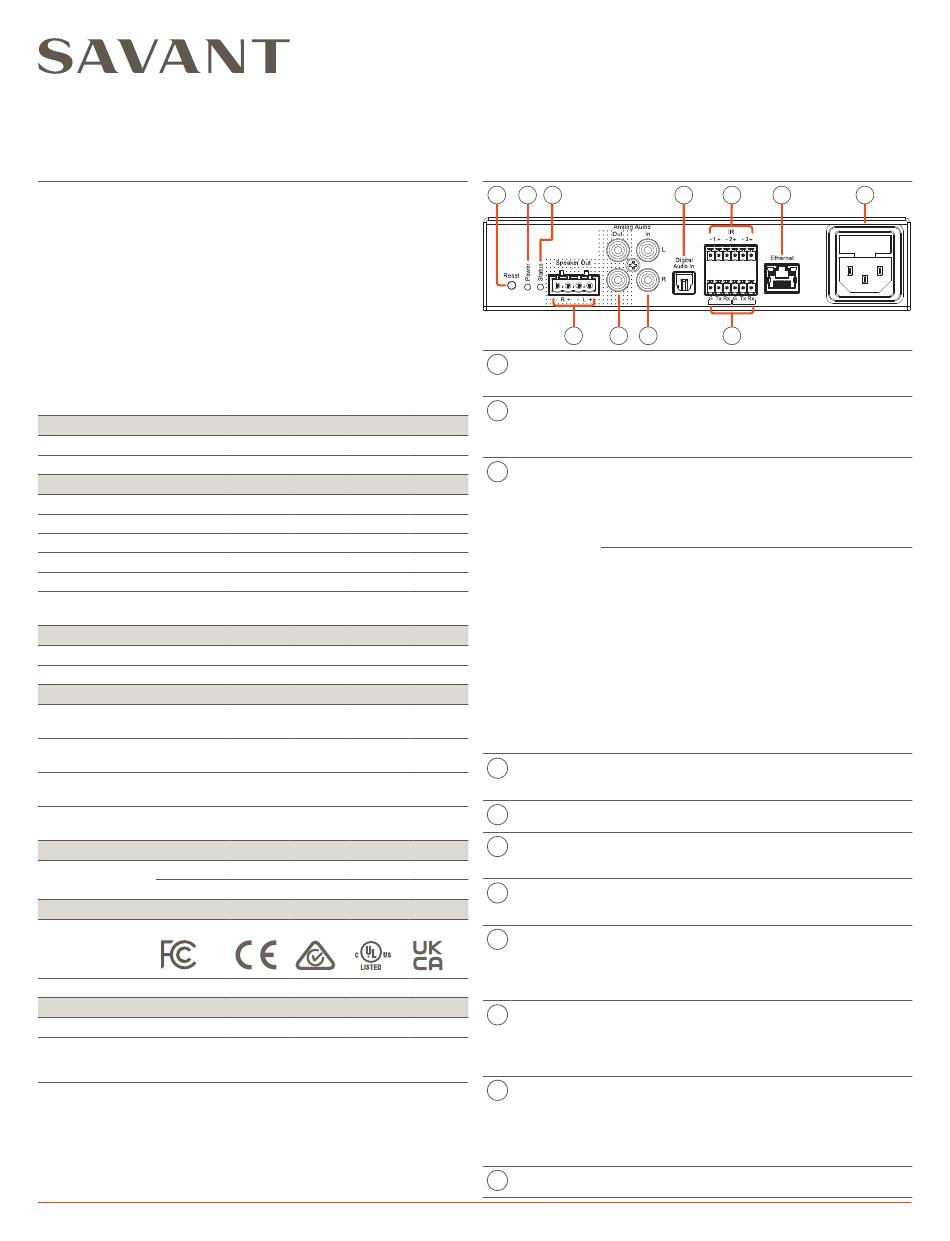

Rear Panel
A B C
D
Reset
A
Power LED
B
Status LED
C
Speaker
D
Output
Analog Audio
E
Output
Analog Audio
F
Input
Digital Audio
G
Input
UKCA
IR Control
H
Ports
Serial Control
I
Ports
Ethernet Port 8-pin RJ-45 auto-negotiating network connection
J
Input Power
K
1 of 2
G H J
E F I
Using a paper-clip or similar, press and hold for
5 seconds to clear statically assigned IP address,
restart unit, and pull IP from DHCP.
Green: Unit has power, operating normally.
Red: Unit in standby mode, most circuitry is
powered down.
Off: Unit not receiving power.
Host Mode
Off: Disconnected from power supply
Green: Connected to the local network and is
assigned an IP Address.
Red: Host is booting/rebooting and is
disconnected from the network
Subordinate Mode (Not functioning as the Host)
Off: Embedded processor resetting or booting
firmware.
Green: Communication with Host established.
Blinking Green: System ready but no
communication with Host.
Red: Firmware update failure, unit will reset.
Red Blinking: Firmware is running but has not
received a DHCP IP address.
Amber: Firmware update in progress.
Blinking Amber: Valid link-local IP address.
Hardware Failure: If hardware failure is detected,
a red blink will interrupt any other status LED
state at 3-second intervals.
Single zone speaker output. Uses included 4-pin
speaker connector.
Supports 8 ohm or 4 ohm speakers.
2-channel preamp analog stereo output (Left and
Right) Direct line-level 2.1-V output.
2-channel analog stereo input (Left and Right)
RCA line-level input 2.1-VRMS in; 22kΩ input
impedance.
Digital optical audio (TOSLink) input. Supports
up to 192kHz/24-bit digital audio in; PCM stereo
format only.
(3x) IR ports - uses 6-pin IR connector to send
IR control signal to devices with IR input or
via IR flasher (5V tolerant only). See IR Wiring
section for important precautions before making
connections.
(2x) RS-232 serial ports used to transmit
and receive serial binary data to/from serial
controllable devices. Utilizes included 6-pin
connector. See Serial Connections section below
for pin-out information.
port. Supports Audio Video Bridging (AVB).
Activity LED: green blinking: activity (Tx/Rx), Off:
no activity.
Link LED: green solid: link established, Off: no link
established.
100/240V AC (50/60 Hz) 3.6A maximum.
Fuse: 250V 5A fast acting fuse; field replaceable.
45 Perseverance Way, Hyannis, MA 02601
Savant.com
K
| 508.683.2500
