Page 1: Configuration Guide

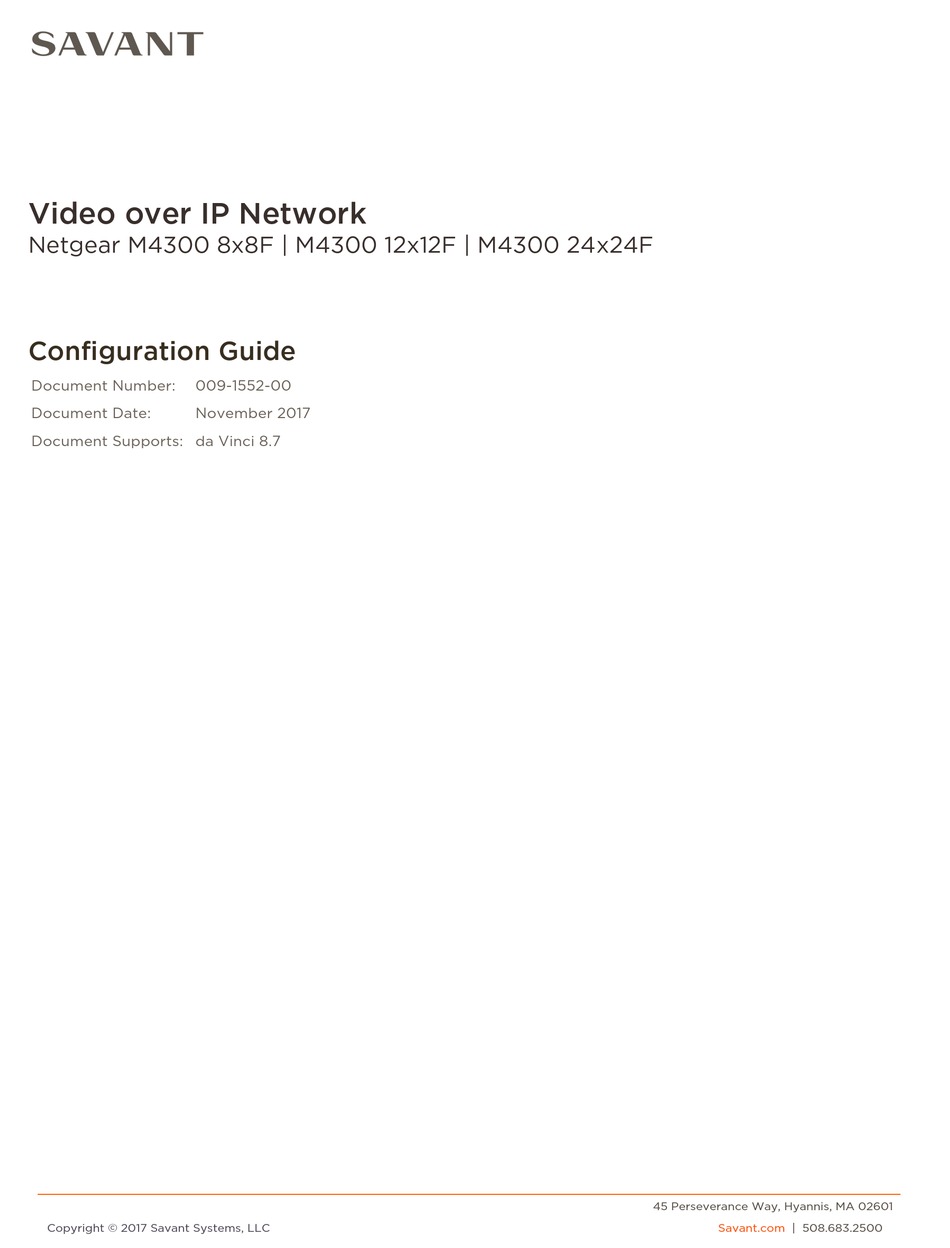

Video over IP Network Netgear M4300 8x8F | M4300 12x12F | M4300 24x24F Configuration Guide Document Number: 009-1552-00 Document Date: November 2017 Document Supports: da Vinci 8.7 45 Perseverance Way, Hyannis, MA 02601 Copyright © 2017 Savant Systems, LLC Savant.com... -
Page 2: Table Of Contents
Multicast ....................................5 Access Control List (ACL) Creation ..........................8 Save Configuration ................................10 Appendix A: 10G Switch Requirements ..................... Appendix B: Static IP ............................Video over IP Network Configuration Guide Copyright © 2017 Savant Systems, LLC 009-1552-00 | 171128... -
Page 3: Overview
This document provides the necessary features/capabilities that any 10G switch needs to have to work correctly with the Savant Video over IP System. It also provides information on how to enable these features for the 10G switches that Savant has qualified. -
Page 4: Switch Configuration (Script)
10. Type: sh ~/Desktop/<NameOfScriptFile>.sh Example: sh ~/Desktop/M4300-24X24F-Config.sh Enter the IP Address of the Netgear switch. Once enter is pressed the script will run and configure the switch. Video over IP Network Configuration Guide Copyright © 2017 Savant Systems, LLC 009-1552-00 | 171128... -
Page 5: Switch Configuration (Manual)
4 Switch Configuration (Manual) This section gives the settings for the Savant qualified Netgear 10G ProSafe M4300 switches. Only the settings needed for the Audio Video over IP environment are described and no other setting are noted. These steps are to be done with the switch at its Factory default settings. - Page 6 Enable Admin Mode, Validate IGMP IP header, and Proxy Querier Mode. Click Apply in the upper right corner of the browser window. Still inside Switching > Multicast, go to IGMP Snooping > IGMP VLAN Configuration. Video over IP Network Configuration Guide Copyright © 2017 Savant Systems, LLC 009-1552-00 | 171128...
- Page 7 12. Still inside Switching > Multicast, go to IGMP Snooping > Interface Configuration. 13. Select all Ports 14. Change Admin Mode to Enabled. 15. Click Apply in the upper right corner of the browser window. Video over IP Network Configuration Guide Copyright © 2017 Savant Systems, LLC 009-1552-00 | 171128...
-
Page 8: Access Control List (Acl) Creation
Select the 101 Hyperlink that is now under “IP ACL ID”. Select Add in the top right corner to start creating rules for ACL 101. Video over IP Network Configuration Guide Copyright © 2017 Savant Systems, LLC 009-1552-00 | 171128... - Page 9 NOTE: This uses a wildcard mask please use the link below to help find the wildcard mask needed for this site. https://www.easycalculation.com/other/subnet-mask-calculator.php Make no other changes Select Apply. Video over IP Network Configuration Guide Copyright © 2017 Savant Systems, LLC 009-1552-00 | 171128...
-
Page 10: Save Configuration
Click Advanced > IP Binding Configuration. 12. Select ACL ID 101 13. Change the Direction to outbound 14. Click the port that this rule is to be applied. Below is a list by model of the Savant recommended port. M4300-8X8F port 9 M4300-12X12F port 13 M4300-24X24F port 25 15. -
Page 11: Appendix A: 10G Switch Requirements
Unregistered Multicast Flooding Disabled. – FASTLEAVE enabled (Optional*). – Enable FASTLEAVE on all ports for the VLAN in use (Optional*). * FASTLEAVE will make changing services faster. Video over IP Network Configuration Guide Copyright © 2017 Savant Systems, LLC 009-1552-00 | 171128... -
Page 12: Appendix B: Static Ip
NOTE: Make sure that the IP Address entered is inside the network IP scheme of the router. 13. Click Apply in the upper right corner of the browser window. Video over IP Network Configuration Guide Copyright © 2017 Savant Systems, LLC 009-1552-00 | 171128... -
Page 13: Important Notice
Savant Systems, LLC. shall not be liable for any technical or editorial errors or omissions contained herein or for incidental or consequential damages resulting from the performance, furnishing, reliance on, or use of this material.
