Savant® IP Audio 1 with Integrated Host and Savant Music 2.0 [HST-SIPA1SM-XX]
Quick Reference Guide
Box Contents
(1x) IP Audio 1 with Integrated Host (HST-SIPA1SM)
(1x) Installation Kit with Mounting Hardware
(1x) Speaker connector - 4-pin phoenix connector
(2x) 6-pin Screw-down connectors
(4x) Mounting bracket screws (M3 x 6mm PH Flat)
(2x) Side-mounting brackets
(1x) Power cord (country-specific) C13 - 6 ft.
(1x) Product Regulatory Insert (009-1871-xx)
Specifications
Environmental
Temperature
32° to 104° F (0° to 40°C)
Humidity
10% to 90% (non-condensing)
Dimensions and Weights
Height
1.70 in (4.34 cm)
Width
7.89 in (20.04 cm)
Depth
7.68 in (19.50 cm)
Net: 3.5 lbs (1.59 kg)
Weight
Shipping: 5.6 lbs (2.54 kg)
1U; 2 units can be placed side-by-side in a
Rack Space
standard 19" NEMA rack.
Power
Input
100/240V AC (50/60 Hz) 3.6A
Maximum
414W
Operating Parameters
Rated Power
125 WPC at 4/8 ohms (THD+N < 0.1%)
(Speaker Output)
Frequency
20 Hz to 20 kHz (± 0.5 dB), speaker output
Response
Signal-to-Noise
>100 dB, speaker output
Ratio (SNR)
Supported Digital
44.1 kHz / 48 kHz / 96 kHz / 192 kHz
Input Format
Networking
IEEE 802.1 AVB/TSN switches
Supported
IEEE 802.3 Ethernet
Regulatory
FCC Part 15
Safety and
Emissions
RoHS
Compliant
Minimum Supported Release
Savant OS
da Vinci 9.2
Optional Accessories
The PAV-SIPA1SM can be combined with an optional rack-mounting kit
(RMB-SIPA12F-00), which allows 2 units to be installed side-by-side in
a 1U rack mounting. Check the
information.
HST-SIPA1SM-xx Quick Reference Guide
009-1872-00 | 190909
CE
C-Tick
Savant Store
for details and purchasing

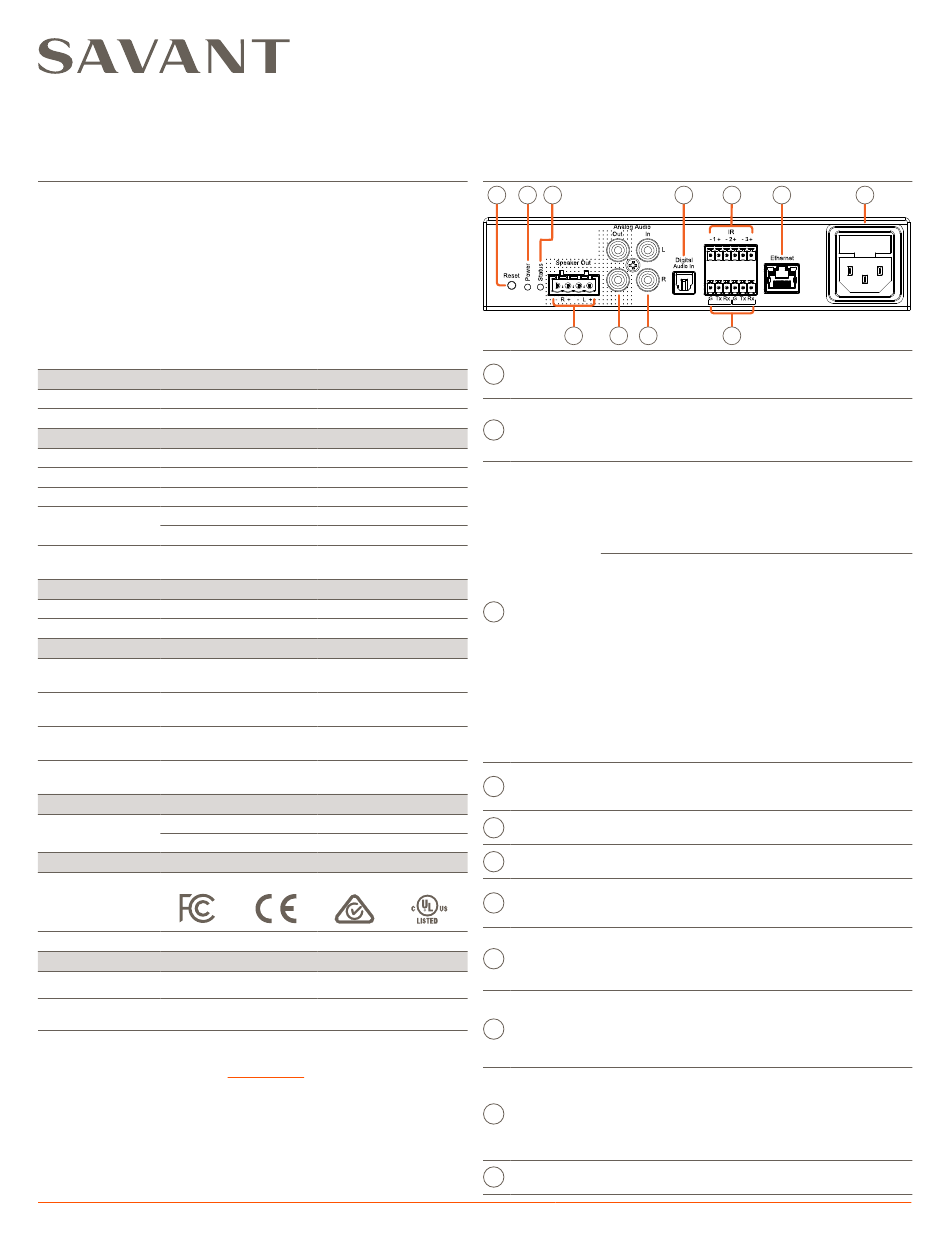

Rear Panel
A
B
C
D
Using a paper-clip or similar, press and hold for
A
Reset
5 seconds to clear statically assigned IP address,
restart unit, and pull IP from DHCP.
Green: Unit has power, operating normally.
Red: Unit in standby mode, most circuitry is
B
Power LED
powered down.
Off: Unit not receiving power.
Host Mode
Subordinate Mode (Not functioning as the Host)
C
Status LED
Single zone speaker output. Uses included 4-pin
Speaker
D
speaker connector.
Output
Supports 8 ohm or 4 ohm speakers.
Analog Audio
2-channel preamp analog stereo output (Left and
E
Output
Right) Direct line-level 2.1-V output.
Analog Audio
2-channel analog stereo input (Left and Right) RCA
F
Input
line-level input 2.1-VRMS in; 22kΩ input impedance.
UL
Digital optical audio (TOSLink) input. Supports
Digital Audio
G
up to 192kHz/24-bit digital audio in; PCM stereo
Input
format only.
(3x) IR ports - uses 6-pin IR connector to send IR
IR Control
control signal to devices with IR input or via IR
H
Ports
flasher (5V tolerant only). See IR Wiring section for
important precautions before making connections.
(2x) RS-232 serial ports used to transmit and
receive serial binary data to/from serial controllable
Serial Control
I
devices. Utilizes included 6-pin connector. See
Ports
Serial Connections section below for pin-out
information.
8-pin RJ-45 auto-negotiating network connection
port. Supports Audio Video Bridging (AVB).
Activity LED: green blinking: activity (Tx/Rx), Off:
J
Ethernet Port
no activity.
Link LED: green solid: link established, Off: no link
established.
100/240V AC (50/60 Hz) 3.6A maximum.
K
Input Power
Fuse: 250V 5A fast acting fuse; field replaceable.
1
of
2
G
H
J
E
F
I
Off: Disconnected from power supply
Green: Connected to the local network and is
assigned an IP Address.
Red: Host is booting/rebooting and is
disconnected from the network
Off: Embedded processor resetting or booting
firmware.
Green: Communication with Host established.
Blinking Green: System ready but no
communication with Host.
Red: Firmware update failure, unit will reset.
Red Blinking: Firmware is running but has not
received a DHCP IP address.
Amber: Firmware update in progress.
Blinking Amber: Valid link-local IP address.
Hardware Failure: If hardware failure is detected,
a red blink will interrupt any other status LED
state at 3-second intervals.
Copyright © 2019 Savant Systems, LLC
