Savant WCD-1 Series Quick Reference Manual

Wi-Fi™ Circa Switch or Dimmer Keypad

Description

The Savant Wi-Fi Circa Switch (WCS-1XXXXX) and the Wi-Fi Circa Dimmer (WCD-1XXXXX)
quick reference guide provides the information necessary to install either Wi-Fi Circa keypad.
The Savant Wi-Fi™ Circa Switch (WCS-1XXXXX) is a
The Wi-Fi Circa switch contains one relay, and functions as a one-gang switch to turn on/off
relay-controlled devices, such as lights, fans, and fireplaces. The Wi-Fi Circa Dimmer functions
wall-box device which provides switch/relay (on/off)
as a single gang forward phase dimmer. These keypads can be combined in gangs up to four in
control of the connected lighting load or relay device
a wall. Both keypad types must have a lighting controller: for example, an SSL-P018 or SSL-
P002 (wired) via a network router, to operate correctly. The SmartConnect Accessory and the
such as lights, fans and fireplaces.
SmartConnect app enable the WCS-1XXXXX or WCD-1XXXXX to be configured with an iOS
user interface. The Savant plastic faceplate is included, by default the same color as the switch
The Savant Wi-Fi™ Circa Dimmer (WCD-1XXXXX) is a
or dimmer.
wall-box device which provides control of a variety of
dimmable forward phase lighting loads such as
incandescent, LED, halogen, fluorescent, compact
fluorescent, cold cathode, and neon. A minimum of
three-watt load can be dimmed.
Connect up to 255 Savant Wi-Fi™ devices (510 lighting
loads) to one powerful Savant SmartLighting Wi-Fi™
controller (WCC-2XXXXX or SSL-W002) or wired (SSL-
P018 or SSL-P002) using a network router.
The Wi-Fi™ Circa switch and dimmer are available in
one, two, and three-button configurations with custom
engraving, backlit options,13 field selectable LED
colors, multiple faceplate finishes in one to four gangs.
All buttons are fully programmable; access any light on
the system, control the system remotely, and save
energy.
The button located in position one, by default acts as a
local control of the load in which it is connected. An air

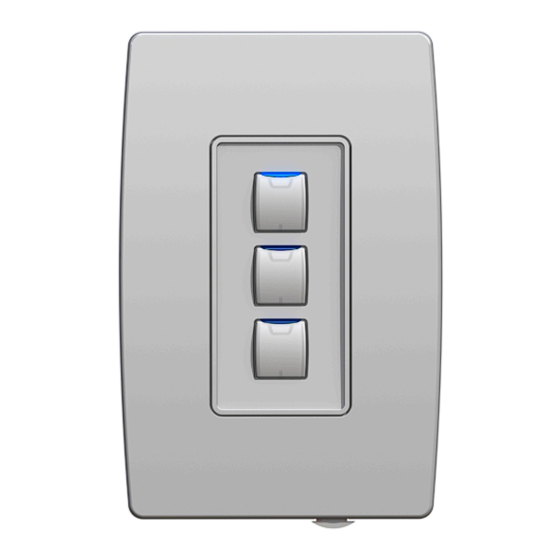

Front View of Three-Button WCS-1XXXXX or WCD-1XXXXX with Faceplate
gap switch (services switch or positive off) is accessible
Box
Contents
at the front of each device and is used to mechanically
(1) WCS-1XXXXX or (1) WCD-1XXXXX
turn the power off when repairing fixtures or changing
(1) Faceplate
(2) 6-32 x1 Flat Phillips Screw (039-0103-xx) bulbs.
(1) Quick Reference Guide (this document)
LiteWare

Optional Components

5.2 or later, is used to create programming files
SmartConnect Accessory (SCA-CONFL)
(PRGs). For systems installed with Savant control and
SmartConnect app
automation components, RacePoint Blueprint™ is used

Specifications

to configure additional Savant Systems equipment and
enable control via Savant's award-winning
Environmental Environmental
TrueControl™ app. iOS control and energy usage
Temperature 32° to 104° F (0° to 40° C)
visibility are available via the SavantLighting™ app.
Humidity 10% to 90% Relative Humidity (non-condensing)
Dimensions with Faceplate Dimensions with Faceplate
Height 4.67 in / 11.87 cm
Width 3.04 in / 7.72 cm
Depth 1.82 in / 4.63 cm
Power Power
Supply 120 V AC 60 Hz
Load Power Load Power
Minimum 3 watts per gang
For the one gang (WCS-1XXXXX or WCD-1XXXXX):
800 watts (for dimmer and relay versions)
•
1 - 1 gang = 800W
2 – 1 gang = 700W ,700W = 1400W
3 – 1 gang = 600W, 600W, 600W = 1800W (Breaker maximum)
Maximum
4 – 1 gang = 450W,450W,450W,450W = 1800W (Breaker maximum)
For the two gang (WCC-2XXXXX):
550 watts per channel (1100 watts total)—the maximum rating for
•
dimmer version (no relay version on two gang)
• If a one-gang and two-gang are used together, assume the
maximum load of each.
Compliance Compliance
FCC Part 15 | CE Mark | C-Tick | UL
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation. Any changes or modifications of this product,
not approved by manufacturer will void the user's authority to operate the
Front of Savant Wi-Fi™ Keypad with Blue Backlighting
equipment.
Safety and
This device complies with Industry Canada license-exempt RSS standard(s).
Emissions
Operation is subject to the following two conditions: (1) this device may not
cause interference, and (2) this device must accept any interference, including
interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux
appareils radio exempts de licence. L'exploitation est autorisée aux deux
conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2)
l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même
082613 009-0976-01
si le brouillage est susceptible d'en compromettre le fonctionnement.
RoHS Compliant
Minimum Requirement: Release LiteWare 5.2.2 Minimum Requirement: Release LiteWare 5.2.2
!
011414
Wi-Fi™ Circa Switch and Dimmer Keypads
® programming and design software, version
Document based upon target specifications. Specifications subject to change prior to final product release.
(WCS-1XXXXX and WCD-1XXXXX)

Quick Reference Guide

Rear View of WCD-1XXXXX or WCS-1XXXXX
• Supports Wi-Fi™ (IEEE 802.11 b/g)
• Circa keypad that functions as a dimmer or a
switch within a SmartLighting configuration
• Ganging wall box dimmers/switches is faster with
alignment plate technology
Load 1
• Ideal for retro-fit installations
Neutral (white)
• Single-gang configurations of one, two, or three
Line (black)
buttons
• Standard and premium faceplate finishes
• Custom engraved buttons: multiple languages
and icons are available
• 13 field-adjustable LED colors are software
configurable
• Controlled by Savant Lighting app or Savant
TrueControl app
Terminal
• Use LiteWare™ to configure lighting in Savant
Load
SmartLighting control system
Neutral
• Use RacePoint Blueprint™ design tool to
Line
integrate into Savant Systems
Ground
Front View of WCD-1XXXXX or WCS-1XXXXX
Front View without Faceplate
Diagnostic LED
Push to Test button
SmartConnect Port
LED Level
Service Switch

Feature Summary

NOTE: Savant recommends a U.S. back
Service Switch Ground (green)
Wire Color Purpose
Black Connects to light/load, fan or fireplace
White Neutral
Black Hot/Live (120 V AC: 12-14 AWG)
Green Ground
Diagnostic LED
Push to Test
Button
SmartConnect
Port
Connector
LED Level
Service Switch
The Service Switch
is used to disconnect
power to the load for
service.
See Diagnostic LEDs on the next page.
Press to test Load
Interface for the SmartConnect Accessory
Rotate wheel to adjust the brightness intensity level of text/icons
Pull down the switch to disconnect power from the keypad and
load for service. Push up the switch to reconnect the power.
009-1002-03
WCS-1XXXXX-00
WCD-1XXXXX-00
Warning: A licensed electrician is
required to install any Savant Circa
Wi-Fi™ keypad.
box with a depth of 3.5 in/8.89 cm.
Minimum depth is 2.5 in/6.35 cm
