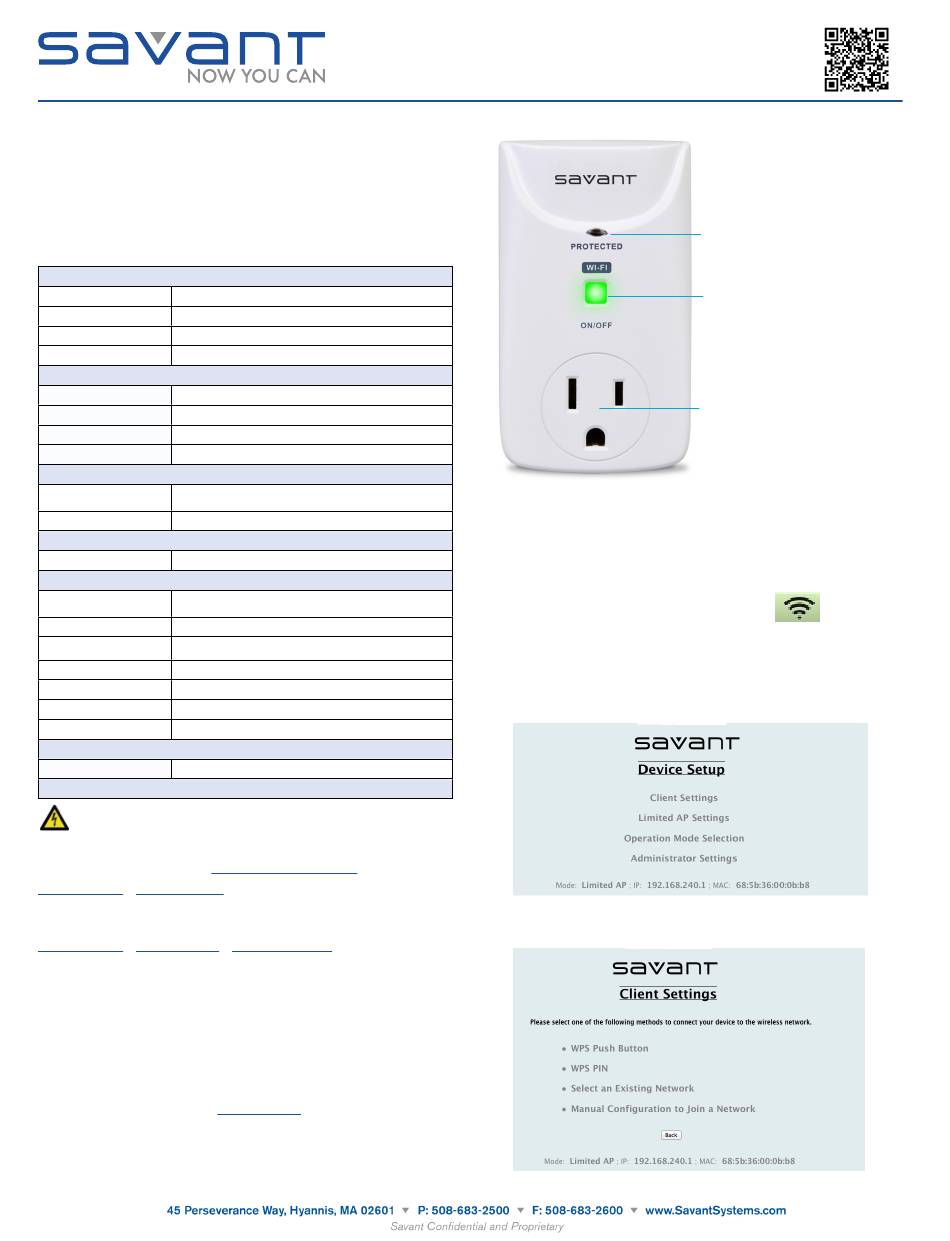

Savant SmartEnergy WPS-0EW120 Quick Reference Manual

The Savant SmartEnergy Wi-Fi Plug-in Switch (WPS-0EW120) Quick Reference
Guide provides all the steps necessary to install the WPS-0EW120.

Box Contents

(1) Wi-Fi SmartEnergy Wi-Fi Plug-in Switch (WPS-0EW120)
Quick Reference Guide (this document)

Required System Component

Host (HST-XXXX or SVR-XXXX if using a Savant System)
Specifications
Environmental Environmental
Temperature 32° to 104° F (0° to 40° C)
Humidity 30% to 80% Relative Humidity (non-condensing)
Maximum BTUs 5 BTUs
Cooling Adequate ventilation (avoid enclosed area)
Dimensions and Weight Dimensions and Weight
Height 3.64 in / 9.24 cm
Width 2.13 in / 5.41 cm
Depth 1.48 in / 3.75 cm
Weight 0.3 lb / 0.12 kg
Power Power
120 VAC, 60 Hz
Input Power
(
uses standard 3 prong IEC C14 connector
Nominal Power 1.5 Watts (without loading)
Performance Performance
Maximum Power 1800 Watts at 15 Amps
Operational Operational
Wireless Link 802.11b/g Wi-Fi compatible
Wireless Range Up to 100 ft open space
Wi-Fi Security WPA/WPA2
Wi-Fi Services Ad-Hoc, only Client, AP
Network Services UDP, TCP/IP, HTTP
Outlet 1 Surge Protected Outlet
Surge Protection 180J
Compliance Compliance
Safety and Emissions UL | FCC Part 15 | FCC ID: YOPGS1011MEPS
Minimum Requirement: Release da Vinci 5.2.3 Minimum Requirement: Release da Vinci 5.2.3
ELECTRIC SHOCK: The 120V AC, 60 Hz source power poses an electric shock hazard
that has the potential to cause serious injury to installers and end-users.
Additional Documentation
Additional documentation is available at
Knowledge Base > Savant Hardware
For details on configuring a SmartEnergy Wi-Fi Plug-in Switch using RacePoint
Blueprint™, see
Knowledge Base > Savant Software

Resetting the SmartEnergy Wi-Fi Plug-in Switch

If you need to remove the network configuration on your SmartEnergy Wi-Fi Plug-
in Switch, or restore the factory default settings, press the the On/Off button for
about 10 seconds until the LED blinks.

IP Address Assignment

Savant recommends that the SmartEnergy Wi-Fi Plug-in Switch IP address be
reserved in the DHCP server so that the SmartEnergy Wi-Fi Plug-in Switch will
always get the same DHCP address when a power cycle is performed. To ensure
that the IP address of the SmartEnergy Wi-Fi Plug-in Switch is reserved
permanently in the DHCP server, you must configure a DHCP reservation in your
DHCP server. If you prefer to use a

Best Practice

Savant recommends you configure one SmartEnergy Wi-Fi Plug-in Switch at a
time.
009-1091-01
WPS-0EW120-00
SmartEnergy Wi-Fi
)
dealers.SavantSystems.com
> RacePoint Blueprint
static IP address, see the next page.
® Plug-in Switch
(WPS-0EW120)
Quick Reference Guide
Front View of WPS-0EW120
Configuring SmartEnergy Switch Using the Web Interface
To access the Web user interface, the MAC address of the SmartEnergy Wi-Fi
Plug-in Switch is required. This can be found on a sticker affixed to the back of the
SmartEnergy Wi-Fi Plug-in Switch.
To configure a WPS-0EW120 using a Web interface, do the following.
1. On the menu bar of your SDE, select the Wi-Fi icon:
2. View the wireless networks.
3. Select the SmartEnergy Wi-Fi Plug-in Switch network, which is denoted by the
last six digits of the MAC ID with a PT_ prefix—for example, PT_000BB8.
Wait for the device to connect to the network.
4. Open a Savant-supported Web browser.
5. Enter 192.168.240.1/gsprov.html in the address bar.
The Device Setup Web page will display.
6. Click Client Settings.
7. Click Select an Existing Network.
Download a QR scanner to
your smartphone and scan this
code (left) for more product
information.
Surge Protected LED
On/Off button
(also used for
restoring default
settings)
Surge Protected Outlet
1 of 2
