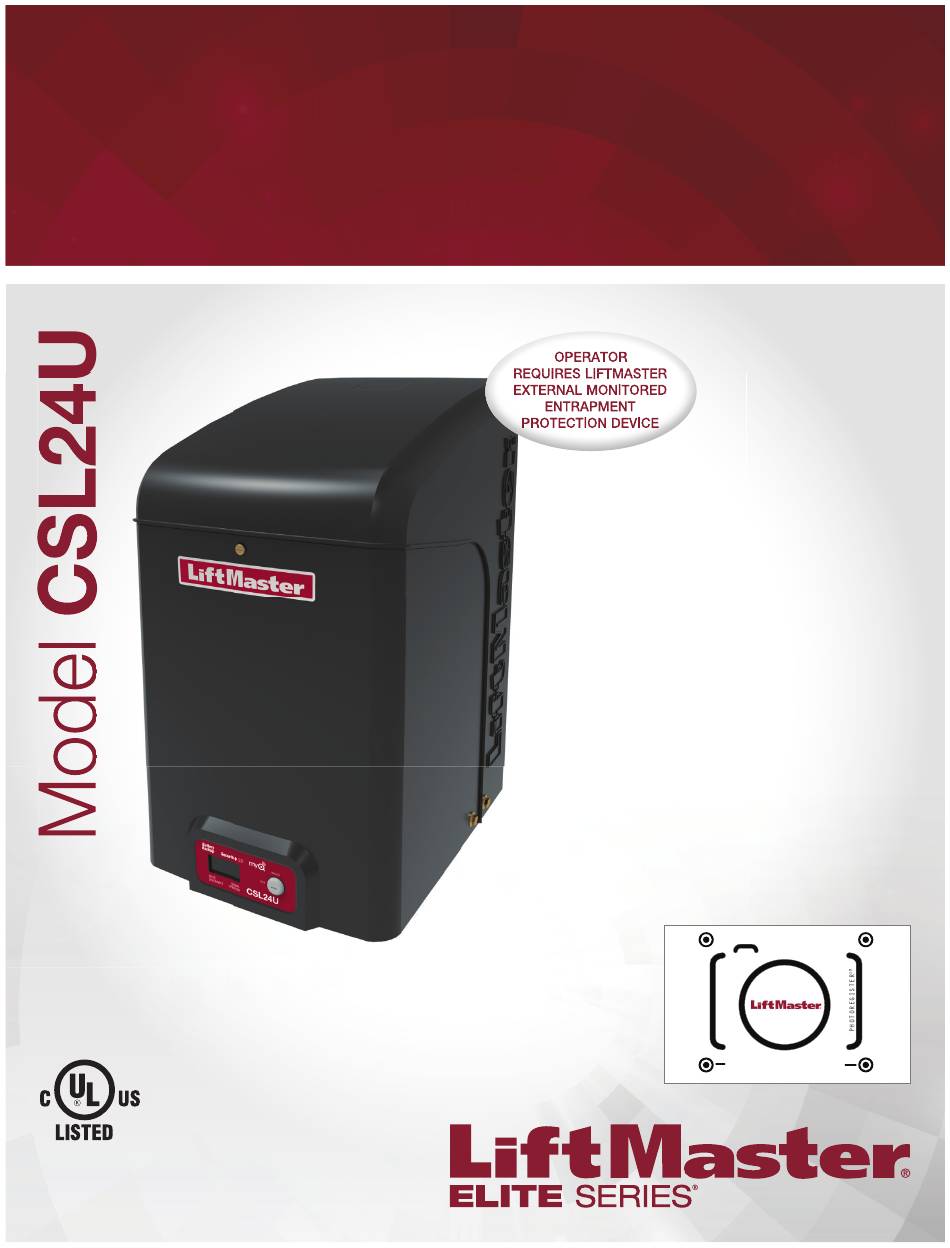

VEHICULAR SLIDE GATE OPERATOR
LiftMaster
300 Windsor Drive
Oakbrook, IL 60523
COMMERCIAL DC
INSTALLATION MANUAL
• THIS PRODUCT IS TO BE INSTALLED
AND SERVICED BY A TRAINED GATE
SYSTEMS TECHNICIAN ONLY.
• This model is for use on vehicular
passage gates ONLY and not intended for
use on pedestrian passage gates.
• This model is intended for use in Class I,
II, III and IV vehicular slide gate
applications.
• Visit LiftMaster.com to locate a
professional installing dealer in your area.
• This gate operator is compatible with
MyQ
and Security+ 2.0
®
CSL24UTECH
accessories.
®
Advertisement
Table of Contents
Troubleshooting
Related Manuals for Chamberlain CSL24U
Summary of Contents for Chamberlain CSL24U
- Page 1 COMMERCIAL DC VEHICULAR SLIDE GATE OPERATOR INSTALLATION MANUAL • THIS PRODUCT IS TO BE INSTALLED AND SERVICED BY A TRAINED GATE SYSTEMS TECHNICIAN ONLY. • This model is for use on vehicular passage gates ONLY and not intended for use on pedestrian passage gates. •...
- Page 2 COMMERCIAL DC VEHICULAR SLIDE GATE OPERATOR INSTALLATION MANUAL • THIS PRODUCT IS TO BE INSTALLED AND SERVICED BY A TRAINED GATE SYSTEMS TECHNICIAN ONLY. • This model is for use on vehicular passage gates ONLY and not intended for use on pedestrian passage gates. •...
-
Page 3: Table Of Contents
TABLE OF CONTENTS SAFETY OPERATION SAFETY SYMBOL AND SIGNAL WORD REVIEW ........1 GATE OPERATOR SETUP EXAMPLES ..........27 USAGE CLASS ..................2 CONTROL BOARD OVERVIEW .............28 UL325 ENTRAPMENT PROTECTION REQUIREMENTS ......2 MANUAL DISCONNECT ...............29 SAFETY INSTALLATION INFORMATION ..........3 RESET SWITCH ...................29 GATE CONSTRUCTION INFORMATION ..........4 OPERATOR ALARM ................29 REMOTE CONTROL ................29 INTRODUCTION... -
Page 4: Usage Class
SAFETY WARNING: This product can expose you to chemicals including lead, which are known to the State of California to cause cancer or birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov USAGE CLASS CLASS I – RESIDENTIAL VEHICULAR GATE OPERATOR A vehicular gate operator (or system) intended for use in garages or parking areas associated with a residence of one-to four single families. -
Page 5: Safety Installation Information
SAFETY SAFETY INSTALLATION INFORMATION Vehicular gate systems provide convenience and security. Gate The Stop and/or Reset (if provided separately) must be located in systems are comprised of many component parts. The gate the line-of-sight of the gate. Activation of the reset control shall not operator is only one component. -
Page 6: Gate Construction Information
SAFETY GATE CONSTRUCTION INFORMATION Vehicular gates should be installed in accordance with ASTM F2200: Standard Specification for Automated Vehicular Gate Construction. For a copy, contact ASTM directly at 610-832-9585 or www.astm.org. GENERAL REQUIREMENTS 3.1.2 All openings shall be designed, guarded, or screened from the bottom of the gate to the top of the gate or a minimum of 72 in. -
Page 7: Introduction
INTRODUCTION CARTON INVENTORY NOT SHOWN: Documentation Packet, Chain #41 - 30 feet, Eye Bolt Kit Warning Signs (2) and Warranty Card Cover Operator Battery 12 Vdc 7AH (2) Battery Tray Key (2) LiftMaster Monitored Retro-Reflective Photoelectric Sensor... -
Page 8: Operator Specifications
INTRODUCTION OPERATOR SPECIFICATIONS This model is intended for use in vehicular slide gate applications: Usage Classification Class I, II, III, & IV Main AC Supply 120 Vac, 4 Amps (10 Amps including Accessory Outlets) 240 Vac, 2 Amps When Optional Transformer Kit Model 3PHCONV is installed in the field, operator is rated 208/240/480/575 VAC, 4.8/4.2/2.1/1.7 A, 60 Hz, 1 PH System Operating Voltage 24 Vdc Transformer Run / Battery Backup... -
Page 9: Site Preparation
INTRODUCTION SITE PREPARATION Check the national and local building codes BEFORE installation. CONDUIT & CONCRETE PAD SAFETY Entrapment protection devices are required to protect against any Conduit must be UL approved for low and high voltage. Consider entrapment or safety conditions encountered in your gate the operator placement BEFORE installing the pad or post. -
Page 10: Overview Of Typical Installation
INTRODUCTION OVERVIEW OF TYPICAL INSTALLATION NOTE: One or more non-contact sensors shall be located where the risk of entrapment or obstruction exists at either the opening or closing direction. Care shall be exercised to reduce the risk of nuisance tripping, such as when a vehicle, trips the sensor while the gate is still moving. Any gap between the gate and a fixed object such as a wall, pillar, column or the operator itself larger than 2 1/4 inches (5.7 cm) must be filled. -
Page 11: Installation
INSTALLATION • To AVOID damaging gas, power or other underground utility lines, • ALWAYS wear protective gloves and eye protection when changing contact underground utility locating companies BEFORE digging the battery or working around the battery compartment. more than 18 inches (46 cm) deep. TYPES OF INSTALLATIONS STANDARD INSTALLATION REAR INSTALLATION... -
Page 12: Determine Location For Concrete Pad And Operator
INSTALLATION STEP 1 DETERMINE LOCATION FOR CONCRETE PAD AND OPERATOR Check the national and local building codes before installation. STANDARD INSTALLATION 1. The gate operator should be installed near the front roller of the gate. Lay out the concrete pad. 2. -
Page 13: Install The Operator
INSTALLATION STEP 2 INSTALL THE OPERATOR Attach the operator to the concrete pad with appropriate fasteners. The gate operator should be installed near the front roller of the gate or near the back of the gate (in the OPEN position). The space between the gate and the output sprocket must be a minimum of 4 inches (10.2 cm). NOTE: An alternative to a concrete pad is to post mount the operator (refer to accessories). -
Page 14: Attach The Chain
INSTALLATION STEP 3 ATTACH THE CHAIN STANDARD INSTALLATION DO NOT run the operator until instructed. 1. Manually open the gate and line up the front bracket so the chain will be level with the idler pulley and parallel to the ground. Weld the front bracket in this position. - Page 15 INSTALLATION STEP 3 continued... ATTACH THE CHAIN REAR INSTALLATION DO NOT run the operator until instructed. NOTE: This installation will require two extra idler pulleys. Make sure all exposed pinch points are guarded. Refer to Gate Construction Information on page 4. 1.
-
Page 16: Install Entrapment Protection
INSTALLATION To prevent SERIOUS INJURY or DEATH from a moving gate: • Locate entrapment protection devices to protect in BOTH the open • ALL gate operator systems REQUIRE two independent entrapment and close gate cycles. protection systems for each entrapment zone. •... - Page 17 INSTALLATION STEP 4 continued... INSTALL ENTRAPMENT PROTECTION There are three options for wiring the entrapment protection devices depending on the specific device and how the device will function. Refer to the specific entrapment protection device manual for more information. These entrapment protection device inputs are for monitored devices, which include pulsed photoelectric sensors, resistive edge sensors, and pulsed edge sensors.
-
Page 18: Earth Ground Rod
INSTALLATION STEP 5 To Operator EARTH GROUND ROD Use the proper earth ground rod for your local area. The ground wire must be a single, whole piece of wire. Never splice two wires for the ground wire. If you should cut the ground wire too short, break it, or destroy its integrity, replace it with a single wire length. - Page 19 INSTALLATION STEP 6 continued... POWER WIRING 240 VAC ONLY The accessory outlet is disabled and cannot be used with the 240 Vac option. 1. Remove the outlet housing from the electrical box by removing the screws (2). 2. Pull the outlet housing out and locate the power wiring connector on the EMI board. 3.
-
Page 20: Ac Power Switch
INSTALLATION STEP 6 continued... AC POWER SWITCH The AC Power switch on the operator will turn the incoming 120/240 Vac power ON or OFF. The operator's AC Power switch ONLY turns off AC power to the control board and DOES NOT turn off battery power. AC Power Switch STEP 7 CONNECT BATTERIES... - Page 21 INSTALLATION STEP 7 continued... CONNECT BATTERIES 33AH BATTERIES The batteries are charged in the circuit by the integrated transformer. The batteries are for battery backup or solar installation. The 33AH application requires the Solar Harness Kit (Model K94-37236). NOTE: If 33AH batteries (2) are used, the battery tray underneath the heater will need to be removed to allow more space in the enclosure (if applicable).
-
Page 22: Dual Gates Only
INSTALLATION STEP 8 DUAL GATES ONLY There are two options for dual gate communication: wired or wireless. Follow the directions according to your application. Do not use wired and wireless communication simultaneously. Wired dual gate applications will have a longer battery standby time than wireless applications. WIRELESS DUAL GATES TO ACTIVATE THE WIRELESS FEATURE: 1. - Page 23 INSTALLATION STEP 8 continued... DUAL GATE WIRE TYPE (SHIELDED TWISTED PAIR CABLE) 22AWG up to 200 feet (61 m) 18AWG - 200-1000 feet (61-305 m) DUAL GATES ONLY Wire must be rated at 30 Volt minimum WIRED DUAL GATES Before digging, contact local underground utility locating companies. Use PVC conduit to prevent damage to cables. Disconnect ALL power to the operator and unplug the J15 plug from the control board.
-
Page 24: Install The Cover
INSTALLATION STEP 9 INSTALL THE COVER The operator cover consists of two pieces: a rear cover and a front cover. The front cover can easily be removed to access the electrical box. To access the reset switch slide the access door up. The front cover and access door can be locked with the key. 1. -
Page 25: Adjustment
ADJUSTMENT LIMIT AND FORCE ADJUSTMENT To reduce the risk of SEVERE INJURY or DEATH: • Without a properly installed safety reversal system, persons • NEVER use force adjustments to compensate for a binding or (particularly small children) could be SERIOUSLY INJURED or sticking gate. -
Page 26: Obstruction Test
ADJUSTMENT LIMIT AND FORCE ADJUSTMENT continued... FINE TUNE THE FORCE The FORCE DIAL on the control board is used for fine tuning the force in cases where wind or environmental changes may affect the gate travel. Based on the length and weight of the gate it may be necessary to make additional force adjustments. -
Page 27: Programming
PROGRAMMING REMOTE CONTROLS (NOT PROVIDED) A total of 50 Security+ 2.0 ® remote controls or KPW250 keypads and 2 keyless entries (1 PIN for each keyless entry) can be programmed to the operator. When programming a third keyless entry to the operator, the first keyless entry will be erased to allow the third keyless entry to be programmed. -
Page 28: Liftmaster Internet Gateway (Not Provided)
PROGRAMMING CONSTANT PRESSURE OVERRIDE (CPO) LIFTMASTER INTERNET GATEWAY (NOT PROVIDED) Constant Pressure Override is for use with KPW5 and KPW250 keypads (not provided). The KPW5/KPW250 wireless commercial keypads are To program the operator to the LiftMaster Internet Gateway: security keypads and can only be programmed to ONE gate operator (see the KPW5/KPW250 manual for complete programming instructions). -
Page 29: Operation
OPERATION GATE OPERATOR SETUP EXAMPLES The following are example setups for the gate operator. Your specific site requirements may be different. Always setup the operator system to the site requirements, including all necessary entrapment protection devices. RESIDENTIAL: One to four residential homes sharing a gated entrance/exit, allowing vehicle access trumps security concerns COMMERCIAL/GENERAL ACCESS: A residential community (more than four homes) having one or more gated entrances/exits, allowing vehicle access trumps security concerns COMMERCIAL: Business site where security (gate closed) is important... -
Page 30: Control Board Overview
DIAGNOSTICS Display: The diagnostics display will show the operator type, firmware version, and codes. The operator type will display as "SL" followed by a "24" which indicates the operator type as CSL24U. The firmware version will show after the operator type, example "1.2". -
Page 31: Manual Disconnect
OPERATION MANUAL DISCONNECT Press the reset switch to RESET/DISCONNECT to allow the gate to be opened and closed manually. To resume normal operation press the NORMAL OPERATION reset switch to NORMAL OPERATION. RESET/DISCONNECT RESET SWITCH The reset switch is located on the front of the operator and serves several functions. -
Page 32: Accessory Wiring
ACCESSORY WIRING EXTERNAL CONTROL DEVICES ACCESS CONTROL DEVICE WIRING EXIT (2 Terminals) Access Control Device This input is a soft open command (maintained switch does not override external safeties and does not reset alarm condition). Used for exit probe, telephone entry, external exit loop detector, or any device that would command the gate to open. -
Page 33: Locks
ACCESSORY WIRING LOCKS MAGLOCK (2 Terminals, N.C. and COM) MAGLOCK Relay contact output, Normally - closed (N.C.) output for maglocks. (not provided) Relay activates prior to motor activation and during motor run. Relay is off when motor is off. SOLENOID (2 Terminals, N.O. -
Page 34: Expansion Board
EXPANSION BOARD To AVOID damaging the circuit board, relays or accessories, DO NOT connect more than 42 Vdc (32 Vac) to the AUX relay contact terminal blocks. EXPANSION BOARD OVERVIEW 1 QUICK CLOSE Switch: EYE/EDGE Switches: Set the EYE/EDGE switches as needed to obtain the desired OPEN or CLOSE functionality. -
Page 35: Auxiliary Relays
EXPANSION BOARD AUXILIARY RELAYS AUX RELAY 1 AND 2 Normally Open (N.O.) and Normally Closed (N.C.) relay contacts to control external devices, for connection of Class 2, low voltage (42 Vdc [34 Vac] max 5 Amps) power sources only. Function of relay contact activation determined by switch settings. AUX RELAY SWITCH AUX RELAY 1... -
Page 36: Wiring Accessories To The Expansion Board
EXPANSION BOARD WIRING ACCESSORIES TO THE EXPANSION BOARD Refer to the chart below and the corresponding image for a description of the expansion board inputs. Entrapment Protection Device Inputs EYES ONLY Input: Open or Close Direction Photoelectric Sensors, Close: reverses fully, Open: reverses (4 terminals total), Open or Close 4 seconds Direction based on switch setting next... -
Page 37: Maintenance
MAINTENANCE IMPORTANT SAFETY INFORMATION To reduce the risk of SEVERE INJURY or DEATH: • Test the gate operator monthly. The gate MUST reverse on contact • READ AND FOLLOW ALL INSTRUCTIONS. with a rigid object or reverse when an object activates the •... -
Page 38: Troubleshooting
TROUBLESHOOTING To protect against fire and electrocution: For continued protection against fire: • DISCONNECT power (AC or solar and battery) BEFORE installing or • Replace ONLY with fuse of same type and rating. servicing operator. DIAGNOSTIC CODES NOTE: When cycling or disconnecting power (ac/dc) to the control board, it is recommended that you unplug the J15 plug. TO VIEW THE CODES OPEN, CLOSE, &... - Page 39 TROUBLESHOOTING DIAGNOSTIC CODES continued... Some codes are saved in the code history and some are not. If a code is not saved it will briefly appear on the display as it occurs, then disappear. Inherent Entrapment External Entrapment LiftMaster System Installed System Informational Protection...
- Page 40 TROUBLESHOOTING DIAGNOSTIC CODES continued... Some codes are saved in the code history and some are not. If a code is not saved it will briefly appear on the display as it occurs, then disappear. Inherent Entrapment External Entrapment LiftMaster System Installed System Informational Protection...
-
Page 41: Control Board Leds
TROUBLESHOOTING CONTROL BOARD LEDS STATUS LEDS INPUT LEDS OPEN, CLOSE, INPUT OFF state Input inactive STOP INPUT POWER AC charger or Solar power Input active available BLINK Input active on other operator BATT Not charging FIRE DEPT Input inactive CHARGING INPUT Three stage battery charging Input active... -
Page 42: Troubleshooting Chart
TROUBLESHOOTING TROUBLESHOOTING CHART SYMPTOM POSSIBLE CAUSES SOLUTIONS Operator does not a) No power to control board a) Check AC and battery power run and diagnostic b) Open fuse b) Check fuses display not on. c) If on battery power only, low or dead batteries c) Charge batteries by AC or solar power or replace batteries d) Defective control board d) Replace defective control board... - Page 43 TROUBLESHOOTING TROUBLESHOOTING CHART continued... SYMPTOM POSSIBLE CAUSES SOLUTIONS Exit loop activation a) Exit vehicle detector setup incorrectly a) Review Exit loop detector settings. Adjust settings as needed. does not cause gate b) Defective Exit loop detector b) Replace defective Exit loop detector. to open.
- Page 44 TROUBLESHOOTING TROUBLESHOOTING CHART continued... SYMPTOM POSSIBLE CAUSES SOLUTIONS Solenoid lock not working a) Solenoid wired incorrectly a) Check that Solenoid is wired to N.O. and COM terminals. Check that correctly. Solenoid has power (do not power solenoid from control board accessory power terminals).
-
Page 45: Appendix
APPENDIX STEP 6 MAXIMUM WIRE LENGTH (FEET) AMERICAN 20 WATTS OF 40 WATTS OF 60 WATTS OF WIRE GAUGE PANELS PANELS PANELS SOLAR PANEL(S) (AWG) NOT PROVIDED. SEE ACCESSORIES. 235 (71.6 m) 115 (35.1 m) 80 (24.4 m) Solar Application requirements: 375 (114.3 m) 190 (57.9 m) 125 (38.1 m) - Page 46 APPENDIX STEP 6 continued... SOLAR PANEL(S) SOLAR USAGE GUIDE Typical System Standby Battery Current Consumption (mA) System voltage Main board with no radios programmed 2.7 mA One or more LiftMaster ® remote controls programmed +1 mA device or wireless dual gate programmed +2.4 mA ®...
- Page 47 APPENDIX STEP 6 continued... Summer Sun Height SOLAR PANEL(S) The location of the panel(s) is critical to the success of the installation. In general, the panel(s) should be mounted using the provided angle bracket facing due south. Use a compass to determine direction. The solar panel(s) should be mounted in an area clear of all obstructions and Winter Sun Height shading from buildings and trees.
- Page 48 APPENDIX APPENDIX STEP 6 continued... SOLAR PANEL(S) INSTALL THE SOLAR PANEL 1. Position solar bracket on mounting surface. Mark and drill holes. 2. Insert two bolts into the track located on the back of the solar panel(s). Mounting Surface 3. Slide bolts in track away from bolt hole and align both bolts. 4.
-
Page 49: Sams Wiring With Relays Not Energized
APPENDIX SAMS WIRING WITH RELAYS NOT ENERGIZED Main Board Barrier Arm Operator Exit Input Auxiliary Command Access Device Shadow Input Expansion Board POWER ONLY EYE/ EDGE EYE/ EDGE Dipswitch settings for AUX Relay 1: 1-OFF, 2-OFF, 3-ON AUX Relay 1 DUAL GATE SETTINGS NOTE: We recommend that all accessories and board configurations are set on the primary operator. -
Page 50: Limit Setup With A Remote Control
APPENDIX LIMIT SETUP WITH A REMOTE CONTROL To set the limits using a remote control, first you will need a 3-button remote control that has been programmed for OPEN, CLOSE, and STOP. Refer to the Programming section. INITIAL LIMITS AND FORCE ADJUSTMENT ADJUST THE LIMITS For dual gate applications the limits will have to be set for each If the limits have already been set the operator will exit the limit setting... -
Page 51: Wiring Diagram
WIRING DIAGRAM To protect against fire and electrocution: For continued protection against fire: • DISCONNECT power (AC or solar and battery) BEFORE installing or • Replace ONLY with fuse of same type and rating. servicing operator. Field Wiring Field Wiring Edge Edge Black... -
Page 52: Repair Parts
REPAIR PARTS Gear Reducer Pulley and Motor Pulley Output Sprocket K17-36530 Timing Belt, 3M K15-41B17LKGH K16-GT2-7 Battery, 7AH, 12 Vdc 29-NP712 APE Assembly with Idler Pulley with hardware plastic tray, RPM K75-50090 board with mounting hardware K1A6408 Gear Reducer K32-34669-3 APS Encoder, Motor, 1/2 HP, 24 Vdc K76-34697... -
Page 53: Accessories
ACCESSORIES REMOTE CONTROLS ENTRAPMENT PROTECTION LiftMaster offers a variety of LiftMaster remote controls to satisfy your LIFTMASTER MONITORED THROUGH BEAM application needs. Single-button to 4-button, visor or key chain. The PHOTOELECTRIC SENSOR following remote controls are compatible with operators manufactured by Model LMTBU LiftMaster after 1993. - Page 54 LIFTMASTER INTERNET GATEWAY ® Internet enabled accessory which connects to the For post-mounting model CSL24U commercial computer and allows you to monitor and control slide operator (also SL3000 commercial slide gate operators and lighting accessories enabled by operator). Posts not included.
-
Page 55: Warranty
LiftMaster (“Seller”) warrants to the first purchaser of this product, for the structure in which this product is originally installed, that it is free from defect in materials and/or workmanship for a period of 7 year residential/ 5 year commercial from the date of purchase [and that the CSL24U is free from defect in materials and/or workmanship for a period of 7 year residential/ 5 year commercial from the date of purchase]. - Page 56 300 Windsor Drive Oakbrook, IL 60523 LiftMaster.com 01-37835D © 2017, LiftMaster – All Rights Reserved...
