Chamberlain ELITE Series Quick Start Manual

CAUTION
WARNING
WARNING WARNING
• DISCONNECT power BEFORE installing or servicing operator.
• Replace ONLY with fuse of same type and rating.
• To be compliant with UL325 and industry safety guidelines, qualified monitored
external entrapment protection devices such as photoelectric sensors or edge
sensors are required to be installed with this operator at each entrapment zone.
Use ONLY LiftMaster approved entrapment protection devices (refer to the
accessory page of manual).
• See manual regarding maintenance and required safety testing prior to servicing.
Diagnostic Codes
TO VIEW THE CODES:
Press and hold ...then press and ...then press and hold OPEN
STOP... hold CLOSE... until "Er" shows.
The operator will show the code sequence number followed by the code number:
A SECOND LATER....
CODE SEQUENCE NUMBER CODE NUMBER
The first number shown is the most recent The second number shown after the code
code (example: "01"). The display will show sequence number is the code itself
the sequence of codes that occurred starting (31-99, example" "31").
with "01" and going up to code "20".
TO SCROLL THROUGH THE SAVED CODES:
Press the OPEN button to cycle to the most recent code ("01"). Press the CLOSE button
to cycle to the oldest code (up to "20").
CODE COLOR KEY:
LiftMaster System External Entrapment Protection
Installed System Inherent Entrapment Protection
Informational
MEANING SOLUTION
Main control board has Disconnect all power, wait 15 seconds, then reconnect power
31 experienced an internal (reboot). If issue continues, replace main control board.
failure.
Max-Run-Time Exceeded Attempt to run and review for duration and obstructions.
35 Error Max-Run-Time can be re-measured by saving one or both of
the limits again.
Product ID Error Was the control board just replaced? If so, erase limits, enter
limit setup mode and set limits. If not, disconnect all power,
36
wait 15 seconds, then reconnect power before changing
product ID harness.
Product ID Failure Unplug product ID harness then plug back in. Disconnect all
37 power, wait 15 seconds, then reconnect power before
replacing product ID harness.
43 Failure or missing EXIT loop Check loop wiring throughout connection. May be a short in
the loop, or an open connection in the loop (LiftMaster Plug-
Failure or missing SHADOW
44 in Loop Detector only).
loop
Failure or missing
45
INTERRUPT loop
46 Wireless edge battery low Replace batteries in wireless edge.
Power board fault Relay fault detected in the power board. Replace the power
47
board.
Run-Distance Error Limits are less than 4 feet apart or longer than what was
50 learned. Check limit positions and proper switch function.
Run-distance can be re-learned by setting the handing again.
Brownout occurred AC/DC board supply dipped below allowable level. Review
53 power supply and wiring. If rebooting, ensure enough time
for discharge of power to force a fresh boot.
Wireless Second Operator Check the second operator for power. If OFF, restore power
54 Communication Error and try to run the system. If powered, deactivate the wireless
feature and then re-learn the second operator.
55 System AC Overvoltage Call utility.
56 System AC Undervoltage Check wiring and wire gauge to operator.
Limit Error - Stuck Switch Check switch for proper operation. Check harness for shorts.
57
Replace if defective.
58 Limit Error - Wrong Switch Check motor wiring.
Missing Power Board Check harness for shorts. Check for presence of power
59
board.
Minimum number of Review monitored entrapment protection device connections.
monitored entrapment
60
protection devices (one) not
installed.
CLOSE EYE/INTERRUPT held Check wired input on main board; check for alignment or
61
more than 3 minutes obstruction.
CLOSE EDGE held more than
62
3 minutes
OPEN EYE/EDGE held more
63
than 3 minutes
CLOSE EYE/INTERRUPT held Check wired input on expansion board; check for alignment
64
more than 3 minutes or obstruction.
CLOSE EYE/EDGE held more
65
than 3 minutes
OPEN EYE/EDGE held more
66
than 3 minutes
Wireless edge triggered more Check wired input for wiring issue or obstruction.
67
than 3 minutes
Wireless edge loss of Check wireless edge inputs.
68
monitoring
Wireless edge triggered IF an obstruction occurred, no action required. If an
69
obstruction did NOT occur, check inputs and wiring.
CLOSE EYE/INTERRUPT IF an obstruction occurred, no action required. If an
triggered, causing reversal, obstruction did NOT occur, check alignment, inputs, and
70
preventing close, or resetting wiring on main board.
TTC
CLOSE EDGE triggered,
71 causing reversal, preventing
close, or canceling TTC
OPEN EYE/EDGE triggered,
72 causing reversal or
preventing opening
CLOSE EYE/INTERRUPT IF an obstruction occurred, no action required. If an
triggered, causing reversal, obstruction did NOT occur, check alignment, inputs, and
73
preventing close, or resetting wiring on expansion board.
TTC
CLOSE EYE/EDGE triggered,
causing reversal and
74
preventing close or canceling
TTC
OPEN EYE/EDGE triggered,
75 causing reversal or
preventing opening
Close input (EYE/EDGE) Check inputs and communication method between operators,
80
communication fault from either wired bus or radio. Ensure operator is powered. May
other operator have to erase the wireless communication and reprogram the
two operators.
Open input (EYE/EDGE)
81 communication fault from
other operator
Close input (EYE/EDGE) Check the connections between the main board and the
82 communication fault expansion board.
(expansion board)
Open input (EYE/EDGE)
83 communication fault
(expansion board)
Force Reversal Look for obstruction, if no obstruction, check that the
mechanical assembly is engaged and free to move. Refer to
91
manual for Limit and Force Adjustment, and Obstruction
Test.
RPM / STALL Reversal Check for obstruction. If no obstruction, check the operator
93 cable wiring and that the operator arm is engaged and free to
move. Replace RPM assembly.
AC motor no start condition Motor failed to start. Check for an obstructed gate or binding
95
mechanism. Check start capacitor connections and condition.
99 Normal Operation No action required
CONTROL BOARD
BIPART
DELAY
4
2 6
8
OPEN OPEN
LEFT RIGHT
HANDING
ANTENNA CURRENT MOTOR DRIVE RPM & LIMITS ALARM EXP. 24 VAC IN
ID RESET BOARD
SENSOR
ANTENNA
MOTOR DRIVE RPM & LIMITS ALARM EXP.
CURRENT
ID RESET
SENSOR BOARD
2 1 4 3 2 1
2 1 10 9 8 7 6 5 4 3 2 1 4 3 2 1
Red
Blue
Orange
Yellow
Green
Gray
Purple
Black
White
RESET
BUTTON
Red
PRODUCT ID
Black
SL585 - Blue
SL595 - Black
HORSE POWER ID
1/2 HP - White
1 HP - Brown
2 HP - Red
MOV ASSEMBLY
1 2 3 4 5 6 7 8 9 3 2 1 2 1 Connected across J1, J2, J3
J12
MOTOR
CURRENT
White
J14 TRANSFORMER
(BLACK)
L1
12V
J1
(WHITE) J6 J11
L2
J2
12V Orange
(PURPLE)
J8 J7
L3
J3 BRAKE
LINE IN
J13
J10
J4 J5
480V
240V/208V
575V
MOTOR
POWER BOARD
HARNESS
THREE PHASE
EXPANSION BOARD
PLUG-IN LOOP DETECTOR
Model LOOPDETLM
SHADOW INTERUPT EXIT
INTERRUPT LOOP
AUXILIARY
SHADOW LOOP
RELAY 1
EXIT LOOP
Jumper
N.C.
N.C.
COM
N.O.
ACCESSORY POWER
24 Vac 500 mA Maximum
24 VAC IN
Blue
Yellow
Black
Red
ALARM
COM
120
240
N.C. 24 VAC
480
N.C.
575
PTC FUSE
TRANSFORMER
White
SOLENOID BRAKE
Blue
White
Brown
1
Purple
2
Purple
3
Brown
4
3 1
5
6
T3
7
8
Red
9
15 13
Purple
10
11
12
T2
Purple
13 T1
Blue
14
Yellow
15
These switches determine if the corresponding
photoelectric sensor or edge sensor will function
for the OPEN or CLOSE cycle.
POWER
EYE
1 PHOTOELECTRIC SENSORS
ONLY
EYE/
2
EDGE PHOTOELECTRIC SENSORS
EYE/
3
EDGE
or EDGE SENSORS
COM
SBC
SINGLE BUTTON CONTROL STATION
OPN
CLS 3-BUTTON CONTROL
STP
STATION
N.C.
COM
Jumper
These switches control how the Auxiliary Relays will function.
AUXILIARY SWITCH SETTINGS
RELAY 2
RELAY 1
1 2 3
OFF OFF OFF Relay always off Relay always off
OFF OFF ON Energizes at open limit Energizes at open limit
OFF ON OFF Energizes when not at Energizes when not at
close limit close limit
OFF ON ON Energizes when motor is on Energizes when motor is on
Energizes 3 seconds prior Energizes 3 seconds prior
ON OFF OFF
and during gate motion and during gate motion
ON ON OFF Not used Not used
ON OFF OFF Energizes when gate is Energizes when gate is
tampered with tampered with
ON ON ON LEDs will blink cycle count Not used

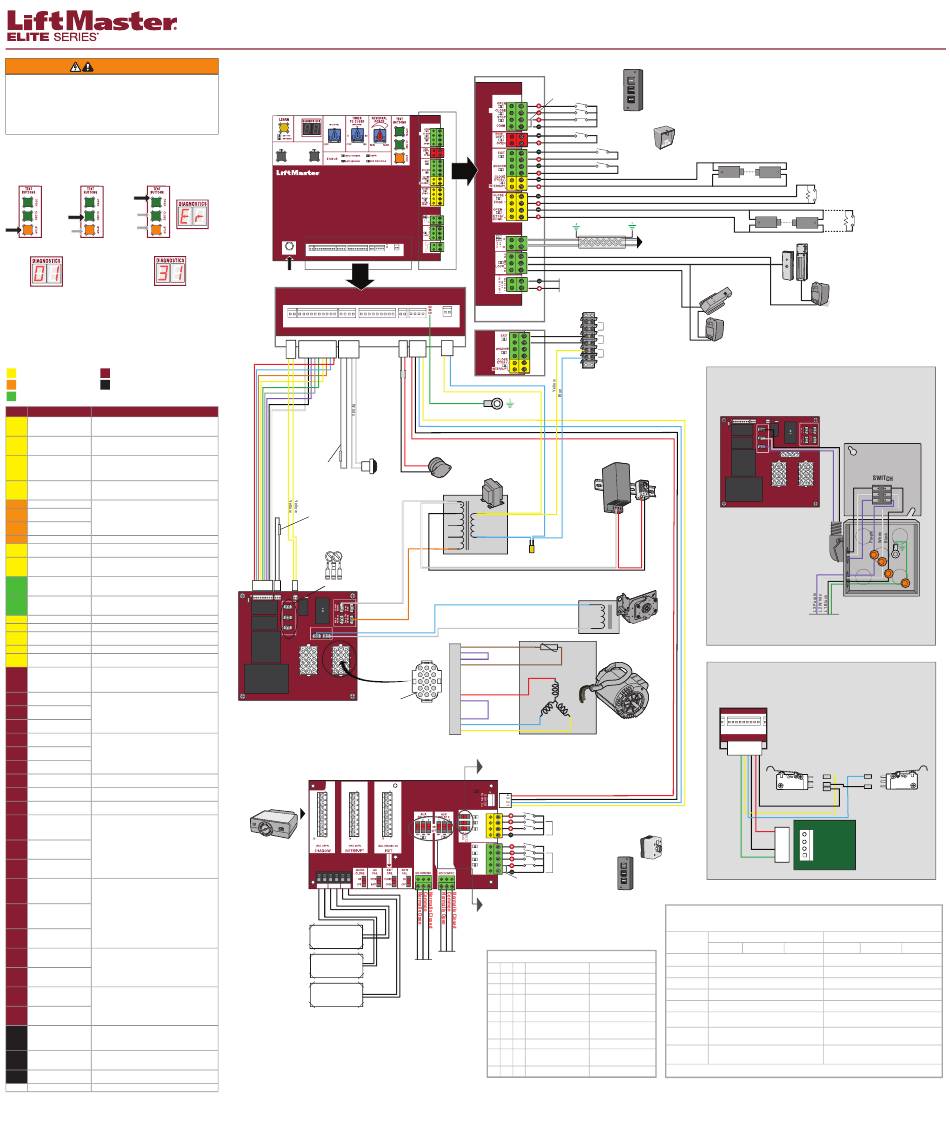

575V THREE PHASE WIRING DIAGRAM
3-BUTTON CONTROL STATION
FIRE DEPARTMENT
INTERRUPT LOOP
or
EXIT LOOP
PHOTOELECTRIC SENSORS for CLOSE cycle
SHADOW LOOP
Shielded Twisted Pair Cable
(Primary/Secondary link to other
gate operator) Ground the shield of
the cable to the chassis ground of
each operator.
SOLENOID LOCK
(Optional)
OR
OPTIONAL ACCESSORY
(Not Provided)
WIRING
EXIT
ACCESSORY POWER
24VAC 2.2 AMPS MAX
POWER BOARD
Three Phase
Yellow
J12
MOTOR
CURRENT
Blue
J14
(BLACK)
L1
12V J1
(WHITE)
L2
J2
12V
(PURPLE)
L3
J3
LINE IN
HEATER
J4
480V
Red
Black
MOTOR
Limit Switch Wiring
CONTROL BOARD
RPM & LIMITS ALA
SET
9 8 7 6 5 4 3 2 1
Limit Switch
Red
Black
Green
RED/GREEN
Red light wired to AUX RELAY 1.
AUX RELAY 1 SWITCHES
GATE STATE
1 OFF 2 OFF
CLOSED Red light OFF*
RELAY 2
OPENING Red light ON/FLASH
Red light OFF
OPEN
CLOSING Red light ON/FLASH
Defined Mid Stop
n/a
Undefined Mid
Red light ON
Stop
Timer more than
Red light OFF
5 seconds
Timer less than
Red light ON/FLASH
5 seconds
* For red light ON when gate is closed, set switch 1 on AUX RELAY 1 to ON
Models SL585U and SL595U
EDGE SENSOR for CLOSE cycle
PHOTOELECTRIC SENSORS
for OPEN cycle
or
EDGE SENSOR
MAGLOCK
(Optional)
(Not Provided)
Power Wiring
TRANSFORMER NOTE:The switch is located in the
electrical box for Model SL595.
J6 J11
J8 J7
BRAKE
J10
J5
240V/208V
575V
Attach
to metal
chassis
Green
JUNCTION BOX
INCOMING POWER
OPEN
CLOSE
Limit Switch
Blue
NC NC
NO
NO
Black
C
C
Black
Yellow
4
4
3 3
RPM BOARD
2 2
1 1
LIGHT FUNCTIONALITY
Green light wired to AUX RELAY 2.
AUX RELAY 2 SWITCHES
3 OFF 1 ON 2 ON 3 ON
Green light OFF
Green light OFF
Green light ON
Green light OFF
n/a
Green light OFF
Green light ON
Green light OFF
LiftMaster.com
© 2015, LiftMaster
All Rights Reserved
01-37913-3B
