Chamberlain Elite Series Manual

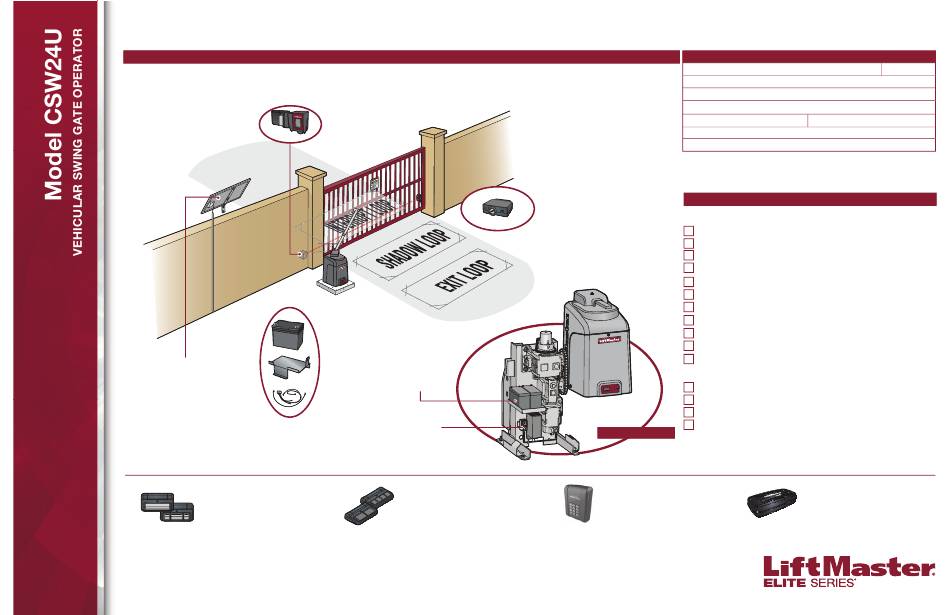

Gate Operator Site Plan
Solar Panel
To replace or add a solar panel to
the operator application. Requires
a solar battery harness. 20W
minimum to 60W maximum.
Universal DIP Single-Button
and 3-Button Remote Control
These remote controls are ideal for
applications such as gated communities or
commercial applications requiring a large
number of remotes for a common entrance.
For more information:
© 2016 LiftMaster All Rights Reserved
www.devancocanada.com 845 Larch Ave., Elmhurst, IL 60126
LiftMaster.com
or call toll free at 855-931-3334
PAS006
ACCESSORY OVERVIEW
Entrapment Protection Devices
This operator contains an inherent (internal) entrapment protection system and REQUIRES the addition of a LiftMaster external monitored
entrapment protection system (non-contact photoelectric sensor or contact edge sensor) for EACH entrapment zone prior to gate movement.
Model LMRRU is provided with operator. See back page.
Batteries
7AH
Standard 7 AMP-Hour Battery, 12 Vdc, to replace
original batteries provided with operator. Reuse
existing harnesses.
33AH
Upgrade 33 AMP-Hour Battery, 12 Vdc. Ideal for
extended battery backup. Two required. Requires
battery tray and solar battery harness.
Heater Kit
Protects system to -40° F.
2-Button and 4-Button Security+ 2.0
Learning Remote Controls
These remote controls are ideal for gated communities.
One button can control a gate operator and the other(s)
can control a garage door. It can also be programmed
to different codes and frequencies.
Customer:
Project:
Architect/Engineer:
Contractor:
Gate Length (ft.):
Solar (Y/N):
Power Source (120 or 240 VAC):
LiftMaster gate operators comply with UL 325 standards. IMPORTANT: To be compliant with UL 325
and industry safety guidelines, LiftMaster qualifi ed monitored external entrapment protection devices
such as photoelectric sensors or edge sensors are required to be installed with this operator.
Plug-In Loop Detector
Includes 8 sensitivity settings and
boost, ensures vehicles are easily
ACCESSORY
identifi ed.
Entrapment Protection Devices . . . . . . . . . . . . . . . . . . . . . . . . . . See back page
Plug-In Loop Detector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . LOOPDETLM
Universal DIP Single Button Remote Control . . . . . . . . . . . . . . . 811LM
Universal DIP Three Button Remote Control . . . . . . . . . . . . . . . 813LM
Security+ 2.0
Security+ 2.0
Wireless Commercial Keypad . . . . . . . . . . . . . . . . . . . . . . . . . . . KPW250
LiftMaster Internet Gateway . . . . . . . . . . . . . . . . . . . . . . . . . . . . 828LM
7AH Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29-NP712
33AH Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A12330SGLPK
Heater Kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . HTR
SOLAR
10 Watt 12V Solar Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . SP10W12V
20 Watt 12V Solar Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . SP20W12V
Battery Tray for 33AH batteries . . . . . . . . . . . . . . . . . . . . . . . . . . K10-36183
Solar Battery Harness . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . K94-37236

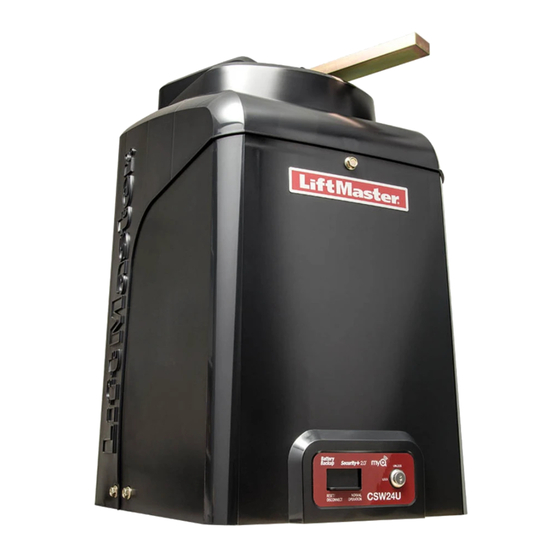

MODEL CSW24U
® Wireless Commercial Keypad
Security+ 2.0 compatible.
®
ORDER SUMMARY
Date:
Gate Weight (lbs.):
ACCESSORY CHECKLIST
MODEL
® 2-Button Remote Control . . . . . . . . . . . . . . . . . . 892LT
® 4-Button Remote Control . . . . . . . . . . . . . . . . . . 894LT
LiftMaster Internet Gateway
®
Internet enabled accessory which connects to
the computer and allows you to monitor and
control gate operators and lighting accessories
enabled by MyQ technology.
®
