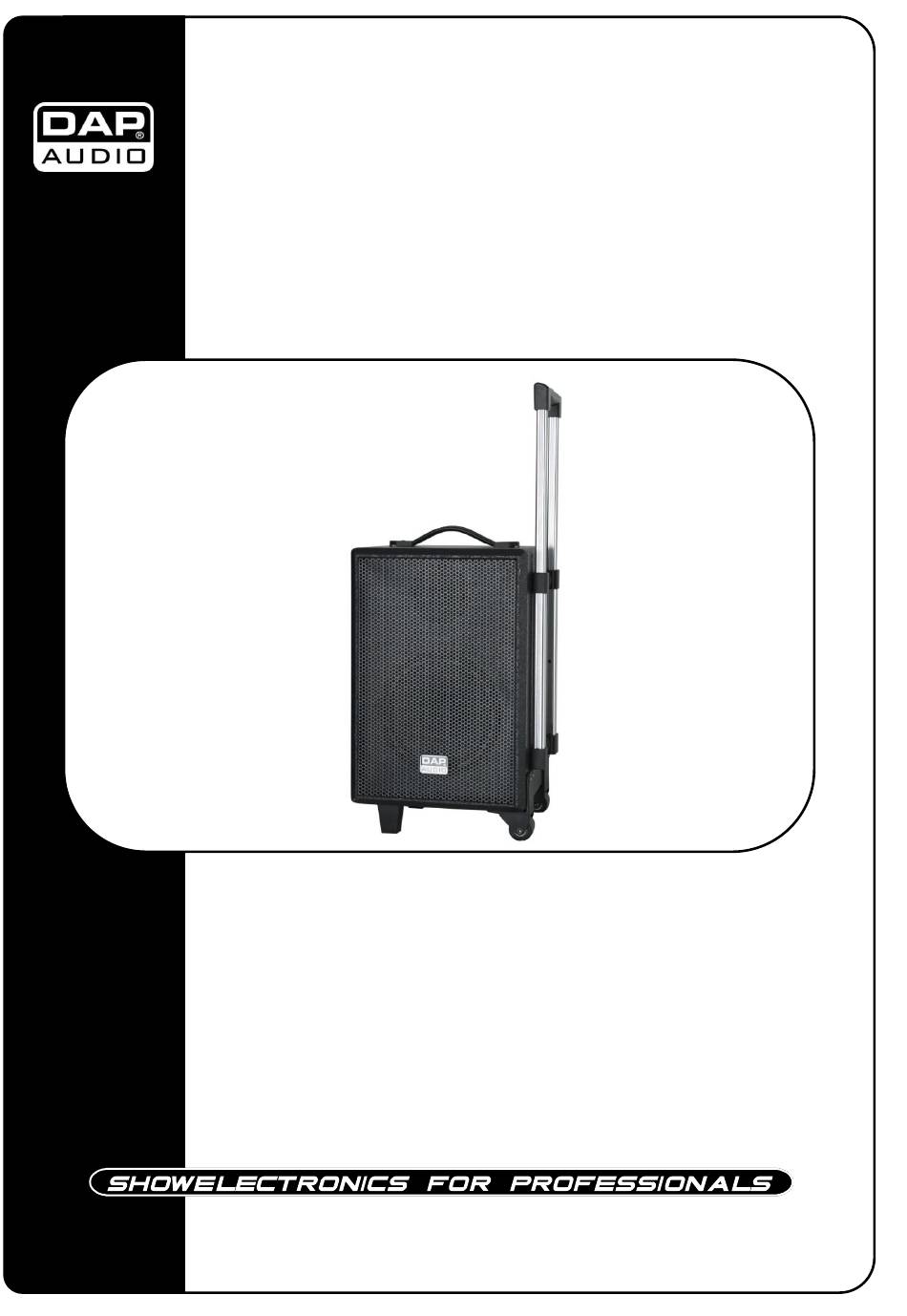

- Page 1 PSS-10 ORDERCODE D2604...
- Page 2 Congratulations! You have bought a great, innovative product from DAP Audio. The DAP Audio brings excitement to any venue. Whether you want simple plug-&-play action or a sophisticated show, this product provides the effect you need. You can rely on DAP Audio, for more excellent audio products. We design and manufacture professional audio equipment for the entertainment industry.
-
Page 3: Table Of Contents
Remote Control..............................Installation..................................Set Up and Operation..............................Operating on AC power............................Operating on battery power..........................Charging the PSS-10 built in batteries........................Changing the batteries of the PSS-10........................CD-Operations................................Loading a CD................................. Unloading CD’s............................... CD’s/ MP3-discs/ USB sticks/ SD- MMC cards...................... -
Page 4: Warning
Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: • DAP PSS-10 • 2x Wireless Microphone • 2x Antenna •... -
Page 5: Operating Determinations
IMPORTANT: The manufacturer will not accept liability for any resulting damages caused by the non- observance of this manual or any unauthorized modification to the system. Never let the power-cord come into contact with other cables! Handle the power-cord and all connections with the mains with particular caution! ... -
Page 6: Return Procedure
Connection with the mains Connect the device to the mains with the power-plug. Always pay attention, that the right color cable is connected to the right place. International EU Cable UK Cable US Cable BROWN YELLOW/COPPER FASE BLUE BLACK SILVER YELLOW/GREEN GREEN GREEN... -
Page 7: Description

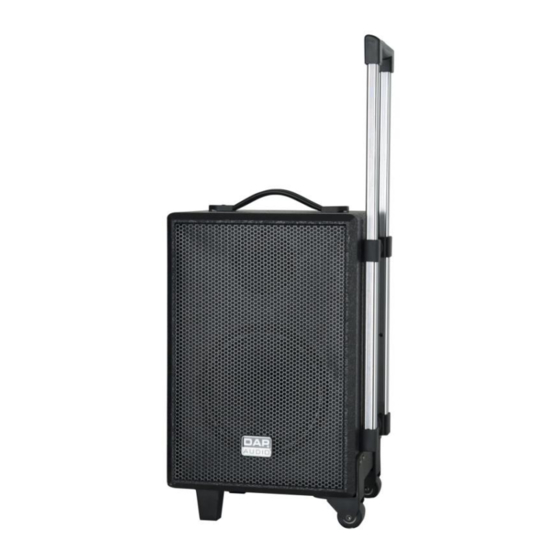

Description of the device Features • Portable sound system with CD player and two wireless microphones • Built in self- charging battery pack • Output power maximum 25 Wrms • Built in Tuner/CD/USB/SD- player • 2 Wireless microphones included Overview Fig. -
Page 8: Cd-Player
CD-player Fig. 2 1) Mute Button Use this button to mute the output. 2) Mode Button This button lets you select Radio, aux, CD, USB, SD as a source for payback. You can’t select the CD, USB or SD slot if there is no media (CD, USB stick or SD card) inserted. 3) P-EQ Button Pressing the PEQ button gives you direct access to the P-EQ function. - Page 9 10) Band Button Use this button to select the desired band. Pressing the button several times let’s you select one of five bands as shown below. 11) Power Button Use the power button to turn the device on or off. 12) Volume/Select Control Press the control to select between the volume, bass, treble, fader or balance functions as shown below.
- Page 10 Fig. 3 22) CD-slot 23) Eject Button Press this button to eject the CD. 24) Reset Button Press this button in case you need to reset the unit. Wireless Mic Receiver Fig. 4 25) Channel A Antenna connector 26) Channel A Audio level indicator Indicates the level of the incoming audio signal.
-
Page 11: Mixer
Mixer Fig. 5 33) Mic 1 level Use this control to adjust the volume of the Mic 1 input (49). 34) Mic 2 level Use this control to adjust the volume of the Mic 2 input (50). 35) Mic 3 level Use this control to adjust the volume of the Mic 3 input (51). -
Page 12: Wireless Microphone
46) 115V/230V Selector Before plugging the PSS-10 into a wall socket, make sure that the 115V/230V Selector is set to the proper voltage. 47) REC output Stereo RCA line level output 48) Line Output ¼” mono unbalanced line level jack output 49) MIC 1 ¼”... -
Page 13: Remote Control
Remote control Fig. 6 55) PWR Button Use the power button to turn the radio/CD player on or off. 56) 1/►ΙΙ Button In CD/MP-3 mode you can use this button to start/pause playback. In Radio mode, pressing this button will select preset 1. 57) MOD Button This button lets you select Radio, aux, CD, USB, SD as a source for payback. -
Page 14: Installation
Operating on AC power • Make sure the Power (35) switch is in Off (middle) position and connect the power cable. • Switch the Power (35) switch in position I to run the PSS-10. The Power (36) LED will light green. -
Page 15: Operating On Battery Power
Changing the batteries of the PSS-08 • The PSS-10 has three built in batteries which can be accessed through the metal battery cover at the side of the PSS-10. The batteries can be charged aprox. 500 times if used properly. -
Page 16: Stop Playback
6. Stop Playback • Press the Play/Pause (14, 66) button during playback to pause at that point. 7. Pausing • Press the Play/Pause (14, 66) button to switch between play and pause. • Playback resumes when the Play/Pause (14, 66) button is pressed again. Operation of the wireless microphones Inserting/replacing the battery We recommend powering the microphone by a 9 V PP3 alkaline battery. -
Page 17: Approval
Approval The DAP D2604 is a Class II wireless device. 195,00 MHz and 202,00 MHz for use in: Germany, Italy, Luxemburg, Netherlands, Switzerland, United Kingdom. Exclusion of liability The frequency tables in this publication are made according to national laws and regulations. The frequencies are checked on a regular basis. -
Page 18: Declaration Of Conformity
Declaration OF CONFORMITY This certifies that the following designated product: Name: PSS-110 Portable Speaker Syst em 10" Model No.: D2604 Brand Name: DAP AUDIO (Product Identification) Authorized by the European Union to act as Conformity Assessment Body in accordance with the R&TTE Directive 1999/5/EC EN 301 489-1 V1.8.1:2008 EN 301 489-9 V1.4.1:2007 EN 300 422-1 V1.3.2:2008... - Page 19 Declaration OF CONFORMITY This certifies that the following designated product: Name: PSS-110 Portable Speaker Syst em 10" Model No.: D2604 Brand Name: DAP AUDIO (Product Identification) complies with the requirements of the European Union Directive 2004/108/EC This certificate is awarded following tests carried out on samples of the product referred to above.
- Page 20 Declaration OF CONFORMITY This certifies that the following designated product: Name: PSS-110 Portable Speaker Syst em 10" Model No.: D2604 Brand Name: DAP AUDIO (Product Identification) complies with the requirements of the European Union Directive 2006/95/EC This certificate is awarded following tests carried out on samples of the product referred to above.
-
Page 21: Connection Cables
Connection Cables Take care of your cables, always holding them by the connectors and avoiding knots and twists when coiling them: This gives the advantage of increasing their life and reliability. Periodically check your cables. A great number of problems (faulty contacts, ground hum, discharges, etc.) are caused entirely by using unsuitable or faulty cables. -
Page 22: Maintenance
Maintenance The DAP Audio-CD-Player PSS-10 requires almost no maintenance. However, you should keep the unit clean. Disconnect the mains power supply, and then wipe the cover with a damp cloth. Do not immerse in liquid. Do not use alcohol or solvents. -
Page 23: Product Specifications
Product Specification Product Specification PSS-10 Power supply: AC 115/230 V - 50/60 Hz, Battery: 3 X 6V7, 2AH Battery life: >5H Fuse: T1,6A Rated power: 25 Wrms (4Ω) Speakers: 10” Low driver 3” Mid/high driver Frequency response: 50Hz-20kHz (aux) 50Hz-10kHz (mic) - Page 24 2011 Dap Audio.
