Summary of Contents for DAPAudio PSS-6.5

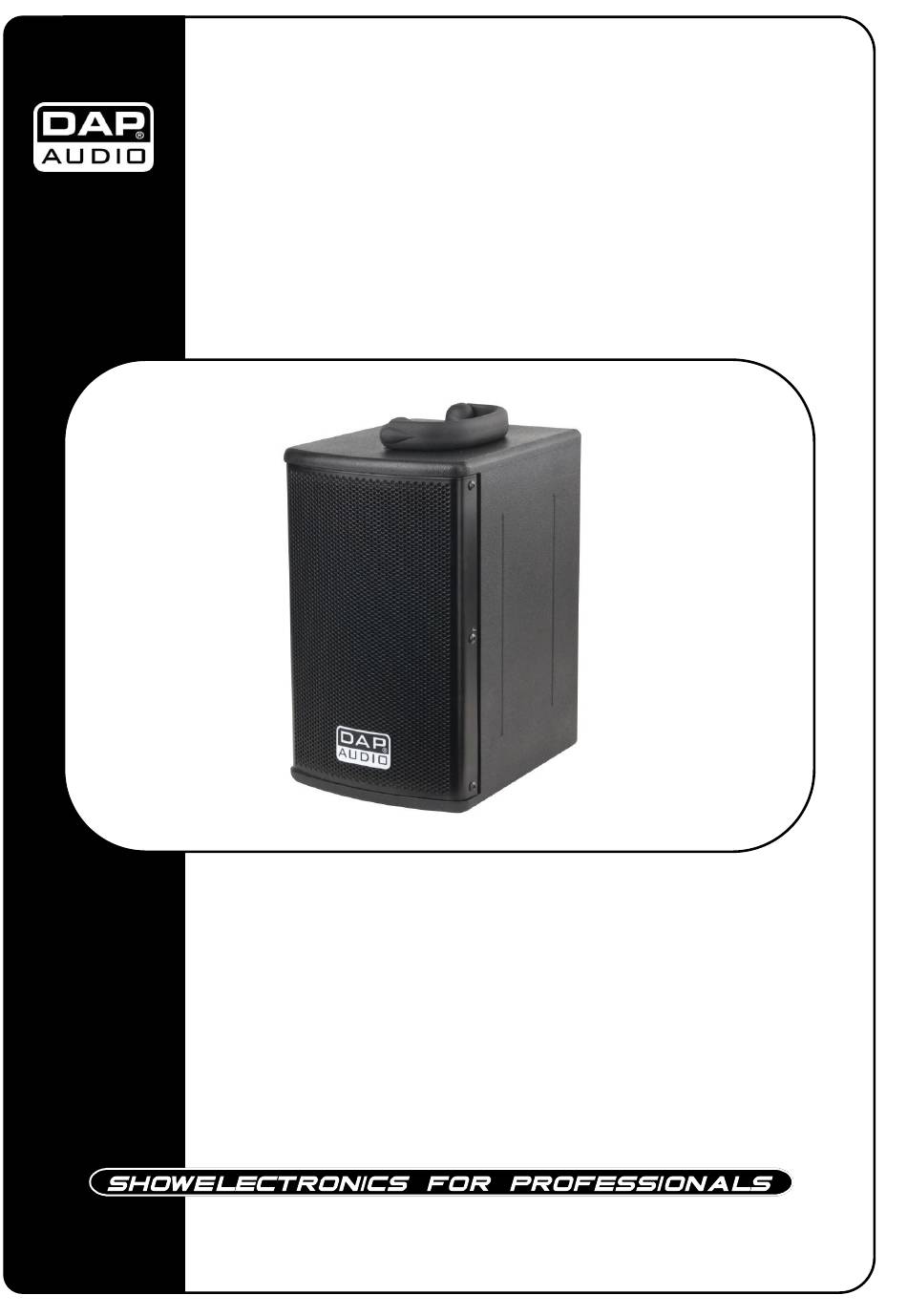

- Page 1 PSS-6.5 ORDERCODE D2602...
- Page 2 Congratulations! You have bought a great, innovative product from DAP Audio. DAP Audio PSS-6.5 brings excitement to any venue. Whether you want simple plug-&-play action or a sophisticated show, this product provides the effect you need. You can rely on DAP Audio, for more excellent audio products.
-
Page 3: Table Of Contents
Dap Audio Dap Audio PSS-6.5™ Product Guide Warning..................................Unpacking Instructions............................Safety-instructions..............................Operating Determinations............................. Return Procedure..............................Claims..................................Description..................................Overview................................. Wireless Microphone............................. Remote Control..............................Installation..................................Set Up and Operation..............................Operating on AC power............................Operating on battery power..........................Charging the PSS-6.5 built in battery........................ -
Page 4: Warning
Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: • DAP PSS-6.5 • 1x Wireless Microphone • 1x Battery 9V •... -
Page 5: Operating Determinations
IMPORTANT: The manufacturer will not accept liability for any resulting damages caused by the non- observance of this manual or any unauthorized modification to the system. Never let the power-cord come into contact with other cables! Handle the power-cord and all connections with the mains with particular caution! ... -
Page 6: Return Procedure
Connection with the mains Connect the device to the mains with the power-plug. Always pay attention, that the right color cable is connected to the right place. International EU (including UK) North America From April 2004 Brown Black Phase Blue White Neutral Green/Yellow... -
Page 7: Description
Description of the device Features Portable sound system with Radio/USB-/SD-/IPod- player and 1 wireless microphone • Built in self- charging battery pack • Output power maximum 60 Watt (PMPO) • Built in Radio/USB-/SD-/IPod- player • 1 Wireless microphone included Overview Fig. - Page 8 11) Echo level Use this control to adjust the level of the built in echo effect. 12) Power On/ Charge switch Position I is on, position II is charge, in between position is off. AC Inlet with integrated fuse holder. This connector is meant for the connection of the supplied main cord.
-
Page 9: Wireless Microphone
28) FM/ Loud Button Use this button to switch the Loudness function On or Off. In Tuner mode, holding the button for 3 seconds, lets you select the desired band. Pressing and holding the button for 3 seconds, lets you browse through the following modes and you select one of five bands as shown below. -
Page 10: Remote Control
Remote control Fig. 3 36) Power Button Use the power button to turn the Radio/ USB-/SD-/IPod- player on or off. 37) Mute Button Use this button to mute the output. 38) 1 Play-pause Button In USB/SD/IPod mode, you can use this button to start/pause playback. In Radio mode, pressing this button will select preset 1. - Page 11 48) AS Button Pressing and holding this button for more than 3 seconds starts ASM. If ASM is activated, the PSS-6.5 will scan all the frequency bands in sequence for stations and automatically store them in memory. If you decide to exit ASM before the search is finished, press the ASM button again.
-
Page 12: Installation
• Make sure the Power (12) switch is in Off (middle) position and connect the power cable. • Switch the Power (12) switch to position I to run the PSS-6.5. The Power (31) LED will light green. Operating on battery power •... -
Page 13: Operating Of The Wireless Microphones
Operation of the wireless microphones Inserting/replacing the battery We recommend powering the microphone by a 9V PP3 alkaline battery. Fig. 4 Turn the battery compartment cover in the direction of the arrow and remove the cover. Insert the battery. Please observe correct polarity when inserting the battery. ... - Page 14 Compensation of interference with balanced connections...
-
Page 15: Maintenance
Maintenance DAP Audio-CD-Player PSS-6.5 requires almost no maintenance. However, you should keep the unit clean. Disconnect the mains power supply, and then wipe the cover with a damp cloth. Do not immerse in liquid. Do not use alcohol or solvents. -
Page 16: Product Specifications
Product Specification Power supply: AC 230 V - 50/60 Hz Power consumption: Fuse: Speaker: 2x 4,5” 1x 1” Battery life: 1 - 2Hrs (depending on output level) Frequency response: 150Hz – 20kHz Rated power: 30 Wrms 60W P.M.P.O. Line input: 2x Mic 1x Stereo Aux Build in features:... - Page 17 2010 Dap Audio.
