Summary of Contents for DAPAudio D6554

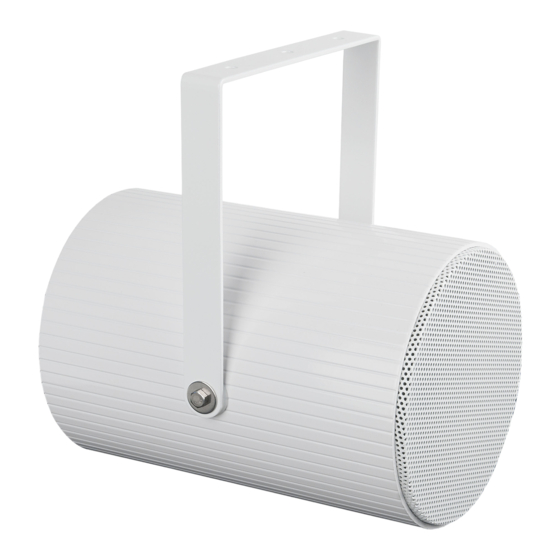

- Page 1 MANUAL ENGLISH PSU-620M Ordercode: D6554 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
- Page 2 Safety Instructions ................................. 2 Operating Determinations ............................3 Return Procedure ................................4 Claims ....................................4 Description of the device ..............................5 Overview ..................................5 Installation ................................... 5 Set Up and Operation ............................... 5 Troubleshooting ................................. 6 Product Specification ............................... 6 Ordercode: D6554...
- Page 3 Do not set the input signal level higher than required to drive the equipment to full output. Only use system indoors, avoid contact with water or other liquids. Avoid flames and do not put close to flammable liquids or gases. Ordercode: D6554...
- Page 4 Any other operation may lead to dangers like short-circuit, burns, electric shock, etc. You endanger your own safety and the safety of others! Improper installation can cause serious injuries and damage of property ! The PSU-620M can be mounted to any kind of truss with a clamp. Ordercode: D6554...
- Page 5 After this period complaints will not be handled anymore. Complaints will only then be considered if the client has so far complied with all parts of the agreement, regardless of the agreement of which the obligation is resulting. Ordercode: D6554...
- Page 6 Do not attempt to operate a 120V specification product on 230V power, or vice versa. 01) Connect the blue cable to the common cable. 02) Connect one of the colored cables to the main feed cable: red cable = 20W, yellow cable = 10W, green cable = 5W. Ordercode: D6554...
- Page 7 110-15 kHz Sensitivity: 92 dB Housing: Aluminum Color: Ivory White IP rating: IP55 Dimensions: 270 x 195 x 270 mm (LxWxH) Weight: 2,8 kg Design and product specifications are subject to change without prior notice. Website: www.Dap-audio.info Email: service@highlite.nl Ordercode: D6554...
- Page 8 ©2017 DAP Audio...
