- Page 1 MANUAL ENGLISH PS-112A Ordercode: D3575 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
PS-112A Table of contents Warning ....................................2 Unpacking Instructions ..............................2 Safety Instructions ................................2 Connection with the mains ............................. 4 Return Procedure ................................4 Claims ....................................4 Description of the device ..............................5 Features ................................... 5 Overview ..................................5 Controlpanel .................................. -
Page 3: Warning
PS-112A Warning FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! Unpacking Instructions Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure that all parts are present, and have been received in good condition. Notify the dealer immediately and retain packing material for inspection if any parts appear damaged from shipping or the carton itself shows signs of mishandling. - Page 4 Please turn off the power switch, when changing the power cord or signal cable, or select the input mode switch. Prevent distortion! Make sure that all components connected to the PS-112A have sufficient power ratings. Otherwise distortion will be generated because the components are operated at their limits. ...
-
Page 5: Connection With The Mains
PS-112A Connection with the mains Connect the device to the mains with the power-plug. Always pay attention, that the right color cable is connected to the right place. International EU Cable UK Cable US Cable BROWN YELLOW/COPPER FASE BLUE BLACK... -
Page 6: Description Of The Device

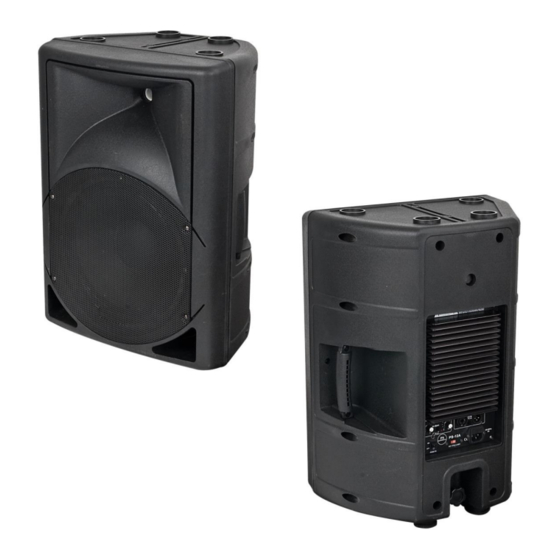

PS-112A Description of the device Features The PS-112A is an active 12" 2-way Fullrange speakersystem: • Adjustable Line/Mic Input with Combo connector. • Treble level control • Bass level control • Master volume control with Clip-LED • Roadproof housing made of plastics •... -
Page 7: Controlpanel
(Line = on, microphone = off). LINK XLR OUTPUT AC POWER SWITCH - This is the main Power switch. Press to turn the PS-112A on. POWER LED - Indicates that the unit is on. AC INLET with integrated fuse holder - This connector is meant for the connection of the supplied main cord. -
Page 8: Connection Cables
PS-112A Connection Cables Take care of your cables, always holding them by the connectors and avoiding knots and twists when coiling them: This gives the advantage of increasing their life and reliability. Periodically check your cables. A great number of problems (faulty contacts, ground hum, discharges, etc.) are caused entirely by using unsuitable or faulty cables. -
Page 9: Maintenance
PS-112A Maintenance The PS-112A requires almost no maintenance. However, you should keep the unit clean. Disconnect the mains power supply, and then wipe the cover with a damp cloth. Do not immerse in liquid. Keep connections clean. Disconnect electric power, and then wipe the audio connections with a damp cloth. -
Page 10: Product Specifications
PS-112A Product Specifications Power supply: 230V 50/60Hz Fuse: Woofer: 12" Neodymium, 4Ω, 65mm voice coil High driver: 1,35" Titanium dome, 8Ω 34mm voice coil Freq. response: -3dB 65 Hz – 20 kHz Max. power Low- amp: 225Wrms in 8Ω Max. Power High-amp: 150Wrms in 8Ω... -
Page 11: Notes
PS-112A Notes Ordercode: D3575... - Page 12 ©2013 DAP Audio...
