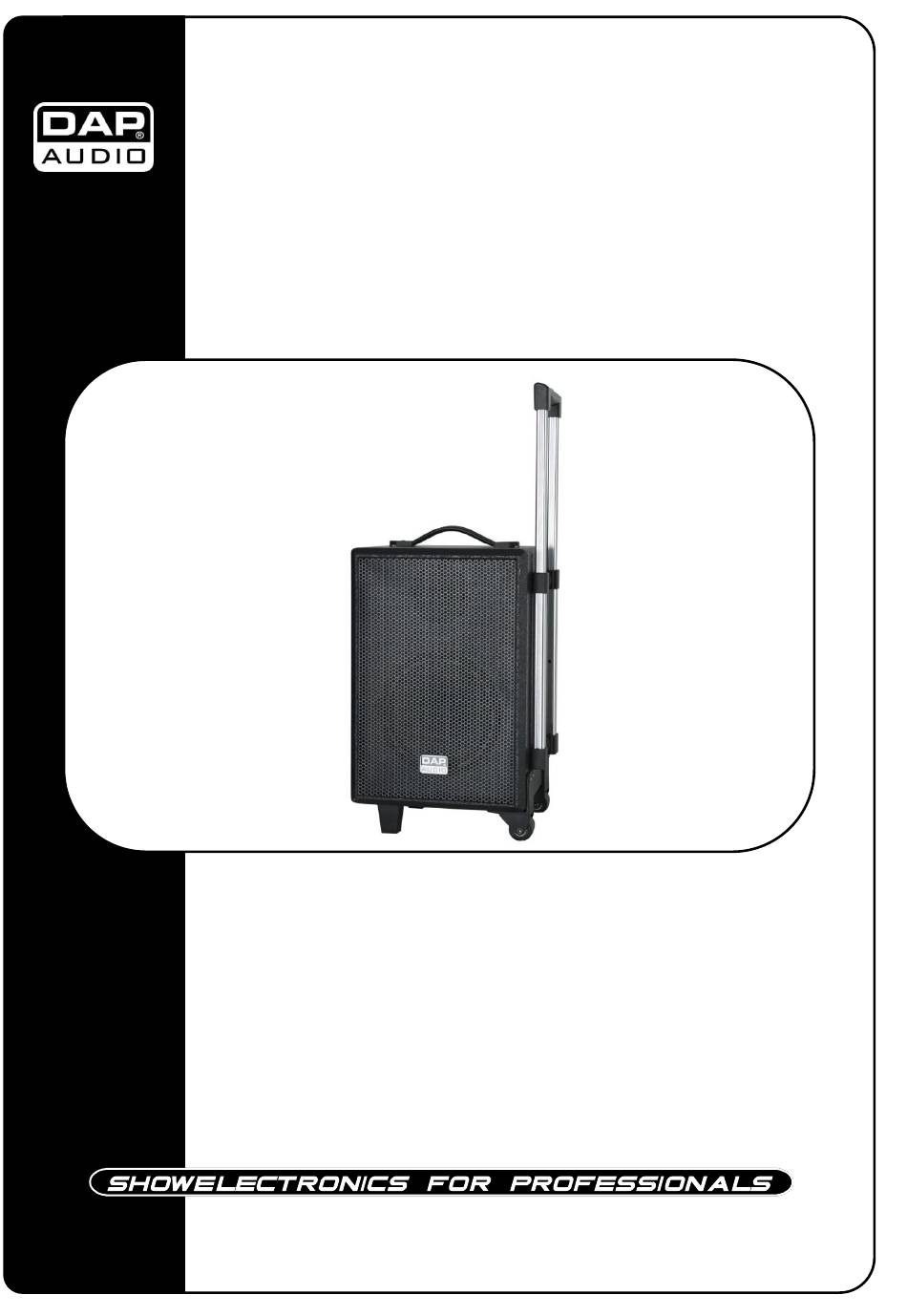

  • Page 1 PSS-08 ORDERCODE D2603...
  • Page 2 Congratulations! You have bought a great, innovative product from DAP Audio. The DAP Audio PSS-08 brings excitement to any venue. Whether you want simple plug-&-play action or a sophisticated show, this product provides the effect you need. You can rely on DAP Audio, for more excellent audio products.
  • Page 3: Table Of Contents

    Remote Control..............................Installation..................................Set Up and Operation..............................Operating on AC power............................Operating on battery power..........................Charging the PSS-08 built in batteries........................Changing the batteries of the PSS-08........................CD-Operations................................Loading a CD................................. Unloading CD’s............................... CD’s/ MP3-discs/ USB sticks/ SD- MMC cards......................
  • Page 4: Warning

    Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: • DAP PSS-08 • 2x Wireless Microphone • 2x Antenna •...
  • Page 5: Operating Determinations

    IMPORTANT: The manufacturer will not accept liability for any resulting damages caused by the non- observance of this manual or any unauthorized modification to the system.  Never let the power-cord come into contact with other cables! Handle the power-cord and all connections with the mains with particular caution! ...
  • Page 6: Return Procedure

    Connection with the mains Connect the device to the mains with the power-plug. Always pay attention, that the right color cable is connected to the right place. International EU Cable UK Cable US Cable BROWN YELLOW/COPPER FASE BLUE BLACK SILVER YELLOW/GREEN GREEN GREEN...
  • Page 7: Description

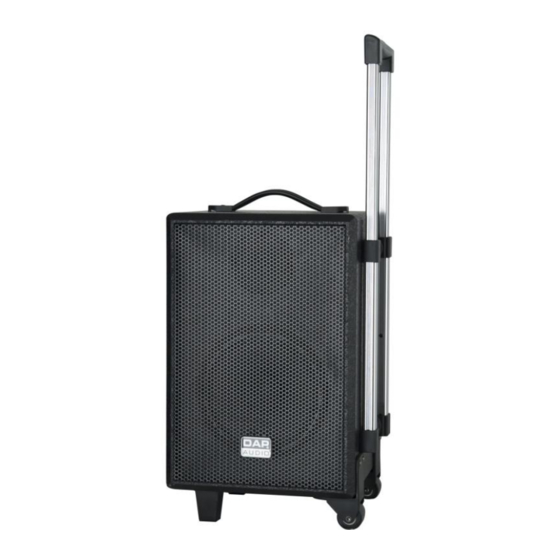

    Description of the device Features • Portable sound system with CD player and two wireless microphones • Built in self- charging battery pack • Output power maximum 25 Wrms • Built in Tuner/CD/USB/SD- player • 2 Wireless microphones included Overview Fig.
  • Page 8: Cd-Player

    CD-player Fig. 2 1) Mute Button Use this button to mute the output. 2) Mode Button This button lets you select Radio, aux, CD, USB, SD as a source for payback. You can’t select the CD, USB or SD slot if there is no media (CD, USB stick or SD card) inserted. 3) P-EQ Button Pressing the PEQ button gives you direct access to the P-EQ function.
  • Page 9 TRE: Turn the control to increase or decrease the treble frequencies. BAL: This function has no effect in the PSS-08. FAD: This function has no effect in the PSS-08. Pressing and holding the control for 2 seconds enables you to toggle the loudness function on or off.
  • Page 10 Fig. 3 22) CD-slot 23) Eject Button Press this button to eject the CD. 24) Reset Button Press this button in case you need to reset the unit. Wireless Mic Receiver Fig. 4 25) Channel A Antenna connector 26) Channel A Audio level indicator Indicates the level of the incoming audio signal.
  • Page 11: Mixer

    Mixer Fig. 5 33) Mic 1 level Use this control to adjust the volume of the Mic 1 input (49). 34) Mic 2 level Use this control to adjust the volume of the Mic 2 input (50). 35) Mic 3 level Use this control to adjust the volume of the Mic 3 input (51).
  • Page 12: Wireless Microphone

    46) 115V/230V Selector Before plugging the PSS-08 into a wall socket, make sure that the 115V/230V Selector is set to the proper voltage. 47) REC output Stereo RCA line level output 48) Line Output ¼” mono unbalanced line level jack output 49) MIC 1 ¼”...
  • Page 13: Remote Control

    Remote control Fig. 6 55) PWR Button Use the power button to turn the radio/CD player on or off. 56) 1/►ΙΙ Button In CD/MP-3 mode you can use this button to start/pause playback. In Radio mode, pressing this button will select preset 1. 57) MOD Button This button lets you select Radio, aux, CD, USB, SD as a source for payback.
  • Page 14: Installation

    Operating on AC power • Make sure the Power (35) switch is in Off (middle) position and connect the power cable. • Switch the Power (35) switch to position I to run the PSS-08. The Power (36) LED will light green.
  • Page 15: Operating On Battery Power

    Changing the batteries of the PSS-08 • The PSS-08 has three built in batteries which can be accessed through the metal battery cover at the side of the PSS-08. The batteries can be charged aprox. 500 times if used properly.
  • Page 16: Stop Playback

    6. Stop Playback • Press the Play/Pause (14, 66) button during playback to pause at that point. 7. Pausing • Press the Play/Pause (14, 66) button to switch between play and pause. • Playback resumes when the Play/Pause (14, 66) button is pressed again. Operation of the wireless microphones Inserting/replacing the battery We recommend powering the microphone by a 9 V PP3 alkaline battery.
  • Page 17: Approval

    Approval The DAP D2603 is a Class II wireless device. 195,00 MHz and 202,00 MHz for use in: Germany, Italy, Luxemburg, Netherlands, Switzerland, United Kingdom. Exclusion of liability The frequency tables in this publication are made according to national laws and regulations. The frequencies are checked on a regular basis.
  • Page 18: Declaration Of Conformity

    Declaration OF CONFORMITY This certifies that the following designated product: Name: PSS-108 Portable Speaker System 8" Model No.: D2603 Brand Name: DAP AUDIO (Product Identification) Authorized by the European Union to act as Conformity Assessment Body in accordance with the R&TTE Directive 1999/5/EC EN 301 489-1 V1.8.1:2008 EN 301 489-9 V1.4.1:2007 EN 300 422-1 V1.3.2:2008...
  • Page 19 Declaration OF CONFORMITY This certifies that the following designated product: Name: PSS-108 Portable Speaker System 8" Model No.: D2603 Brand Name: DAP AUDIO (Product Identification) complies with the requirements of the European Union Directive 2004/108/EC This certificate is awarded following tests carried out on samples of the product referred to above.
  • Page 20 Declaration OF CONFORMITY This certifies that the following designated product: Name: PSS-108 Portable Speaker System 8" Model No.: D2603 Brand Name: DAP AUDIO (Product Identification) complies with the requirements of the European Union Directive 2006/95/EC This certificate is awarded following tests carried out on samples of the product referred to above.
  • Page 21: Connection Cables

    Connection Cables Take care of your cables, always holding them by the connectors and avoiding knots and twists when coiling them: This gives the advantage of increasing their life and reliability. Periodically check your cables. A great number of problems (faulty contacts, ground hum, discharges, etc.) are caused entirely by using unsuitable or faulty cables.
  • Page 22: Maintenance

    Maintenance The DAP Audio-CD-Player PSS-08 requires almost no maintenance. However, you should keep the unit clean. Disconnect the mains power supply, and then wipe the cover with a damp cloth. Do not immerse in liquid. Do not use alcohol or solvents.
  • Page 23: Product Specifications

    Product Specification PSS-08 Power supply: AC 115/230 V - 50/60 Hz, Battery: 3 X 6V7, 2AH Battery life: >5H Fuse: T1,6A Rated power: 25 Wrms (4Ω) Speakers: 8” Low driver 3” Mid/high driver Frequency response: 50Hz-20kHz (aux) 50Hz-10kHz (mic) Inputs:...
