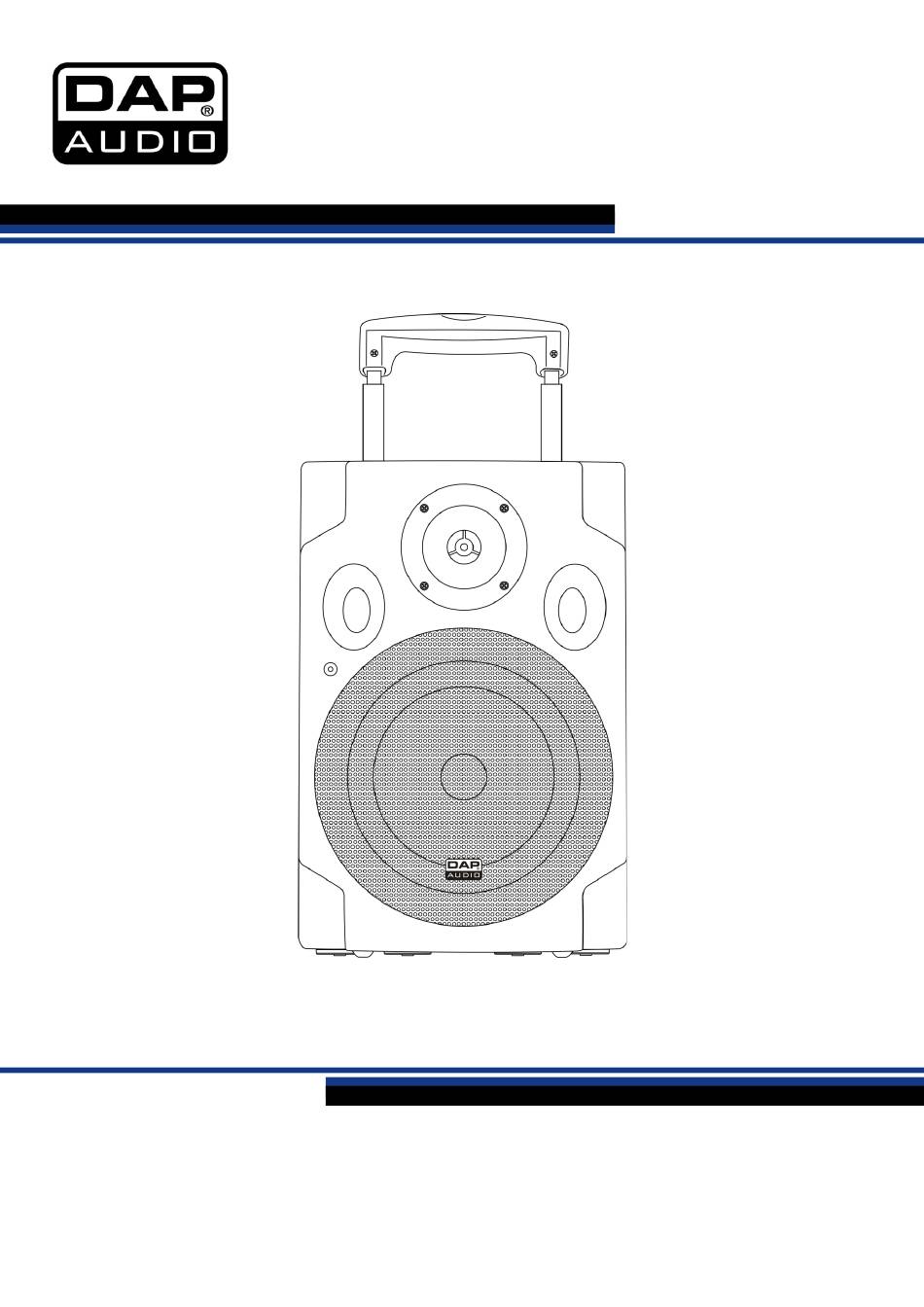

- Page 1 MANUAL V2 ENGLISH PSS-108 MKII Ordercode: D2608 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
Starting Playback ..............................11 Pausing ..................................11 Stop Playback ................................11 Operation of the Wireless Microphones ........................11 Inserting/replacing the battery ..........................11 Tips For Achieving Maximum Performance ......................12 Maintenance ..................................12 Replacing the Fuse ..............................12 Troubleshooting ................................12 No Sound ..................................12 Product Specification ..............................13 Ordercode: D2608... -
Page 3: Warning
Please consider that damages caused by manual modifications to the system are not subject to warranty. This system contains no user-serviceable parts. Refer servicing to qualified technicians only. Ordercode: D2608... -
Page 4: Operating Determinations
Any other operation may lead to dangers like short-circuit, burns, electric shock, etc. You endanger your own safety and the safety of others ! Improper installation can cause serious damage to people and property ! Ordercode: D2608... -
Page 5: Connection With The Mains
After this period complaints will not be handled anymore. Complaints will only then be considered if the client has so far complied with all parts of the agreement, regardless of the agreement of which the obligation is resulting. Ordercode: D2608... -
Page 6: Description Of The Device
Fair events • Theme parks • Sporting events • • Outdoor church services Street musicians • Product presentations • Overview Fig. 01 Ordercode: D2608... -
Page 7: Names And Functions
Turn this control to adjust the high frequencies. Voice priority Press the button to decrease the volume of all channels, except for microphone 1 and the wireless mic. Pair button microphone channel 1 Press and hold down for about 5 seconds to enter pairing status. Ordercode: D2608... - Page 8 You can also use the ¼" jack connector to connect line-level signal sources. Mic IN connector 2 Use this balanced XLR input to connect microphones. RCA unbalanced input Channel 3 Unbalanced stereo RCA jacks. Line out Connect to the line input of a mixer. Ordercode: D2608...
- Page 9 Power on-off / Stop Press this button to turn the USB player on. When playback is active, press this button to stop playback. Fig. 05 Power switch On/Off IEC power connector IN + Fuse T1AL/250V Ordercode: D2608...
-
Page 10: Wireless Microphone
Press and hold down this button for 5 seconds to pair the transmitter and receiver. • LED indicator the microphone is on/paired the microphone is off Battery cover Remove the battery cover to insert 2 AA alkaline batteries. Ordercode: D2608... -
Page 11: Installation
03) While the PSS is charging, the red recharge (13) LED will light up in red. 04) Charge the battery for at least 8 hours. If the battery is fully charged, the red recharge (13) LED will light up. Ordercode: D2608... -
Page 12: Usb/Mp3 Operations
01) Press the VOL+ (21) button to increase the volume. USB Player Volume Decrease 01) Press the VOL- (25) button to decrease the volume. Operation of the Wireless Microphones Inserting/replacing the battery We recommend powering the microphone by means of 2 AA batteries. Fig. 07 Ordercode: D2608... -
Page 13: Tips For Achieving Maximum Performance
05) If you are unable to determine the cause of the problem, do not open the PSS-108 MKII, as this may damage the unit and the warranty will become void. 06) Return the device to your DAP Audio dealer. Ordercode: D2608... -
Page 14: Product Specification
Plastic cabinet, trapezoidal, metal grille, rubber foot, handle. Mounting: 36MM standard pole-mount Fuse: T1AL/250V Dimensions: 277 x 256 x 429 mm (LxWxH) Weight: 8,3 kg Design and product specifications are subject to change without prior notice. Website: www.Dap-audio.info Email: service@highlite.nl Ordercode: D2608... - Page 15 PSS-108 MKII Ordercode: D2608...
