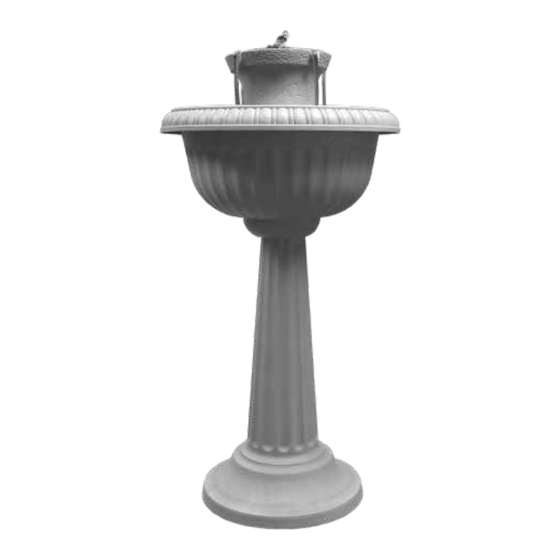

- Page 1 BERNINI TARANTO FOUNTAIN OWNER’S MANUAL 2022...
- Page 2 We think rights. However, registering your fountain will it’s important that you know what allow Bernini Fountains to better serve you you can expect from us. This is with any of your customer care needs. why we have a limited one year warranty on our fountains.
- Page 3 About Taranto: Taranto is a coastal city in southern Italy. It lies between the Mar Grande (Big Sea) and Mar Piccolo (Little Sea) bodies of water. Offering a fantastic range of ancient buildings and...
- Page 4 FOR YOUR BERNINI FOUNTAIN ™ Shower Umbrella Dancing Water Attachments Topper Base Rock/Sand Enclosure Large Bowl Base Sand Enclosure Push Nuts Battery Compartment, Water Tube & Water Pump Leveling Shim Base Items/Tools Required: (Not Included) . Philips Screwdriver . 4 D Cell Batteries...
-
Page 5: Table Of Contents
CONTENTS PAGE: 1. STEP 1: BASE & LARGE BOWL Base & Bowl Locking System 3. STEP 2: TOPPER INSTALLATION Installing The Topper 5. STEP 3: BATTERY INSTALLATION Inserting Batteries Into The Battery Compartment 7-8. Installing Batteries 9-10. Assembling Battery Compartment Housing & Battery Cover Assembling Water Pump &... -
Page 6: Step 1: Base & Large Bowl
BASE & LARGE BOWL You will need: Base Large Bowl... -
Page 7: Base & Bowl Locking System
BASE & BOWL LOCKING SYSTEM A look at how the base & bowl locking system works on your Fountain. Bottom of the Bowl Top of the Base Note: There are alignment guides on the bottom of the Large Bowl and there is an inset step on the top of the Base. -
Page 8: Step 2: Topper Installation
TOPPER INSTALLATION You will need: Topper Assembled Base & Topper Riser/Spacer Large Bowl... -
Page 9: Installing The Topper
INSTALLING THE TOPPER Inside of the Large Bowl Topper Riser/Spacer Note: The Topper Riser/Spacer sits at the bottom of the Large Bowl, elevates the Topper and provides a flat surface for the Topper to sit on in the Large Bowl. Step 1: Set the Topper onto the Topper Riser/Spacer (Figure A &... -
Page 10: Step 3: Battery Installation
BATTERY INSTALLATION You will need: Items/Tools Required: (Not Included) . Philips Screwdriver . 4 D Cell Batteries Fountain Battery Compartment Assembled Water Tube & Water Pump... -
Page 11: Inserting Batteries Into The Battery Compartment
INSERTING BATTERIES INTO THE BATTERY COMPARTMENT Figure 1b Figure 1a Figure 1c Battery Compartment Retaining Screws X2 Figure 1d Remember if you need help contact Customer Care: 1+ (619) 449-2392... -
Page 12: Installing Batteries
INSTALLING BATTERIES NOTE: The Battery Housing utilizes screws that are captive in the Battery Housing. When they are loosened they will stay within the Battery Housing and will not come loose (Arrow A & B Figure 2c). 1. (If Battery Compartment & Water Pump are installed into the Topper) Lift out of the Topper (Figure 1a). - Page 13 INSTALLING BATTERIES (CONTINUED) Locating Dowel Figure 2a Figure 2b Battery Cover O-Rings Figure 2c Remember if you need help contact Customer Care: 1+ (619) 449-2392...
-
Page 14: Assembling Battery Compartment Housing & Battery Cover
ASSEMBLING BATTERY COMPARTMENT HOUSING & COVER Figure 2d 1. Place Battery Cover on Battery Compartment Housing. Turn over assembled Battery unit and place on a flat, level surface. Using a Phillips screwdriver (not included) alternate tightening both screws down firmly. 2. -
Page 15: Assembling Water Pump & Tube To Battery Compartment
ASSEMBLING THE WATER PUMP & TUBE TO BATTERY COMPARTMENT Figure 3b Figure 3a 1. Connect one side of the Water Tube to the Water Pump and the other end of the tube to the bottom side of the Battery Compartment (A & B of Figure 3a). 2. - Page 16 CHANGING BATTERIES (CONTINUED) Figure 4b Figure 4a Figure 4d Figure 4c At this point, your fountain should look like the image on the left. Go to the next page to continue setting up your new Fountain. GO TO THE NEXT PAGE TO CONTINUE WITH SETUP OF YOUR FOUNTAIN.
-
Page 17: Step 4: Setting Up Your Fountain
SETTING UP YOUR FOUNTAIN You will need: WATER TO FILL YOUR Base Sand Enclosure Screws FOUNTAIN Shower Pirouette Umbrella Base Sand Enclosure Fountain Dancing Water Assembled Attachments... -
Page 18: Fill Your Fountain
FILL YOUR FOUNTAIN . Fill the large bowl until the water is 1 inch (2.5 centimeters) from the top of the bowl. . To dislodge any air bubbles from the pump, grab both sides of the large bowl and quickly shake your fountain for ten seconds. . -
Page 19: Weighing Down Your Fountain
OPERATING YOUR FOUNTAIN (CONTINUED) Programing The Fountain (Continued): . Press the B Button 2 times: Will program the fountain to run for 2 hours each day at the same time. The light (Figure 5), will flash twice to confirm your selection. . -
Page 20: Dancing Water Attachments
DANCING WATER ATTACHMENTS Figure 6a Shower Pirouette Umbrella Figure 6b Figure 6c DANCING WATER ATTACHMENTS: (OPTIONAL) You can put any of the Dancing Water Attachments on the Fountain whether the Fountain is running or is not running. . Select one of the Dancing Water Attachments and place on the outlet in the middle of the Battery Compartment (Figure 6a, 6b &... -
Page 21: Troubleshooting And Maintenance
TROUBLESHOOTING AND MAINTENANCE WATER PUMP CONNECTION If your fountain’s water pump tube becomes disconnected from pump and or Battery Compartment use these instructions to reconnect your water pump. Before beginning, remove the Battery Step 2: Rest the Battery and Pump Assembly from Topper. -
Page 22: Priming The Water Pump
PRIMING THE WATER PUMP If you find the Water Pump is running, but water is not flowing from your Fountain, you can try priming the Water Pump: . Turn off Fountain: Grab both sides of the Fountain and quickly shake your Fountain for ten seconds. -
Page 23: Cleaning Your Water Pump's Parts
CLEANING YOUR FOUNTAIN (CONTINUED) . To clean your fountain, drain of all water and disassemble . Use a mild soap and a soft cloth to clean the parts of your fountain. . DO NOT SCRUB YOUR FOUNTAIN, THIS COULD CAUSE DAMAGE TO THE FINISH OF YOUR FOUNTAIN. -
Page 24: Cold Storage
CLEANING YOUR WATER PUMP’S PARTS(CONTINUED) Step 3: Remove the impeller from its Step 4: Rinse the impeller and the chamber. impeller chamber until all debris has been removed. Reassembly is the reverse of disassembly. . Replace the impeller in the impeller chamber. . - Page 25 TROUBLESHOOTING AND MAINTENANCE PROBLEM SOLUTION Fountain is Check that batteries have a full charge: (See Changing not working Battery Section). Prime Pump as instructed. (Refer to Priming The Water Pump). Check batteries are installed correctly: (See Installing Battery Section). Check that batteries have a full charge: (See Changing Water Not Battery Section).
- Page 26 If within one (1) year this product fails due to defect in material or workmanship, Bernini™ will repair, replace or supply any defective part at their discretion. The purchaser must contact Bernini™ and provide a description...
- Page 27 BERNINI IMPORTANT BATTERY SAFETY INSTRUCTIONS DANGER: Do not store battery in an airtight container as it may cause an explosion. WARNING: When using electric devices, basic safety precautions should always be followed to reduce the risk of fire, electric shock...
- Page 28 BERNINI THANK YOU FOR SELECTING BERNINI FOUNTAINS Were excited to offer you the highest quality fountains with the reliability you need! We would love to hear if you have any sug- gestions or ideas that can be incorporated into new or enhanced features.
