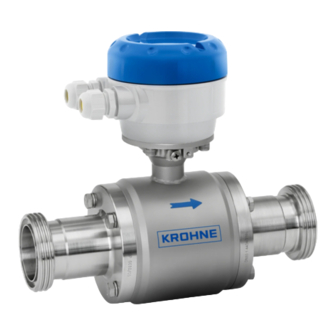

Electromagnetic flow sensor
for hygienic and sanitary applications
The documentation is only complete when used in combination with the relevant
documentation for the signal converter.
© KROHNE 07/2013 - 4002945701 - QS OPTIFLUX 6000 R05 en
Quick Start
Quick Start
Quick Start
Quick Start
