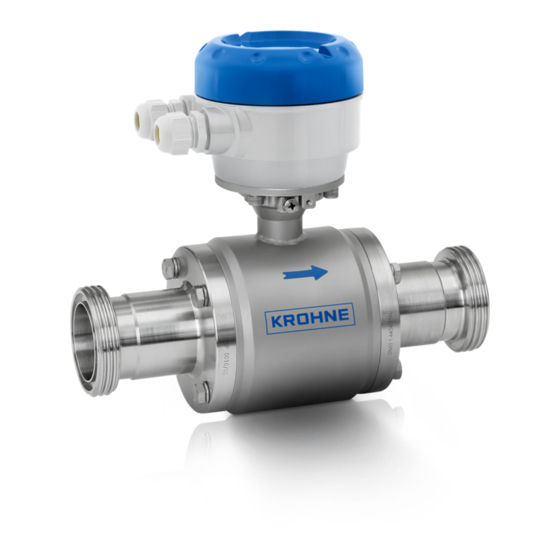

KROHNE OPTIFLUX 6000 Quick Start Manual

Electromagnetic flow sensor for hygienic and sanitary applications
Hide thumbs Also See for OPTIFLUX 6000:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Handbook, Quick Start Manual
OPTIFLUX 6000
OPTIFLUX 6000
OPTIFLUX 6000
OPTIFLUX 6000
Electromagnetic flow sensor
for hygienic and sanitary applications
The documentation is only complete when used in combination with the relevant
documentation for the signal converter.
© KROHNE 01/2012 - 7309542400 - QS OPTIFLUX 6000 R04 en
Quick Start
Quick Start
Quick Start
Quick Start

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OPTIFLUX 6000 and is the answer not in the manual?

Questions and answers

Related Manuals for KROHNE OPTIFLUX 6000

Summary of Contents for KROHNE OPTIFLUX 6000

  • Page 1 Quick Start Quick Start Electromagnetic flow sensor for hygienic and sanitary applications The documentation is only complete when used in combination with the relevant documentation for the signal converter. © KROHNE 01/2012 - 7309542400 - QS OPTIFLUX 6000 R04 en...

  • Page 2: Table Of Contents

    3.3 Virtual reference for IFC 300 (C, W and F version) ............16 3.4 Connection diagrams ..................... 16 4 Technical data 4.1 Measuring principle......................17 4.2 Dimensions and weights ....................18 5 Notes www.krohne.com 01/2012 - 7309542400 - QS OPTIFLUX 6000 R04 en...

  • Page 3: Safety Instructions

    If you need to return the device to the manufacturer or supplier, please fill out the form • contained on the CD-ROM and send it with the device. Unfortunately, the manufacturer cannot repair or inspect the device without the completed form. 01/2012 - 7309542400 - QS OPTIFLUX 6000 R04 en www.krohne.com...

  • Page 4: Installation

    Figure 2-1: Scope of delivery 1 Ordered flowmeter 2 Product documentation 3 Factory calibration report 4 CD-ROM with product documentation 5 Grounding rings (optional) 6 Signal cable (remote version only) www.krohne.com 01/2012 - 7309542400 - QS OPTIFLUX 6000 R04 en...

  • Page 5: Device Description

    Check for the correct supply voltage printed on the nameplate. 1 Name and address of the manufacturer 2 Type designation of the flowmeter and CE sign with number(s) of notified body / bodies 3 Calibration data 4 PED data 01/2012 - 7309542400 - QS OPTIFLUX 6000 R04 en www.krohne.com...

  • Page 6: Storage

    • Storage temperature: -50 ...+70°C / -58...+158°F 2.5 Transport Figure 2-3: Transport 2.6 Installation conditions 2.6.1 Inlet and outlet Figure 2-4: Recommended inlet and outlet 1 ≥ 5 DN 2 ≥ 2 DN www.krohne.com 01/2012 - 7309542400 - QS OPTIFLUX 6000 R04 en...

  • Page 7: Mounting Position

    INSTALLATION OPTIFLUX 6000 2.6.2 Mounting position Figure 2-5: Mounting position 2.6.3 Flange deviation CAUTION! Max. permissible deviation of pipe flange faces: ≤ 0.5 mm / 0.02" Figure 2-6: Flange deviation 01/2012 - 7309542400 - QS OPTIFLUX 6000 R04 en www.krohne.com...

  • Page 8: T-Section

    INSTALLATION OPTIFLUX 6000 2.6.4 T-section Figure 2-7: Distance after T-sections 1 ≥ 10 DN 2.6.5 Vibration Figure 2-8: Avoid vibrations 2.6.6 Magnetic field Figure 2-9: Avoid magnetic fields www.krohne.com 01/2012 - 7309542400 - QS OPTIFLUX 6000 R04 en...

  • Page 9: Mounting Requirements For Self-Draining

    3° 10° 3° 10° 3° 40...50 5° 3° 5° 3° 5° 3° 65...80 10° 3° 10° 3° 10° 3° 5° 3° 5° 3° 5° 3° 125...150 10° 3° 10° 3° 01/2012 - 7309542400 - QS OPTIFLUX 6000 R04 en www.krohne.com...

  • Page 10: Bends

    INSTALLATION OPTIFLUX 6000 2.6.8 Bends Figure 2-11: Installation in bending pipes Figure 2-12: Installation in bending pipes 2.6.9 Open discharge Figure 2-13: Installation before an open discharge www.krohne.com 01/2012 - 7309542400 - QS OPTIFLUX 6000 R04 en...

  • Page 11: Control Valve

    2.6.10 Control valve Figure 2-14: Installation before control valve 2.6.11 Air venting Figure 2-15: Air venting 1 ≥ 5 m 2 Air ventilation point 2.6.12 Pump Figure 2-16: Installation after pump 01/2012 - 7309542400 - QS OPTIFLUX 6000 R04 en www.krohne.com...

  • Page 12: Temperatures

    Clamp joint to ISO 2852 Clamp joint to DIN 32676 Clamp joint to Tri Clamp 1 140°C if ambient temperature ≤ 40°C 2 284°F if ambient temperature ≤ 104°F 3 Without 3A mark www.krohne.com 01/2012 - 7309542400 - QS OPTIFLUX 6000 R04 en...

  • Page 13: Mounting

    [mm] [Nm] PN 40 4x M6 PN 40 4x M8 PN 25 4x M8 PN 25 6x M8 PN 25 6x M8 PN 10 6x M10 PN 10 6x M10 01/2012 - 7309542400 - QS OPTIFLUX 6000 R04 en www.krohne.com...

  • Page 14: Installation Of Weld-On Versions

    • Remove the sensor body and the gaskets from the adapters by loosen the screws. • Weld the adapters completely to the pipe. • When the pipe is cold again, reinstall the gasket and mount the sensor. www.krohne.com 01/2012 - 7309542400 - QS OPTIFLUX 6000 R04 en...

  • Page 15: Electrical Connections

    The device must be grounded in accordance with regulations in order to protect personnel against electric shocks. Figure 3-1: Grounding options 1. Grounding option without grounding rings 2. Grounding option with grounding rings 01/2012 - 7309542400 - QS OPTIFLUX 6000 R04 en www.krohne.com...

  • Page 16: Virtual Reference For Ifc 300 (C, W And F Version)

    • Electrical conductivity ≥ 200 µS/cm • Electrode cable max. 50 m / 164 ft, type DS 3.4 Connection diagrams INFORMATION! For the connection diagrams please refer to the documentation of the applicable converter. www.krohne.com 01/2012 - 7309542400 - QS OPTIFLUX 6000 R04 en...

  • Page 17: Technical Data

    A signal converter is used to amplify the signal voltage, filter it and convert it into signals for totalising, recording and output processing. 1 Induced voltage (proportional to flow velocity) 2 Electrodes 3 Magnetic field 4 Field coils 01/2012 - 7309542400 - QS OPTIFLUX 6000 R04 en www.krohne.com...

  • Page 18: Dimensions And Weights

    DIN 11850 (row 2 or DIN 11866 row A) DN2.5...10 screwed adapter with DN10 process connections / DN15 screwed adapter Nominal size Dimensions [mm] Approx. weight Adapter Flowmeter [kg] 2.5...10 www.krohne.com 01/2012 - 7309542400 - QS OPTIFLUX 6000 R04 en...
  • Page 19 TECHNICAL DATA OPTIFLUX 6000 DN25...150 bolted adapter Nominal size Dimensions [mm] Approx. weight Adapter Flowmeter [kg] 20.6 132.6 61.3 61.3 41.8 10.9 66.8 11.2 59.3 18.4 66.3 29.5 64.3 44.3 01/2012 - 7309542400 - QS OPTIFLUX 6000 R04 en www.krohne.com...
  • Page 20 Rd 65 x 1/6" 91.3 Rd 78 x 1/6" 93.3 Rd 95 x 1/6" 77.8 Rd 110 x 1/4" 107.8 12.5 Rd 130 x 1/4" 109.3 21.8 10 On request www.krohne.com 01/2012 - 7309542400 - QS OPTIFLUX 6000 R04 en...
  • Page 21 DIN 11864-2A DIN 11864-2A DIN 11864-2A DN25...150 bolted adapter Nominal size Dimensions [mm] Approx. weight Adapter Flowmeter [kg] 45.8 83.3 83.3 63.8 14.5 122.8 18.6 115.3 28.2 10 On request 01/2012 - 7309542400 - QS OPTIFLUX 6000 R04 en www.krohne.com...
  • Page 22 DIN 32676 DIN 32676 DIN 32676 DIN 32676 DN25...100 bolted adapter Nominal size Dimensions [mm] Approx. weight Adapter Flowmeter [kg] 50.5 41.8 50.5 80.8 80.8 67.8 92.8 12.5 85.3 21.8 www.krohne.com 01/2012 - 7309542400 - QS OPTIFLUX 6000 R04 en...
  • Page 23 Dimensions [mm] Approx. weights Adapter Flowmeter [kg] 22.6 20.6 132.6 61.3 61.3 63.5 60.3 41.8 76.1 72.9 66.8 10.8 101.6 97.6 59.3 18.4 114.3 110.3 66.3 29.5 139.7 135.7 64.3 44.3 01/2012 - 7309542400 - QS OPTIFLUX 6000 R04 en www.krohne.com...
  • Page 24 Approx. weight Adapter Flowmeter [kg] 22.6 50,5 41.8 35.6 50,5 87.8 48.6 87.8 63.5 60.3 77.5 68.3 76.1 72.9 93.3 11.2 101.6 97.6 85.8 19.1 114.3 5 On request 139.7 www.krohne.com 01/2012 - 7309542400 - QS OPTIFLUX 6000 R04 en...
  • Page 25 2" 1.85 2.52 3.46 10.75 6.02 4.49 2½" 2.35 3.05 2.69 11.5 7.09 5.55 3" 2.85 3.54 3.68 14.25 7.52 5.98 12.5 4" 3.83 4.68 3.38 14.96 9.53 7.99 21.8 01/2012 - 7309542400 - QS OPTIFLUX 6000 R04 en www.krohne.com...
  • Page 26 Adapter Flowmeter [kg] 22.6 Rd 40-6 28.1 147.6 35.5 Rd 60-6 48.6 Rd 70-6 84.3 63.5 60.3 Rd 85-6 69.8 72.9 Rd 98-6 99.8 12.1 97.6 Rd 132-6 21.9 www.krohne.com 01/2012 - 7309542400 - QS OPTIFLUX 6000 R04 en...

  • Page 27: Notes

    NOTES OPTIFLUX 6000 01/2012 - 7309542400 - QS OPTIFLUX 6000 R04 en www.krohne.com...
  • Page 28 Measuring systems for the oil and gas industry • Measuring systems for sea-going tankers Head Office KROHNE Messtechnik GmbH Ludwig-Krohne-Str. 5 D-47058 Duisburg (Germany) Tel.:+49 (0)203 301 0 Fax:+49 (0)203 301 10389 info@krohne.de The current list of all KROHNE contacts and addresses can be found at: www.krohne.com...
