U s e r M a n u a l

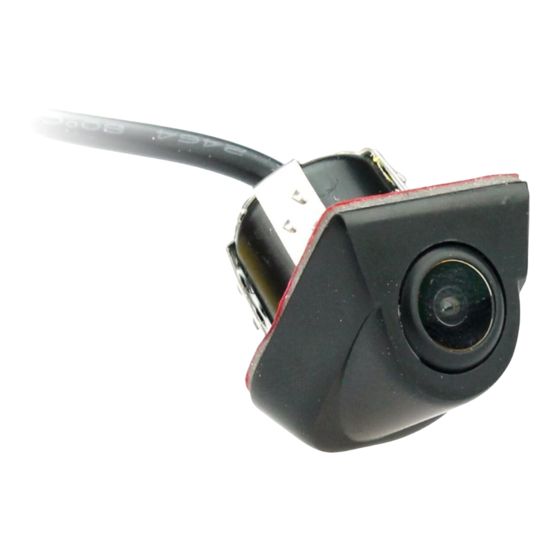

CAM-17
PRODUCT FEATURES:
Image Sensor: 1099 HD CCD
TV Lines: 560
Resolution: 976 x 496
Minimum Illumination: 0.1 Lux
TV System: NTSC
Waterproof Rating: IP68
Horizontal Angle: 170 Degrees
Vertical Angle: 120 Degrees
Parking Lines: Yes (Removable)
Image Adjustment: Yes (Mirror/Normal)
Enhanced Performance In Low Light: Yes
Video Output: 1.0V p-p 75ohm
Operating Voltage: 12V DC (Negative Ground)
Current Consumption: 120mA @ 13.8V
Operating Temperature: -20 Degrees C to +70 Degrees C
DISCLAIMER:
Prior to Installation
Read the manual prior to installation. Technical knowledge is necessary for installation.
Please ensure you use the correct tools to avoid damage to the vehicle or product.
Connects2 can not be held responsible for the installation of this product.
Technical Support
Connects2 want to provide a fast and suitable resolution should you encounter any
technical issues. With this in mind, when contacting Connects2, try to provide as
much Information as possible. This will speed up the process and help us to help you.
Please use our dedicated online technical support centre: support.connects2.com
www.c2vision-eu.com
Universal Camera
Fixed Angle Mount, Drill to Fit in Horizontal Surface
Advertisement
Table of Contents
Related Manuals for Connects2 Vision CAM-17
Summary of Contents for Connects2 Vision CAM-17
- Page 1 Connects2 can not be held responsible for the installation of this product. Technical Support Connects2 want to provide a fast and suitable resolution should you encounter any technical issues. With this in mind, when contacting Connects2, try to provide as much Information as possible.
- Page 2 7. To remove the parking line feature, cut the small Blue looped wire which is located on the camera connection cable. Subscribe to our YouTube Channel for installation guides and tips... www.youtube.com/connects2 www.c2vision-eu.com...
