Landscape Forms Connect 2.0 Installation Manual

Connect 2.0
Shelter, 8ft solar unit, louvered metal roof assembly
Installation Guide
8ft

Tools Required

• Safety glasses
• protective padding
• 5/32" hex key
• ladder
• T55 torx driver
• Proper personnel for lifting panels (75lbs)
• glass handling equipment, to lift 150lbs

Order of operations:

1. Anchor kit installation
2. Frame assembly
3. Roof assembly
4. Wall glass assembly
5.

Wiring connections

GLASS STORAGE & HANDLING! The glass will arrive to the job site on
separate pallets from the metal components. Handling of the glass panels
is potentially hazardous and proper procedures should be followed. The
crate for the glass panels should be slightly elevated on the front side to
prevent the glass panels from falling forward when the front is removed
from the crate.
ASSEMBLE WITH CARE! Pangard II Polyester Powdercoat is a strong, long-lasting
finish. To protect this finish during assembly, place unwrapped powdercoated parts on
packaging foam or other non-marring surface. Do not place or slide powdercoated parts
on concrete or other hard or textured surface – this will damage the finish causing rust to
occur. Use touch-up paint on any gouges in the finish caused by assembly tools.

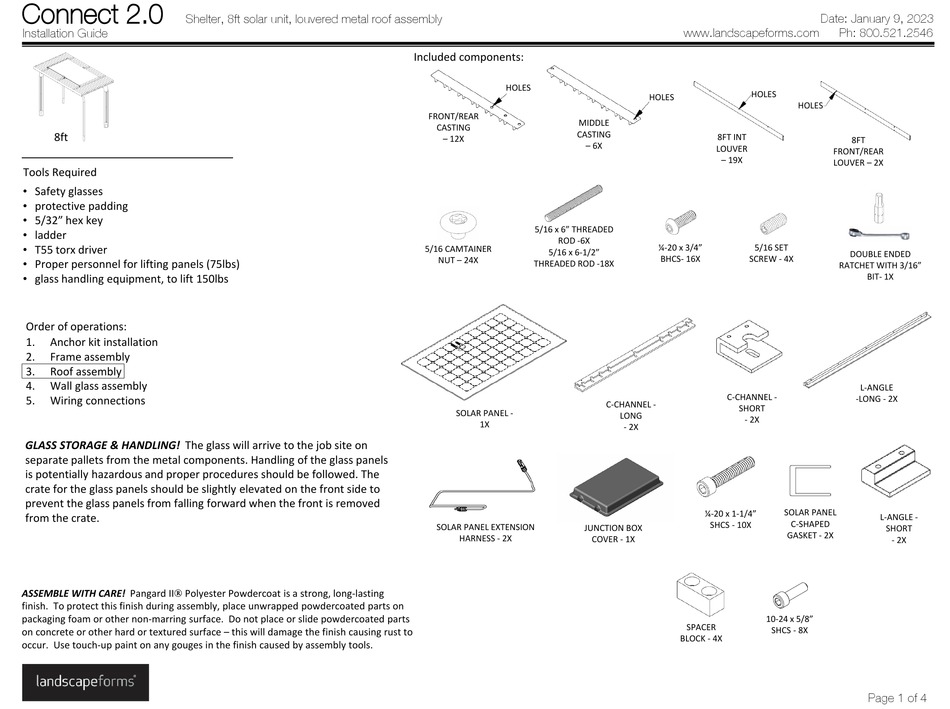

Included components:

HOLES
FRONT/REAR
MIDDLE
CASTING
CASTING
– 12X
– 6X
5/16 x 6" THREADED
ROD -6X
5/16 CAMTAINER
5/16 x 6-1/2"
NUT – 24X
THREADED ROD -18X
SOLAR PANEL -
1X
SOLAR PANEL EXTENSION
JUNCTION BOX
HARNESS - 2X COVER - 1X
www.landscapeforms.com
HOLES
HOLES
8FT INT
LOUVER
– 19X
¼-20 x 3/4" 5/16 SET
BHCS- 16X SCREW - 4X
C-CHANNEL -
C-CHANNEL -
SHORT
LONG
- 2X
- 2X
SOLAR PANEL
¼-20 x 1-1/4"
SHCS - 10X
10-24 x 5/8"
SPACER
SHCS - 8X
BLOCK - 4X
Date: January 9, 2023
Ph: 800.521.2546
HOLES
8FT
FRONT/REAR
LOUVER – 2X
DOUBLE ENDED
RATCHET WITH 3/16"
BIT- 1X
L-ANGLE
-LONG - 2X
L-ANGLE -
C-SHAPED
SHORT
GASKET - 2X
- 2X
Page 1 of 4
