Landscape Forms Typology Assembly Manual

Typology
bench, wooden anchor template assembly
Assembly Guide
Tools Required
• rubber mallet
• Anchors not included. (2) anchors per support required, recommend non-corrosive,
maximum Ø3/8-16 x 5" length, with concrete grip anchors
• hammer drill with appropriate size bit for anchors

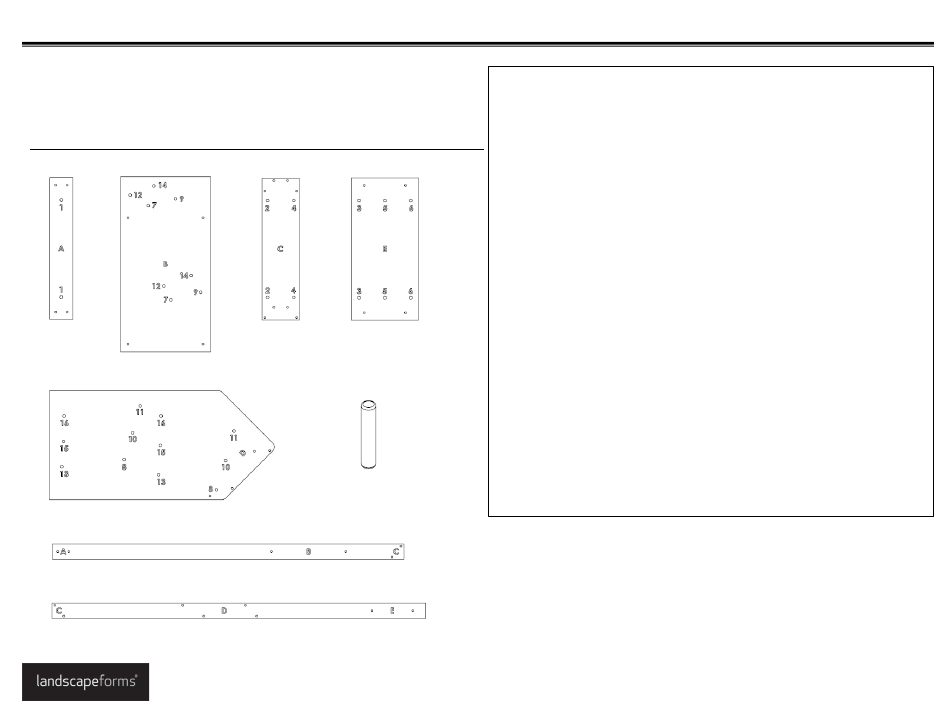

Included components:
BOARD A
QTY 1
BOARD B
QTY 1
BOARD D
QTY 1
BOARD C BOARD E
QTY 1 QTY 1
ؼ" x 1-1/4"
DOWEL
QTY 24
BOARD ABC
QTY 2
BOARD CDE
QTY 2
TEMPLATE ASSEMBLY STEPS:
1. Layout boards A-E in approximate locations as shown in Fig. 1. Letter designations
should all be readable from the same direction.
2. Add boards ABC and CDE on top of boards A through E, see Fig. 2.
3. Align holes in all boards and insert 24 dowels as shown in Fig. 2.
TEMPLATE USAGE INSTRUCTIONS:
1. Template should be used according to bench layout plans, provided by others. Plan
is read from left to right, as viewing the top (plan) view of the bench layout.
2. Single benches that do not have any shared supports will always be an end
segment and an end segment on the chart.
3. Benches that have adjoining legs with multiple sections of seating will use some
combination of end segment and intermediate segments. Refer to Fig. 3 for
examples.
4. For small or large curve benches, it may be necessary to rotate the wooden
template 180 degrees, depending on the direction of the bench curve. Refer to Fig.
5 for examples. Numbers noted on Fig. 4 near the support match the number next
to the corresponding holes on the template.
5. Set the wooden template in place and mark the three sets of holes for the first
bench section. Refer to chart for the correct hole numbers, depending on bench
section configuration. Refer to bench layout plan to determine each bench section.
6. Drill the holes according to anchor manufacturer's recommendation.
7. Clear holes of debris.
8. Move wooden template to drill the next set of holes. Align the first set of holes in
the template with the last set of holes drilled from the previous section. Refer to
Fig. 5 for example.
9. Drill the next two holes. Clear holes of debris.
10. Continue moving the wooden template until all holes have been drilled.
11. Refer to bench installation guide for next steps.
Date: January 20, 2022
www.landscapeforms.com Ph: 800.521.2546
Page 1 of 5
