Landscape Forms Connect 2.0 Installation Manual

Connect 2.0
Shelter, Frame assembly
Installation Guide
12ft
8ft
Order of operations:
1. Anchor kit installation
2. Frame assembly
3. Roof assembly
4. Wall glass assembly
5. Wiring connections

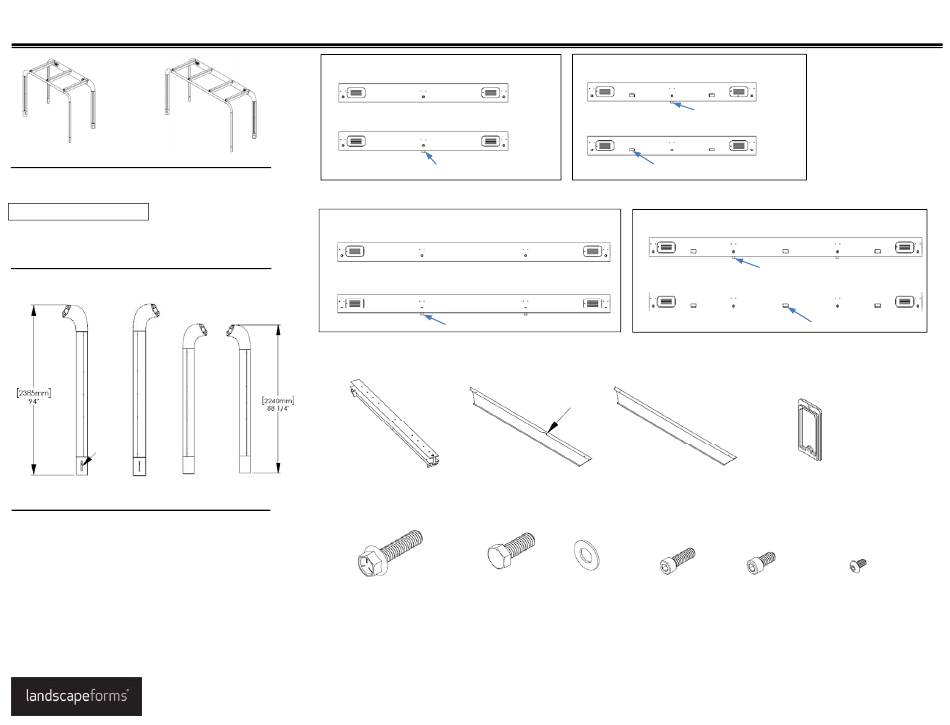

Included components:
Light
location
FRONT REAR
FRONT
LEFT LEFT
RIGHT
Tools Required
• Safety glasses
• protective padding
• 9/16" socket wrench
• 3/4" open end/12 pt box end wrenches
• 3/16" hex key
• 3/32" hex key
• 4ft level
• ladder
• proper personnel for lifting assembled frame components
Rear horizontal, for no glass
Rear horizontal, for back glass
Rear horizontal, 8ft: 1 included
Rear horizontal, for no glass
Rear horizontal, for back glass
Rear horizontal, 12ft: 1 included
RAFTER
8FT – 3X
REAR
12FT – 4X
RIGHT
3/8‐16 x 1‐1/2"
FLANGED HD – 8X
(horizontals)
ASSEMBLE WITH CARE! Pangard II Polyester Powdercoat is a strong, long‐lasting finish. To protect this finish during assembly, place
unwrapped powdercoated parts on packaging foam or other non‐marring surface. Do not place or slide powdercoated parts on
concrete or other hard or textured surface – this will damage the finish causing rust to occur. Use touch‐up paint on any gouges in the
finish caused by assembly tools.
Front horizontal, for front glass
Front horizontal, for no glass
Bracket for wall panel
Front horizontal, 8ft: 1 included
Bracket for wall panel
NOTCH
LEFT RAFTER
COVER
8FT – 3X
12FT – 4X
3/8‐16 x 1" HEX HD 3/8 WASHER
– 16X ‐ 16X
(rafters) (rafters)
Date: November 6, 2018
www.landscapeforms.com
Bracket for wall panel
Up light
Front horizontal, for front glass
Bracket for wall panel
Front horizontal, for no glass
Up light
Front horizontal, 12ft: 1 included
RIGHT RAFTER
FOOT COVER PLATE
COVER
– 4X
8FT – 3X
12FT – 4X
¼‐20 x 1/2"
¼‐20 x 3/4"
SHCS – 16X SHCS – 24X
(rafter covers) (vertical fillers)
Ph: 800.521.2546
#8‐32 x 5/16"
SBHCS – 24X
(rafter lights)
Page 1 of 2
