Landscape Forms SANTA&COLE urbidermis Bancal Bench Installation Manual

Bancal
Bench
Installation Guide
Bench options
Included components:
Backless support Backless support
no arm with arm
RH RH LH
No arm with arm No arm
Backed supports
Tools required:
• #3 Phillips screwdriver
• For anchor holes: Ø7/16" drill
• Chemical anchoring adhesive, if specified
• Proper personnel for lifting bench
ASSEMBLE WITH CARE! Pangard II Polyester Powdercoat is a strong, long-lasting finish.
To protect this finish during assembly, place unwrapped powdercoated parts on packaging
foam or other non-marring surface. Do not place or slide powdercoated parts on concrete
or other hard or textured surface – this will damage the finish causing rust to occur. Use
touch-up paint on any gouges in the finish caused by assembly tools.
Outside board/ Interior board
Backrest board
Board attachment
LH
hardware, 1/4-20 x 1"
M10x120mm
with arm
truss head screw, 4 per
threaded rod
board

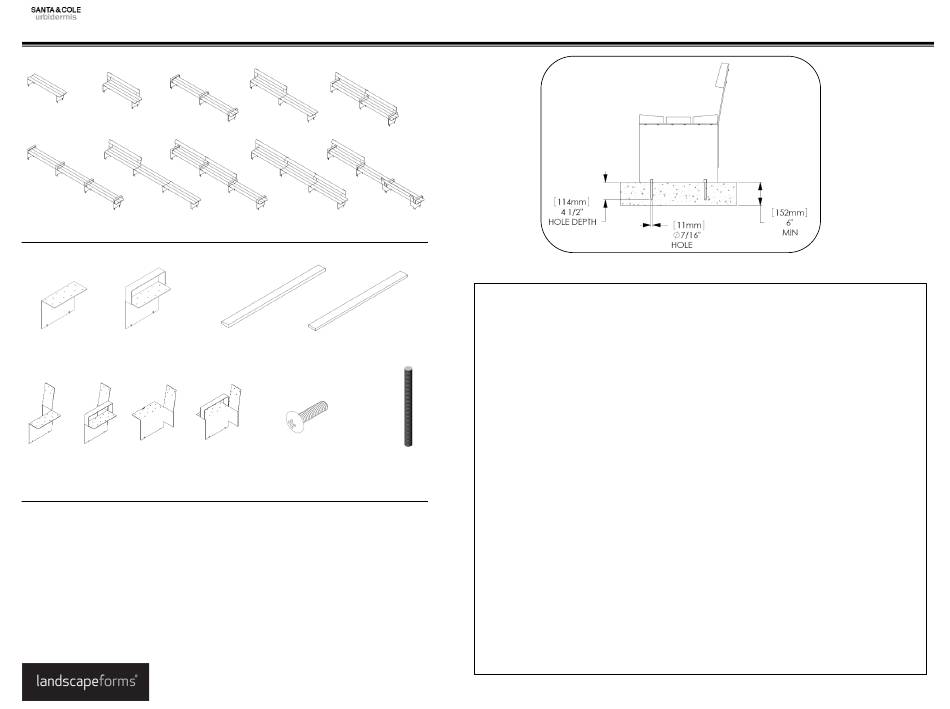

Fig. 1 – Drilled hole size, board orientation
INSTALLATION PROCEDURE:
Note: Interior seat boards are rectangular. Remaining boards are wedge-shaped. Seat
boards and backrest boards may be different lengths. Refer to Fig. 8 for proper location
of boards, depending on bench length. Backed supports are stamped "RH" for right-
hand and "LH" for left-hand. Verify proper orientation before drilling holes.
1. Drill holes as shown in Fig. 2 as required per specified bench. Clear holes of debris.
2. Install threaded rods into supports.
3. Position first two supports so threaded rods drop into the drilled holes as shown in
Fig. 4. Refer to Fig 8 for support placement for different bench styles.
4. Fasten seat boards and back board (if specified) as shown in Fig. 1, using board
attachment hardware as shown in Fig. 3. Leave screws slightly loose until entire
bench has been assembled.
5. Set next support in position and attach boards.
6. Tighten all screws and remove any burrs from screw heads.
For optional anchoring adhesive installation:
1. Follow steps 1 and 2 above.
2. Position first two supports as close to the drilled holes as possible without blocking
access for dispensing adhesive. Refer to Fig 8 for support placement for different
bench styles.
3. Follow steps 4 and 5 above.
4. Clean the drilled holes according to adhesive manufacturer's instructions.
5. Dispense adhesive into the holes, filling from the bottom to 2-1/2" from the top.
6. Using proper personnel, move the bench into position. Adhesive should rise to the
top of the hole. Wipe away excess adhesive from supports.
7. Tighten all screws and remove any burrs from screw heads.
