Connect 2.0
Shelter, 8ft solar unit, glass roof assembly
Installation Guide
Order of operations:
1.
Anchor kit installation
2.
Frame assembly
3.
Roof assembly
4.
Wall glass assembly
5.
Wiring connections
Tools Required
• Safety glasses
• protective padding
• 3/16" hex key
• ladder
• proper personnel for lifting panels (75lbs)
• glass handling equipment, to lift 150lbs
GLASS STORAGE & HANDLING! The solar panel glass
will arrive to the job site on a separate pallet from the
metal components. Handling of the glass solar panel is
potentially hazardous and proper procedures should
be followed.
ASSEMBLE WITH CARE! Pangard II Polyester Powdercoat is a strong, long‐lasting finish. To protect this finish
during assembly, place unwrapped powdercoated parts on packaging foam or other non‐marring surface. Do
not place or slide powdercoated parts on concrete or other hard or textured surface – this will damage the
finish causing rust to occur. Use touch‐up paint on any gouges in the finish caused by assembly tools.

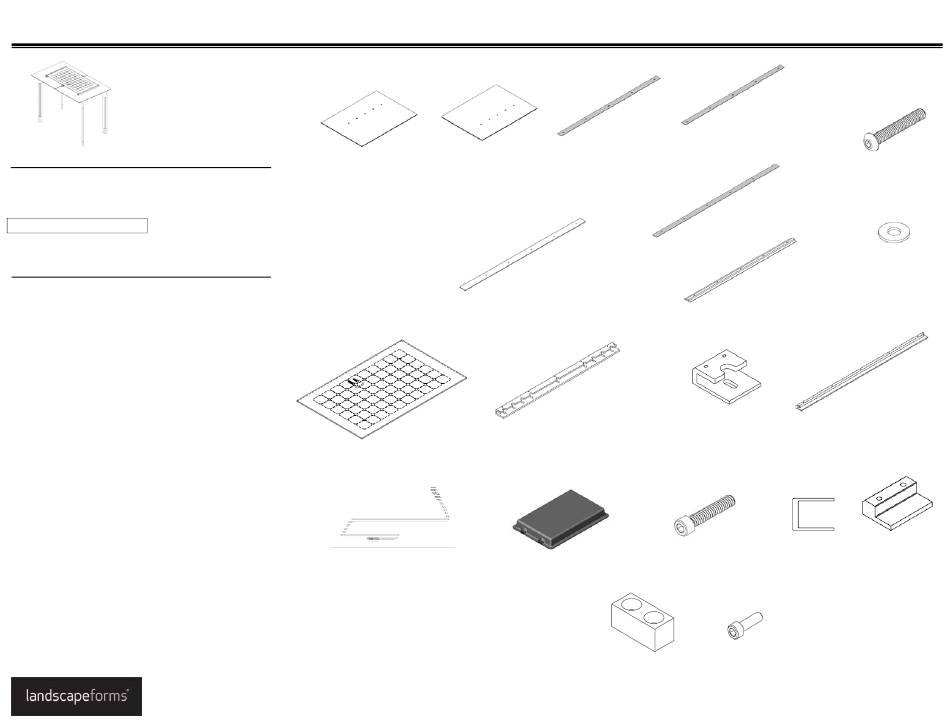

Included components:
LEFT END ROOF
RIGHT END ROOF
PANEL – 1X
PANEL – 1X
P/N 61951
P/N 61950
SOLAR PANEL ‐
1X
SOLAR WIRING
CONNECTOR ‐ 2X
www.landscapeforms.com
ROOF
GASKET
48‐7/8" –
2X
ROOF PANEL TOP
STRIP ‐
1X
C CHANNEL ‐
LONG
‐ 2X
¼‐20 x 1‐1/4"
JUNCTION BOX
SHCS ‐ 10X
COVER ‐ 1X
SPACER BLOCK
‐ 4X
Date: March 4, 2019
Ph: 800.521.2546
ROOF
GASKET
51‐5/8" –
2X
5/16‐18 x 2" BHCS
‐ 15X
ROOF GASKET 60"
‐ 1X
5/16 WASHER
‐ 15X
ROOF T GASKET
‐ 1X
L CHANNEL
‐LONG ‐ 2X
C CHANNEL ‐
SHORT
‐ 2X
SOLAR PANEL
L CHANNEL ‐
C‐SHAPED
GASKET ‐ 2X
10‐24 x 5/8"
SHCS ‐ 8X
Page 1 of 4
SHORT
‐ 2X
Advertisement
Related Manuals for Landscape Forms Connect 2.0
Summary of Contents for Landscape Forms Connect 2.0
- Page 1 Connect 2.0 Shelter, 8ft solar unit, glass roof assembly Date: March 4, 2019 Installation Guide www.landscapeforms.com Ph: 800.521.2546 Included components: ROOF GASKET ROOF 51‐5/8” – GASKET 48‐7/8” – LEFT END ROOF RIGHT END ROOF PANEL – 1X 5/16‐18 x 2” BHCS PANEL – 1X P/N 61951 Order of operations: ‐ 15X P/N 61950 Anchor kit installation Frame assembly ROOF GASKET 60” ...
- Page 2 Connect 2.0 Shelter, 8ft solar unit, glass roof assembly Date: March 4, 2019 Installation Guide www.landscapeforms.com Ph: 800.521.2546 INSTALLATION: Glass roof panels should be installed with the frosted side down. 10‐24 x 5/8” Install panel stop blocks on rear ends of c‐channels, see Fig. 1, found in hardware pack #62946. SHCS Place gaskets on rafters. T‐gasket is installed in center location, See Fig.2. Lubricate gaskets with soapy water. Place roof panels in position. See Fig. 2 for orientation of panels. Place gaskets on top of roof panels. See Fig. 2 for location of different length gaskets. PANEL STOP Place metal top strip in position on top of gasket. See. Fig. 2 for location. Place C channel extrusions on roof, with open channels facing each other as shown in Fig. 5. Center the pair of extrusions on the roof and then make small adjustments to the width between the inside faces of the extrusions until the dimension is 71‐1/2”. Install hardware to hold C channel extrusions in place loosely. Adjust position of the C channel until the width between them is 71‐1/2” on both ends and the cross diagonal dimensions measure the same. Distance THREADED HOLES between short c‐channels should be 42‐9/16”. See Fig 5. ON C‐CHANNEL Secure metal top strip and C‐channel extrusions using washers and screws from hardware pack #62604. Check alignment of front of roof panels before tightening fully. Hand‐tighten all screws to max 50 in‐lbs. Trim off excess self‐adhesive gasket if necessary. Fig. 1 – install panel stops Connect solar panel extension harnesses as shown in Fig. 4.
- Page 3 Connect 2.0 Shelter, 8ft solar unit, glass roof assembly Date: March 4, 2019 Installation Guide www.landscapeforms.com Ph: 800.521.2546 5/16‐18 BHCS ‐15X LONG C‐ SHORT C‐ 5/16” WASHER GASKET ‐ GASKET ‐ RIGHT END ‐15X GLASS PANEL C CHANNEL – P/N 61950 SHORT – 2X C CHANNEL WITH NOTCHES ‐ GASKET GASKET – 51‐5/8” 48‐7/8” ‐ ‐2X 13”...
- Page 4 Connect 2.0 Shelter, 8ft solar unit, glass roof assembly Date: March 4, 2019 Installation Guide www.landscapeforms.com Ph: 800.521.2546 ¼‐20 x 1‐1/4” L‐CHANNEL SHCS SOLAR PANEL 5/16‐18 x 2” PANEL STOP SBHCS BLOCK 5/16” WASHER Fig. 4 – install junction box C‐CHANNEL Fig. 5 – detail view of panel install GASKET Fig. 7 – detail view of panel install SOLAR PANEL ¼‐20 x 1‐1/4” SHCS WIRES IN ...
