Connect 2.0
Shelter, wiring guide for hard-wired unit
Installation Guide
Order of operations:
1.
Anchor kit installation
2.
Frame assembly
3.
Roof assembly
4.
Wall glass assembly
5.
Wiring connections
Tools Required
• wiring tools
• 3/32" hex key
• 3/16" hex key
• 5/16" Socket wrench
• Flat head screwdriver or ¼" socket wrench
Included components:
• Uplights, with wiring harnesses, pre‐installed in front horizontal beam
• Down lights, with wiring harness and connectors, one per rafter
• Wayfinding lights, with wiring harness, two per unit
• SJOOW cord, black outer insulation, 16 gauge, 3 wire, 150in length
ASSEMBLE WITH CARE! Pangard II Polyester Powdercoat is a strong, long‐lasting
finish. To protect this finish during assembly, place unwrapped powdercoated parts on
packaging foam or other non‐marring surface. Do not place or slide powdercoated
parts on concrete or other hard or textured surface – this will damage the finish causing
rust to occur. Use touch‐up paint on any gouges in the finish caused by assembly tools.
www.landscapeforms.com
DRIVER
PLATE
UPLIGHTS,
PRE‐INSTALLED
DOWNLIGHT
WAYFINDING
LIGHT

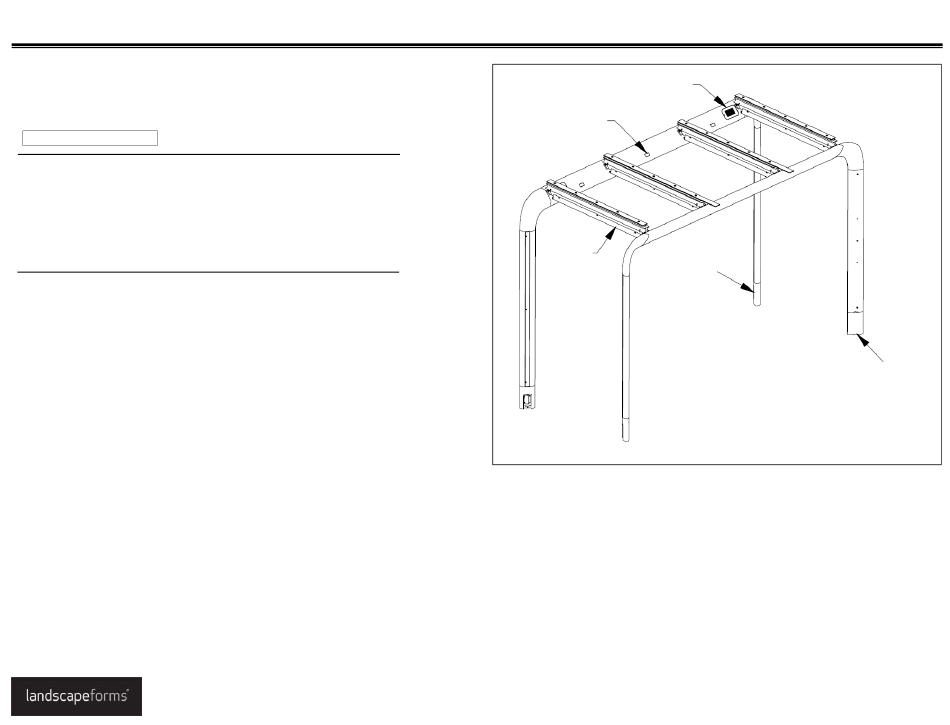

Fig. 1 – lighting component locations
Date: December 17, 2018
Ph: 800.521.2546
RIGHT
FRONT
POST
RIGHT
CONDUIT
REAR
LOCATION
POST
Page 1 of 4
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Landscape Forms Connect 2.0
Summary of Contents for Landscape Forms Connect 2.0
- Page 1 Connect 2.0 Shelter, wiring guide for hard-wired unit Date: December 17, 2018 Installation Guide www.landscapeforms.com Ph: 800.521.2546 Order of operations: Anchor kit installation DRIVER Frame assembly PLATE Roof assembly UPLIGHTS, Wall glass assembly PRE‐INSTALLED Wiring connections Tools Required • wiring tools • 3/32” hex key • 3/16” hex key • 5/16” Socket wrench • Flat head screwdriver or ¼” socket wrench DOWNLIGHT WAYFINDING LIGHT Included components:...
- Page 2 Connect 2.0 Shelter, wiring guide for hard-wired unit Date: December 17, 2018 Installation Guide www.landscapeforms.com Ph: 800.521.2546 INSTALLATION: Run 3‐wire 16 gauge cord from rear right upper corner, through grommet and into access hole, down the right vertical post to line‐in voltage wiring. Do not connect to line‐in voltage. See Figs. 2 and 3. First rafter downlight: make connection at front horizontal to quick disconnect. Run 16 gauge jacketed cord from rear right upper corner along bottom of rafter. Push cord through grommet, along with rafter light connection. See Fig. 4. Using a 3/32” hex key, attach downlight to rafter using (6) #8‐32 x 5/16 socket button head cap screws, located in hardware pack #62599. Do not overtighten screws. Install remaining rafter downlights: make connection to quick disconnects. Push connection through nearest grommet on front horizontal beam. Attach downlight to rafter, see Fig. 4. Unused grommets on rear horizontal beam can be sealed with clear or black silicone (supplied by others). Install left and right side rafter skins, with the sharper angle of the skin toward the front of the rafter. See Fig. 5. Rafter skins have a boss on the bottom flange that RIGHT FRONT hooks into the downlight, see Fig. 5. Hook the bottom of the skin into position and REAR POST then rotate the top of skin up to the rafter beam. Using a 3/16” hex key, install (2) ¼‐20 x ¾” socket head cap screws, located in hardware pack #62599 at the top. Fig. 2 – install 16 gauge jacketed cord Tighten until gap between light and rafter skin is gone and rafter skin does not ...
- Page 3 Connect 2.0 Shelter, wiring guide for hard-wired unit Date: December 17, 2018 Installation Guide www.landscapeforms.com Ph: 800.521.2546 RAFTER (2) ¼‐20 x ½ SOCKET HEAD CAP SCREW WIRING HARNESS FOR WAYFINDING FRONT LIGHT HORIZONTAL BEAM COVER PLATE GROMMET ATTACHMENT POINT (3 PER SIDE) Fig. 7 – Install wayfinding QUICK WAYFINDING DOWNLIGHT light cover plate LIGHT ...
- Page 4 Connect 2.0 Shelter, wiring guide for hard-wired unit Date: December 17, 2018 Installation Guide www.landscapeforms.com Ph: 800.521.2546 GROUNDING PIGTAIL Fig. 9 – wiring connections 16ga JACKETED CORD, CONNECT TO TERMINAL BLOCK (2) ¼‐20 x ½ SOCKET HEAD CAP SCREWS Fig. 8 – Install driver plate assembly, front right access hole Fig. 10 – wiring diagram Page 4 of 4...
