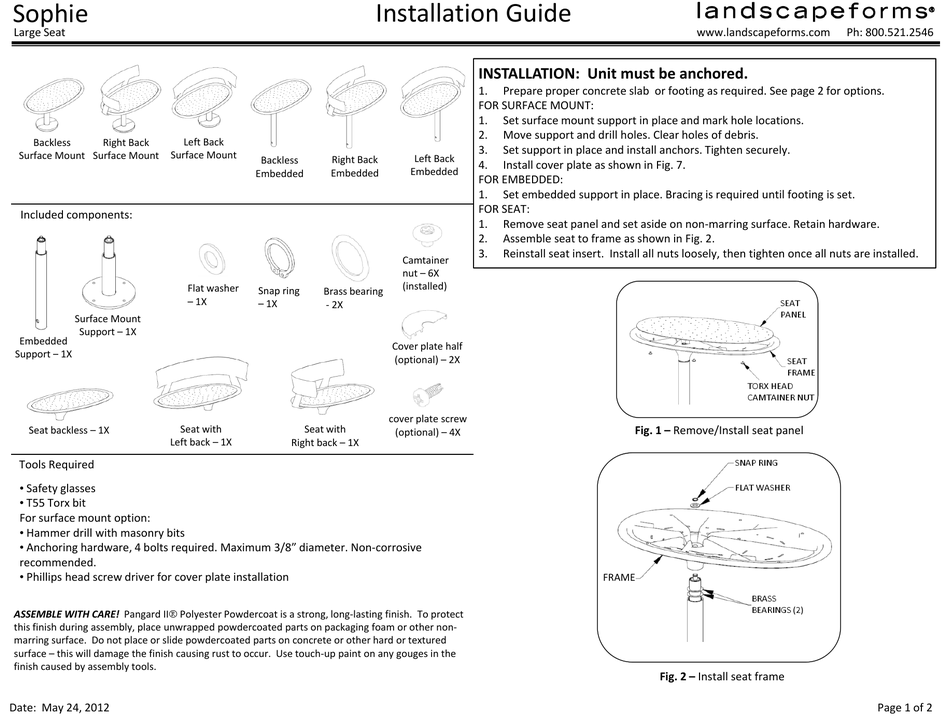

Landscape Forms Sophie Installation Manual

Sophie
Large Seat
Left Back
Backless Right Back
Surface Mount
Surface Mount Surface Mount
Included components:
Flat washer
– 1X
Surface Mount
Support – 1X
Embedded
Support – 1X pp
Seat with
Seat backless – 1X
Left back – 1X
Tools Required
• Safety glasses
• T55 Torx bit
For surface mount option:
• Hammer drill with masonry bits
• Anchoring hardware, 4 bolts required. Maximum 3/8" diameter. Non‐corrosive A h i h d 4 b l
recommended.
• Phillips head screw driver for cover plate installation
ASSEMBLE WITH CARE! Pangard II® Polyester Powdercoat is a strong, long‐lasting finish. To protect
this finish during assembly, place unwrapped powdercoated parts on packaging foam or other non‐
marring surface. Do not place or slide powdercoated parts on concrete or other hard or textured f l l d
surface – this will damage the finish causing rust to occur. Use touch‐up paint on any gouges in the
finish caused by assembly tools.
Date: May 24, 2012
Right Back
Backless
Embedded Embedded
Embedded Embedded
Snap ring
Brass bearing
– 1X
‐ 2X
Seat with
Right back – 1X
i d M i 3/8" di N
d d h h d
Installation Guide
INSTALLATION: Unit must be anchored.
1. Prepare proper concrete slab or footing as required. See page 2 for options.
FOR SURFACE MOUNT:
1. Set surface mount support in place and mark hole locations.
2. Move support and drill holes. Clear holes of debris.
3. Set support in place and install anchors. Tighten securely.
Left Back
4. Install cover plate as shown in Fig. 7.
Embedded Embedded
FOR EMBEDDED:
1. Set embedded support in place. Bracing is required until footing is set.
FOR SEAT:
1. Remove seat panel and set aside on non‐marring surface. Retain hardware.
2. Assemble seat to frame as shown in Fig. 2.
3. Reinstall seat insert. Install all nuts loosely, then tighten once all nuts are installed.
Camtainer
nut – 6X
(installed)
Cover plate half
(optional) – 2X (optional) 2X
cover plate screw
(optional) – 4X
i
d
www.landscapeforms.com Ph: 800.521.2546
SEAT
PANEL
TORX HEAD
CAMTAINER NUT
Fig. 1 – Remove/Install seat panel
SNAP RING
FLAT WASHER
FRAME
BRASS
BEARINGS (2)
Fig. 2 – Install seat frame
SEAT SEAT
FRAME
Page 1 of 2
