Summary of Contents for PRO SIGNAL PSG3526

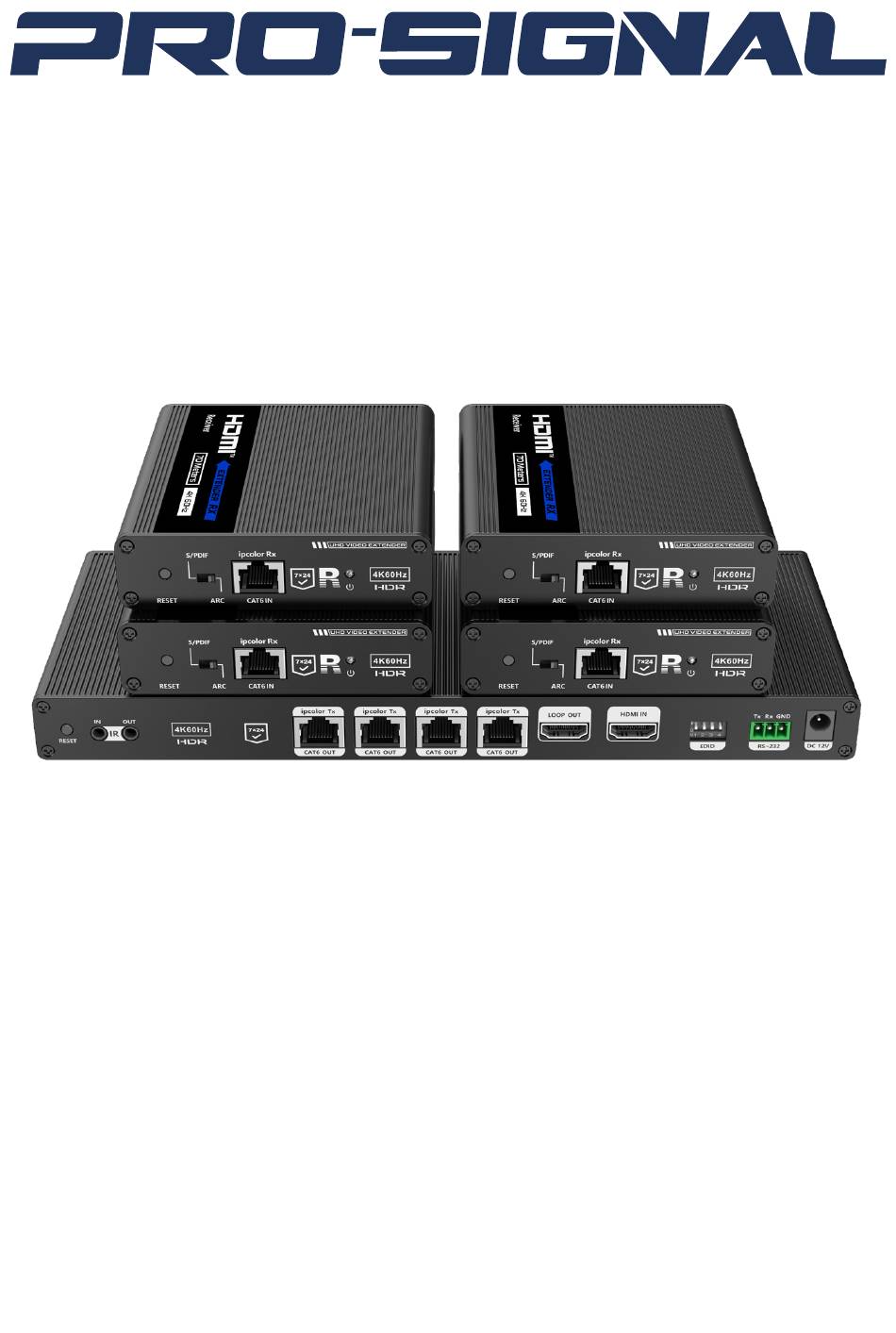

- Page 1 1X4 4K 60HZ HDMI SPLITTER EXTENDER POC PSG3526 The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
-
Page 2: Important Safety Information
Please read these instructions carefully before use and retain for future reference. IMPORTANT SAFETY INFORMATION When using electrical appliances basic safety precautions should always be followed. • To prevent fire or shock hazard, do not expose this product to rain or moisture. •... -
Page 3: Installation
OVERVIEW • This product is a 1 input 4 output extender splitter kit, which integrates the functions of distribution and extension. • It distributes 1 HDMI input signal to 4 identical signal outputs, extends these signals up to 70 meters, and supports 4K 60Hz resolution. •... -
Page 4: Reset Button
Receiver (RX) RECEIVER ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ Reset Button - Press the button to restart the device Audio Switch - Choose the audio source S/PDIF from source device or ARC from ① Restart the device Reset button TV (receiver end) Choose the audio source (output from the RJ45 input - Connect to transmitter with CAT6/6A/7 network cable... - Page 5 2. Connection Video Source HDMI OUT HDMI Display HDMI IN Network Cable HDMI OUT HDMI Display HDMI OUT HDMI Display HDMI OUT HDMI Display HDMI Display IR User Guide: • IR receiver extension cable should be connected to the IR IN port of the receiver. •...
-
Page 6: Function Descriptions
Control Commands Function Descriptions ES XX On (Enter) Turn on the network signal output port(s), choose from “01” to “04” (the network ports from right to left are: 01, 02, 03, 04) “All” means all four ports. ES XX Off (Enter) Turn off the network signal output port(s), choose from “01”... - Page 7 Switch Status EDID Information 4K@60Hz 2CH 4K@60Hz 5.1CH 4K@60Hz 7.1CH 4K@60Hz HDR 7.1CH 4K@30Hz 2CH 4K@30Hz 5.1CH 4K@30Hz 7.1CH 4K@30Hz HDR 7.1CH 1080p@60Hz 2CH 1080p@60Hz 5.1CH 1080p@60Hz 7.1CH 1080i@60Hz 2CH 1080i@60Hz 5.1CH 1080i@60Hz 7.1CH 1080p@60Hz HDR7.1CH Auto • Auto: Auto output at a resolution compatible with all displays. SPECIFICATIONS Item Specification...
-
Page 8: Cleaning And Maintenance
Audio formats LPCM/DTS-HD/DTS-Audio/Dolby Digital Support IR passback function (20KHz~60KHz) RS-232 3 pin: TxD-RxD-GND, follows RS-232 levels Working temperature -20~60 Storage temperature -30~70 Humidity (no condensation) 0~90% RH Protection ESD protection 1a Contact discharge level 3 1b Air discharge level 3 Implementation of the standard: IEC61000-4-2 Lightning protection...
