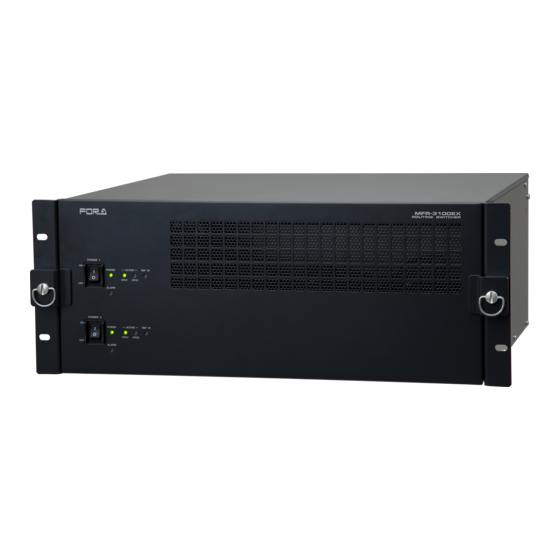

FOR-A MFR-3100EX User Manual

Multi format routing switcher
Hide thumbs Also See for MFR-3100EX:
Table of Contents

Advertisement

Quick Links

Download this manual
USER MANUAL
MFR-3100EX
Multi Format Routing Switcher
MFR-GPI
MFR-TALM
Edition – Rev. 1
st
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MFR-3100EX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for FOR-A MFR-3100EX

Summary of Contents for FOR-A MFR-3100EX

  • Page 1 USER MANUAL MFR-3100EX Multi Format Routing Switcher MFR-GPI MFR-TALM Edition – Rev. 1...
  • Page 2 Precautions Important Safety Warnings [Power] Operate unit only at the specified supply voltage. Caution Disconnect the power cord via the power plug only. Do not pull on the cable portion. Do not place or drop heavy or sharp-edged objects on the power cord. A damaged cord can cause fire or electrical shock hazards.
  • Page 3 [Circuitry Access] Do not remove covers, panels, casing, or access the circuitry with power applied to the unit. Turn the power off and disconnect the power cord prior to removal. Internal servicing / adjustment of unit should only be performed by qualified personnel. Do not touch any parts / circuitry with a high heat factor.
  • Page 4 Lighttpd Copyright © 2004, Jan Kneschke, incremental. All rights reserved. Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met: - Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer. - Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
  • Page 5 Upon Receipt MFR-3100EX units and their accessories are fully inspected and adjusted prior to shipment. Check your received items against the packing lists below. Check to ensure no damage has occurred during shipment. If damage has occurred, or items are missing, inform your supplier immediately.
  • Page 6 ◆ Options (for MFR-3100EX) ITEM REMARKS MFR-31CPU Redundant CPU card * Redundant power supply unit (with AC cord and AC MFR-31PS 1 set cord clamp.) MFR-8RUA/18RUA/39RUA MFR-40RU Remote Control Unit MFR-16RU/16RUD/16RUTA MFR-16/32/64RUW ◆ Interface Expansion Unit ITEM REMARKS MFR-GPI AC Adaptor...
  • Page 7 Wrap the AC cord clamp around the AC cord. Gently pull on the AC cord to ensure it has been securely plugged in. Font Conventions The following conventions are used throughout this manual:  References to the MFR-3100EX Web-based Control Software are indicated by [Web-based Control: XXX page].

  • Page 8: Table Of Contents

    1. Prior to Starting ..........................10 1-1. Overview ..........................10 1-2. Features ........................... 10 2. Panel Descriptions ..........................11 2-1. MFR-3100EX Front Panel ......................11 2-1-1. Matrix Size Chart ......................11 2-2. MFR-3100EX Rear Panel ......................13 2-2-1. Interfaces .......................... 15 2-2-2.
  • Page 9 7-3-12. Video Format and Output Delay Command (16) ............75 8. Troubleshooting ..........................77 9. Specifications and Dimensions ......................78 9-1. Unit Specifications ........................78 9-1-1. MFR-3100EX ........................78 9-1-2. MFR-GPI ........................... 80 9-1-3. MFR-TALM ........................81 9-2. External Dimensions ........................ 82 9-2-1.

  • Page 10: Prior To Starting

    1. Prior to Starting 1-1. Overview The MFR-3100EX is a multi-format routing switcher that supports 12G-SDI (When MFR-8SDIGB/ 8SDOGB are installed), 3G-SDI, HD-SDI, SD-SDI, ASI, AES/EBU, MADI and analog audio signals. Inside the 4U case a matrix of up to 64 inputs/72 outputs can be configured. And by linking multiple units, they can be used as a large-scale routing switcher.

  • Page 11: Panel Descriptions

    2. Panel Descriptions The assigned CPU and LAN port numbers for MFR-31CPU and MFR-3100EX are shown in the table below. CPU1/2 Primary/ Secondary MFR-LAN1/2 PC-LAN1/2 MFR-31CPU CPU1 Primary CPU MFR-LAN1 PC-LAN1 MFR-3100EX CPU2 Secondary CPU MFR-LAN2 PC-LAN2 2-1. MFR-3100EX Front Panel...
  • Page 12 MFR-16MV cards can also be installed to the router. A single MFR-16MV card provides 16 outputs (using two slots) and supports two multiview channels. To output multiview images, a multiview channel (MV OUT1 or MV OUT2) needs to be directly assigned to output ports. Instead of multiview images, you can also assign any destination channel to output ports as a single image.

  • Page 13: Mfr-3100Ex Rear Panel

    1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 9 Slot No. 01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16 17 The above figure shows an MFR-3100EX with MFR-8SDI, MFR-8SDO, MFR-31CPU and MFR-31PS cards installed. Char.
  • Page 14 Available slot pairs are No. 09-10, 11-12, 13-14, and 15-16. ◆ Cooling fans Four cooling fans are installed in MFR-3100EX units: FAN 1 is on the rear panel and FAN2, FAN 3 and 4 are on the front panel inside as shown below. Rear Panel...

  • Page 15: Interfaces

    2-2-1. Interfaces ◆ ALARM Connector (9-pin D-sub, female) Alarm 1 Out: Under normal operation: Pins 1 and 6 are open. In a malfunction or power-off state: Pins 1 and 6 are closed. Alarm 2 Out: Under normal operation: Pins 2 and 7 are open. In a malfunction or power-off state: Pins 2 and 7 are closed.

  • Page 16: Sdi Input/ Output Cards Installation And Removal

    MFR-3100EX units allow Input/ Output cards to be installed into slots on the rear panel. ◆ Removing input /output cards To remove an installed card while the MFR-3100EX power is on, turn off the target Slot Power on the SlotStatus page of Web-based Control and remove the card. ◆...

  • Page 17: Sdi Input / Output Cards

    When using as a digital audio card, refer to Sec. 2-4-5. “MFR-8SDI (MADI Input)” for details. Up to 8 cards can be installed into Slot No. 01 to 08. ► See “Input /output cards and Slots” in Sec. 2-2. "MFR-3100EX Rear Panel." BNC x 8 inputs (3G/HD/SD-SDI or ASI signal auto-detection) 2-3-2.

  • Page 18: Mfr-16Mv

    Any outputs (BNC) on the card are available for multiview channels. 3G/HD-SDI signals can be output for multiview output. ► See “Input /output cards and Slots” in Sec. 2-2. "MFR-3100EX Rear Panel." ► See Sec. 4. “Multiview Output.” BNC x 16 outputs (3G/HD/SD-SDI or ASI signal depending on crosspoint selections) 2-3-4.

  • Page 19: Mfr-8Sdogb

    12G-SDI signal * 1 and 3G-SDI signal * 4 Up to 9 cards can be installed into Slot No. 09 to 17. ► See “Input /output cards and Slots” in Sec. 2-2. "MFR-3100EX Rear Panel." 12G / 3G-SDI 12G / 3G-SDI BNC x 8 outputs (12G/3G-SDI) Set up output signals in the Web-based Control Software as shown below.

  • Page 20: Audio Input / Output Cards

    MFR-8AAI is an analog audio input card with A/D converter. Up to 8 cards can be installed into Slot No. 01 to 08. ► See “Input /output cards and Slots” in Sec. 2-2. "MFR-3100EX Rear Panel." 9 ~ 16 1 ~ 8 25-pin D-Sub (female) x 2 (8 stereo pairs, 16 channels), 600-ohm or high impedance ◆...

  • Page 21: Mfr-8Aao (Analog Output)

    MFR-8AAO is an analog audio output card with D/A converter. Up to 9 cards can be installed into Slot No. 09 to 17. ► See “Input /output cards and Slots” in Sec. 2-2. "MFR-3100EX Rear Panel." 9 ~ 16 1 ~ 8 ◆...
  • Page 22 ◆ Digital-to-Analog Conversion 16 channels (8 stereo pairs) can be converted and output as analog audio. Audio level and gain can be set for each stereo pair. Audio level and gain should be set in the [Web-based Control: Audio Settings page]. Digital Input Ref Set digital input ref.

  • Page 23: Mfr-8Aesi (Aes/Ebu Input)

    MFR-8AESI is a digital audio input card. Up to 8 cards can be installed into Slot No. 01 to 08. ► See “Input /output cards and Slots” in Sec. 2-2. "MFR-3100EX Rear Panel." BNC x 8 inputs (8 stereo pairs, 16 channels), unbalanced, 75-ohm 2-4-4.

  • Page 24: Mfr-8Sdi (Madi Input)

    Maps audio input channels in SDI / AES/EBU / MADI streams and outputs as MADI / SDI signals. Up to 9 cards can be installed into Slot No. 09 to 17. ► See “Input /output cards and Slots” in Sec. 2-2 "MFR-3100EX Rear Panel." BNC x 8 outputs (MADI/SDI x 8) 75-ohm ◆...
  • Page 25 ◆ Link Able to set the preset mapping linked with logical channel (crosspoint) switch. Set Link in [Web-based Control: Audio Settings - Audio Mapping page]. ◆ V-Fade Able to erase crosspoint switch noise by setting fade-in duration time. (Fade-out duration time is about 4 ms.) Set V-Fade in [Web-based Control: Audio Settings - V-Fade/Mute page].

  • Page 26: Mfr-8Aespo (Aes/Ebu Output)

    It outputs AES/EBU signals by mapping SDI, AES/EBU and MADI audio input sources. Up to 9 cards can be installed into Slot No. 09 to 17. ► See “Input /output cards and Slots” in Sec. 2-2 "MFR-3100EX Rear Panel." BNC x 8 outputs (AES/EBU x 8) ◆...

  • Page 27: Mfr-Gpi

    2-5. MFR-GPI 2-5-1. Front Panel MFR-GPI GPI UNIT SERIAL POWER BUSY GPI 1 RESET Char. Item Description Displays the power status. POWER ► See the table below for details on indications. Displays the flash memory writing status of backup settings. BUSY ►...

  • Page 28: Rear Panel

    2-5-2. Rear Panel SERIAL SERVICE RATING LABEL MFR-LAN GPI 1 GPI 2 GPI 3 GPI 4 2 -DC12V IN- 1 Char. Item Description Used to connect the MFR main unit MFR-LAN (*1) Ethernet port (10/100BASE-TX) SERVICE Used for maintenance only. Do not use. DC 12 V IN 1 and Used to supply 12 V DC power.

  • Page 29: Interfaces

    2-5-3. Interfaces ◆ GPI IN / TALLY OUT Connector (37-pin D-sub, female) 37 36 35 34 33 32 Pin No. Signal Pin No. Signal GPI_IN / TALLY_OUT # - 01 GPI_IN / TALLY_OUT # - 20 GPI_IN / TALLY_OUT # - 02 GPI_IN / TALLY_OUT # - 21 GPI_IN / TALLY_OUT # - 03 GPI_IN / TALLY_OUT # - 22...
  • Page 30 ◆ GPI OUT / TALLY OUT Circuit MFR-GPI External device Max. voltage: 40 V Max. current: 100 mA 10-ohm * The voltage is about 0.9 V when turned-on. ◆ SERIAL Connector (9-pin D-sub, male) RS-232C or 422 interfaces can be selected via the CPU card DIP switches. (See Sec.

  • Page 31: Switches On The Card

    OFF all connected units / disconnect power cords prior to accessing the interior. Further note that adjustments and maintenance should only be performed by qualified technical personnel familiar with FOR-A equipment. Remove the two screws on both sides of the MFR-GPI to access the internal card as shown below.

  • Page 32: Mfr-Talm

    2-6. MFR-TALM 2-6-1. Front Panel MFR-TALM TALLY MAN AGER UNIT POWER BUSY REF IN RS-422 RESET Char. Item Description Displays the power status. POWER ► See the table below for details on indications. Displays the flash memory writing status of backup settings. BUSY ►...

  • Page 33: Rear Panel

    2-6-2. Rear Panel RS-422 DC12V IN PC-LAN MFR-LAN REF IN SER. NO. Char. Item Description Ethernet port for connection to PC or other external unit PC-LAN (10/100BASE-TX, RJ-45) Ethernet port for connection to MFR main unit MFR-LAN (10/100/1000BASE-T, RJ-45) REF IN Used to input a reference signal (BB or Tri-level sync signal) Used to input/output GPI signals for external control.

  • Page 34: System Configuration Example

    The block diagram below shows an example of the basic MFR routing system that consists of an MFR-3100EX, Remote Unit and the Web-based Control accessed from a computer. Make sure to connect both MFR-LAN1 (MFR-31CPU) and MFR-LAN2 (MFR-3100EX) to a LAN respectively for CPU redundancy. Their LAN connections must be separated from the network segment of PC-LAN and other devices.

  • Page 35: Main Unit Linking

    3-2. Main Unit Linking The Main Unit Link feature allows you to control multiple MFR-3100EX units at the same time. Two types of system configurations are available: Parallel Link: Controls several MFR-3100EX units at the same time. Expanded Matrix: Creates an expanded virtual matrix by linking MFR-3100EX units.

  • Page 36: Expanded Matrix System Example

    Connect all devices in the MFR system as shown in the figure in the previous page. Power on the MFR-3100EX to be set as a Master, Remote Control unit and PC. Set the IP addresses for the Remote Control unit (❶) and PC (❹). Power off the MFR-3100EX.

  • Page 37: Signal Name And Tally Link System

    The block diagram below shows a basic signal name and tally link system. To connect a video switcher via serial connection, use SERIAL1-4 on MFR-GPI. The signal name and tally link system require an RS-422 interface. VIDEO(SDI) LAN (MFR-LAN) LAN (PC LAN) RS-422 MFR-3100EX Video Switcher (HVS-4000) Monitor MFR-8SDI MFR-8SDO OUT1...
  • Page 38 Set each serial port following the table on this page using the MFR Web-based Control and on the switcher. Each tally information setting should be performed in the [Web-based Control: Tally System Settings page]. MFR-3100EX Video Switcher (HVS-4000) MFR-8SDI MFR-8SDO Names>>...

  • Page 39: If Configuring An Mfr-Talm

    FOR-A video switcher and multiviewer using an MFR-TALM unit. The MFR-TALM is specifically designed to perform the task of tally data computation, which is ordinarily undertaken by the MFR-3100EX, to accelerate the computation. RS-422 ports (1) to (4) are available for video switcher connection.
  • Page 40 ◆ Transmitting Signal Name and Tally Data The figure below shows an example signal name and tally data routing system using the MFR- TALM. MFR-3100EX MFR-8SDI MFR-8SDO Video Switcher OUT1 (HVS-4000) RS-422(1) RS-422(4) IN64 OUT72 MFR-LAN PC-LAN Multi Viewer (MV-3200)
  • Page 41 TCP/IP Setting Open the [MFR-TALM Web-based Control: Port Settings - TCP/IP page] and perform port settings [Port Settings] - [TCP/IP] Port Menu Access IP Address Port Function Method Web-based TSL UMD (MV TCP/IP Control Client protocol V5.0 IP address) port number) Tally out [TALM Settings] Screen...

  • Page 42: Switcher's Aux Crosspoints Switching System

    3-4-1. Switching an AUX Bus Signal Assume that the system is configured as shown below: AUX1 on the switcher is assigned to DST 129 (Level 1) on the MFR-3100EX. IN1-8 and STL(Still) 3 on the switcher are assigned to SRC129-137 on the MFR-3100EX.
  • Page 43 Connect and assign video signals as shown in the figure on the previous page. Device Setup on the MFR-3100EX: Connect to the MFR-3100EX from the Web-based Control PC and open the [Tally System Settings - Device Select] page. Select HVS-390HS in the [Switcher] field and click [Send].

  • Page 44: Synchronous Crosspoints Switching

    If SRC 129 is selected for DST 129 on the MFR-3100EX, IN1 is selected for AUX1 on the switcher. If SRC 3 is selected for DST 129 on the MFR-3100EX, IN9 is selected for AUX1 on the switcher and SRC 3 is also selected for DST 61 on the MFR-3100EX.

  • Page 45: Multiview Output

    4. Multiview Output The MFR-16MV card allows you to provide multiview images from any of 16 outputs. Multiview images can display up to 16 video windows and two clocks, which can be placed on a single MV channel or on two MV channels by dividing MV windows and clocks.

  • Page 46: Fs Mode

    - Audio level meter (8 channels) - Timecode - Video loss Savable MV layouts 16 (16 per each MFR-3100EX unit) Layout Manager Screen and window layout creation and editing in Web-based Control * Window and text locations are arbitrary. Clock time...

  • Page 47: Displaying Multiview Images

    4-3. Displaying Multiview Images At first, select destination channels used for multiview images in the Web-based Control. (1) Open the [Web-based Control: Crosspoint Status page]. (2) Press One Touch. (3) Select Destination channels for a multiview image and press MV-OUT1 or MV- OUT2. 4-4.

  • Page 48: Clocks

    4-5. Clocks The following 10 clock types are available. Analog clock 1 Analog clock 2 Analog clock 3 Analog clock 4 Square (dark) – Round - Time Square - Time Square (light) - Date/Time Date/Time Analog clock 5 Analog clock 6 Round (light) –...

  • Page 49: Available Window Objects

    4-6. Available Window Objects Timecode Window frame 23:59:59:29 Audio level meter Tally marker Label 1 Label 2 Label Label Label 1 and Label 2 can display simultaneously. Label 1 and Label 2 are concatenated. Size: Select from 3 sizes. Label text: Select from Title, Alarm and Title+Alarm. Title: Displays channel names or text specified by DP-ID.

  • Page 50: Gearbox Feature (Mfr-8Sdigb/8Sdogb)

    A, B and C connectors are disabled. MFR-8SDIGB MFR-8SDOGB 3G-SDI 3G-SDI 3G-SDI 3G-SDI Gearbox 1 Gearbox 1 3G-SDI 3G-SDI 12G/3G-SDI 12G/3G-SDI MFR-3100EX routing Gearbox 2 Gearbox 2 ◆ Supported formats Signal format Video format Standard 3840 x 2160/59.94p 4:2:2 SMPTE 12G-SDI...

  • Page 51: Available Conversions

    In the Web GUI, specify the Gearbox input and output formats, and then assign input/output physical channels to logical channels. Use Link Settings that allow simultaneous 4-channel operation and facilitate crosspoint switches. 5-3-1. Converting 3G SQD Input to 2SI (MFR-8SDIGB) MFR-8SDIGB Quad Link Quad Link Gearbox 1 3G-SDI 3G-SDI MFR-3100EX (SQD) (2SI) routing...

  • Page 52: Converting 2Si To Sqd Output (Mfr-8Sdogb)

    Open the Gearbox Settings page in the Web GUI and select signal formats under From and To as shown below for a Gearbox in the MFR-8SDIGB card block. (This example sets Gearbox 1 on the Slot 1 card.) Open the Source Assignment page in the Web GUI and assign the physical channels (SDI 1-4) to logical channels (SRC 1-4).

  • Page 53: Converting 12G-Sdi Input To 3G-Sdi 2Si (Mfr-8Sdigb)

    5-3-3. Converting 12G-SDI Input to 3G-SDI 2SI (MFR-8SDIGB) MFR-8SDIGB Quad Link Gearbox 1 3G-SDI MFR-3100EX (2SI) routing 12G-SDI Open the Gearbox Settings page in the Web GUI and select signal formats under From and To as shown below for a Gearbox in the MFR-8SDIGB card block. (This example sets Gearbox 1 on the Slot 1 card.)

  • Page 54: Payload Id

    5-3-5. Payload ID ◆ Adding Payload ID information to Output Signals. Select Payload ID information source for output signals. Insert: Data created for output signals. Through: Data embedded to input signals. ◆ Adding 8K Quad-Link Payload ID Information. When converting 3G Quad-Link to 12G-SDI, Payload ID information for 8K Quad-Link (In compliance with SMPTE 2082-12) is able to be added to 12G-SDI output.

  • Page 55: Sdi Bnc Output Settings

    5-3-6. 3G-SDI BNC Output Settings When converting 3G Quad-Link to 12G-SDI, 3G-SDI Black or 3G-SDI Link 1 are selectable for remaining 3 SDI output signals.

  • Page 56: Avdl Function (Mfr-8Sdodl)

    / 60, 59.94, 50 1080p, 1080PsF / 30, 29.97, 23.98, 25, 24 Set the same video format as the MFR-3100EX system format. See Sec. 6-4. “MFR-8SDODL Support Formats.” 6-2. Quiet Switch Set Quiet Switch to ON/OFF for each MFR-8SDODL card.

  • Page 57: Additional Delay To Output

    6-3. Output Delay Specify the delay amount for SDI outputs on the MFR-8SDODL card. The Delay setting determines the adjustment range of SDI input. Set the delay amount for each output. Delay setting Adjustment range -4.1H to +0.9H -3.1H to +1.9H -2.1H to +2.9H -1.1H to +3.9H -0.1H to +4.9H...

  • Page 58: Serial / Lan Command Control

    Wait before sending next command (Resend if the Echo is not returned.) Login password None Communication protocol TCP/IP, Control PC: Client, MFR-3100EX: Server The protocol below uses ASCII code. Command protocol Crosspoint remote control and Audio remote settings protocols (in ASCII code) In a redundant CPU configuration, the Client should be connected to both the primary side (PC-LAN CPU1) and the secondary side (PC-LAN CPU2) and send control commands to both.

  • Page 59: Control Command

    7-3. Control Command The control command list below shows the standard control commands for Crosspoint remote control, Crosspoint remote control 2 and Audio remote settings, which are available for both LAN and serial interfaces. ◆ Control command list Function Serial LAN *1 Protocol *2 Commands (S?) for requesting the crosspoints list...
  • Page 60 Func. Control command Command response Ref. LOCK ALL units. W!<Lvl><Dest>,<ID>,1 @[sp]W:<Lvl>/<Dest>,<ID>,1 LOCK OTHER units. W!<Lvl><Dest>,<ID>,2 @[sp]W:<Lvl>/<Dest>,<ID>,2 Disable LOCK. W!<Lvl><Dest>,<ID>,0 @[sp]W:<Lvl>/<Dest>,<ID>,0 @[sp]Z:<Lvls> S:<Lvl><Dest>,<Src> C:<Lvls>/<Dest>,<Src>[…..[S<Number of crosspoints in Salvo>][L<Number of Links>]]:I<ID> @[sp]K?<SorD><AorK>,<Ofset> K:<SorD><AorK><No.>,<Dat> 7-3-3 @[sp]A? If CPU is active: A:<ID> 7-3-4 If CPU is passive: (No response) @[sp]W?<Lvl>,<Dest>...

  • Page 61: Command Responses (Commands 1-6)

    7-3-1. Command Responses (Commands 1-6)  Echo and Prompt Responses will be sent as shown below when receiving commands: A command is received. ↓ Echo @[sp]X:<Lvls>/<Dest>,<Src>[CR] ↓ Prompt [CR][LF]> MFR units respond with an Echo Reply with the same data that they received. Therefore, echo reply messages end with [CR][LF] or [CR] only.

  • Page 62: Receiving Responses (Commands 1-6)

    Ex. 2) When Source 113 is selected for Destination 49 in Levels 2 to 7: (Function ) @ X:123456/30,70[CR] Terminal display: @ X:123456/30,70 [CR][LF]> > [CR][LF] C:123456/30,70…S5:IA C:123456/30,70...S5:IA[CR][LF] [CR][LF] S:130,70 S:130,70[CR][LF] [CR][LF] S:230,70 S:230,70[CR][LF] S:330,70 [CR][LF] S:330,70[CR][LF] S:430,70 [CR][LF] S:430,70[CR][LF] S:530,70 [CR][LF] S:530,70[CR][LF]...
  • Page 63 Ex. 4) Allows to send the next command when receiving a prompt. Resends the previous command when the timeout period (5 seconds) have elapsed without reply (echo) after sending a command. Ex. 5) Allows to send the next command when receiving a prompt. ...
  • Page 64  If Commands are Overlapped: Two or more commands are sent from different terminals (via serial or LAN interface, or Remote Control units), all command results (C and S responses) are sent to all these terminals from the MFR. The following command examples shows how overlapped commands are processed. Ex.) Assume that the following commands are overlapped: Terminal 1 sent “@ X:0/2,4.”...

  • Page 65: Channel Name Request Commands (7)

    7-3-3. Channel Name Request Commands (7) K? Commands allow you to obtain Source and Destination names in ASCII and/or in Kanji set in the MFR Web-based Control menu. ◆ Command Format Command Command response @[sp]K?<SorD><AorK>,<Ofset> K:<SorD><AorK><No.>,<Dat> BYTE No. 8-10 Command [sp] 000-3FF 000-1FF...
  • Page 66 ◆ Command Example 1: Requesting the Source Channel 1 Ascii Name ➢ Web-based Control (Source Name menu) ➢ Terminal display Command @ K?SA,000 Response @ K?SA,000 Echo K:SA000,5352432031 Ascii Name for Source Channel 1 is SRC 1. K:SA001,5352432032 Ascii Name for Source Channel 2 is SRC 2. K:SA002,5352432033 Ascii Name for Source Channel 3 is SRC 3.
  • Page 67 ◆ Command Example 2: Requesting the Destination Channel 101 Kanji Name ➢ Web-based Control (Destination Name menu) ➢ Terminal display Command @ K?DK,064 Response @ K?DK,064 Echo K:DK064,E587BAE58A9BEFBC91EFBC9 Kanji Name for Destination Channel 101 is 出力１０１. 0EFBC91 K:DK065,E587BAE58A9BEFBC91EFBC9 Kanji Name for Destination Channel 102 is 出力１０２.
  • Page 68 ◆ Command Example 3: Requesting the Source Channel 65 Kanji Name ➢ Web-based Control (Source Name menu) ➢ Terminal display Command @ K?SK,040 Response @ K?SK,040 Echo K:SK040,E382ABE383A1E383A9EFBC91 Kanji Name for Source Channel 65 is カメラ１. K:SK041,E382ABE383A1E383A9EFBC92 Kanji Name for Source Channel 66 is カメラ２.

  • Page 69: Cpu Status Request Command (8)

    サ ― バ ― Ａ Source Kanji Channel 72 7-3-4. CPU Status Request Command (8) This command allows you to indicate which CPU is active in the MFR-3100EX. ◆ Command format Command Command response @[sp]A? A:<ID> BYTE No. Command [sp] BYTE No.

  • Page 70: Destination Lock Status Request Command (9)

    7-3-5. Destination Lock Status Request Command (9) This command (W?) allows you to indicate the destination lock status in the MFR system. ◆ Command format Command Command response @[sp]W?<Lvl>,<Dest> W! <Lvl><Dest>,<ID>,0 to 2 BYTE No. Command [sp] <Lvl> <Dest> <Dest>: Destination channel number BYTE No.

  • Page 71: Channel Name Import Commands (10)

    Source: 000-3FF, Destination: 000-1FF <Dat> Channel names BYTE9- Strings in Hex characters (max. 128 bytes). Character code: UTF-8 Carriage return 7-3-7. System Size Request Command (11) F? Commands allow you to obtain MFR-3100EX system size. ◆ Command Format Command Command response @[sp]F?<Lvl>...

  • Page 72: Video Format Commands (12)

    7-3-8. Video Format Commands (12) Video Format commands allow you to change router video format. The router restarts automatically when commands are accepted. The commands can also change reference and switching point settings. ◆ Command Format Command description Command Command response Preset video format, @[sp]UF:<YY>/<R#>,<S$>...

  • Page 73: Audio Input Setting Command (13)

    7-3-9. Audio Input Setting Command (13) This command allows you to setup audio inputs (streams) for MFR-8MADIPO/8AESPO. ► [Web-based Control: Audio Settings - Input Type page] ◆ Command Format Command @[sp]AA:<SlotNo.><Grp>/<I-No>,<L-Lvl><L-Src><T#> Command response AA:<SlotNo.><Grp>/<I-No>,<L-Lvl><L-Src><T#> Parameter <SlotNo.> Slot9 to Slot17 <Grp> 0: Group1 <I-No>...

  • Page 74: Audio Channel Mapping Command (14)

    7-3-10. Audio Channel Mapping Command (14) This command allows you to map audio channels on MFR-8MADIPO/8AESPO. ► [Web-based Control: Audio Settings - Audio Mapping page] ◆ Command Format Command @[sp]AX:<SlotNo.><Grp>/<O-BNC><O-CH>,<I-No><I-CH> Command response AC:<SlotNo.><Grp>/<O-BNC><O-CH>,<I-No><I-CH>:I<ID> Parameter <SlotNo.> Slot9 to Slot17 <Grp> 0: Group1 <O-BNC>...

  • Page 75: Link Enable / Disable Command (15)

    7-3-11. Link Enable / Disable Command (15) Link Enable/ Disable Commands allow you to enable/ disable audio channel mapping linked to a logical crosspoint switch. (For MFR-8MADIPO/8AESPO) ► [Web-based Control: Audio Settings - Audio Mapping - Link page] ◆ Command Format Command Command response @[sp]AL:<ONorOFF>...
  • Page 76 Parameter <SlotNo.> Slot9 to Slot17 <Grp> 0: Group1 <FORMAT> Video Format 00: 1080/59.94i 01: 1080/59.94p 04: 1080/50i 05: 1080/50p 07: 720/59.94p 0F: 1080/29.97PsF 12: 1080/23.98PsF <D#> D0-D8 Output delay Pattern 1 to Pattern 9 * The output delay varies depending on the video format. (See table below) Output Delay [μs] FORMAT...

  • Page 77: Troubleshooting

    8. Troubleshooting If any of the following problems occur during operation of your MFR-3100EX, proceed as indicated below to see if the problem can be corrected before assuming a unit malfunction has occurred. IMPORTANT If the problem cannot be corrected by performing the procedures below, turn the unit off and then on again.

  • Page 78: Specifications And Dimensions

    9. Specifications and Dimensions 9-1. Unit Specifications 9-1-1. MFR-3100EX Basic specifications Temperature/ Humidity 0℃ to 40℃/ 30% to 85% (no condensation) 100VAC to 240VAC ±10%, 50/60Hz IN x 2 Power (MFR-31PS required for redundant power configuration) Consumption 671VA (661W) at 100 - 120VAC...
  • Page 79 MFR-8SDOGB 12G/3G-SDI Output Card (Max. 9 cards)) -75 ohm BNC x 2 (12G-SDI or 3G-SDI ) -75 ohm BNC x 6 (3G-SDI) I/O delay selection: Delay (H) (0.3H-1H), 1 frame, 1 frame+ Delay (H) MFR-8SDODL 3G/HD-SDI Output Card (Max. 9 cards) -75 ohm BNC x 8 Phase adjustment for 3G/HD-SDI output - Output phase: +1H to +5H referring to REF IN signal...

  • Page 80: Mfr-Gpi

    Multiviewer MFR-16MV 16 SDI output card with multiviewer function (Up to 4 cards) - 2 slots required per card - 75-ohm BNC x 16 Reference Input BB: 0.429 Vp-p (NTSC)/0.45 Vp-p (PAL) or Tri-level Sync: 0.6 Vp-p 75-ohm BNC x 1, loop-through (Terminate with 75-ohm BNC terminator, it unused.) Interfaces MFR-LAN...

  • Page 81: Mfr-Talm

    9-1-3. MFR-TALM Basic specifications Temperature 0°C to 40°C Humidity 30% to 85% (no condensation) Power +12 V DC pin connector x 2 (redundant power supplies in standard configuration) Consumption 100 V AC to 120 V AC: 17 VA (9 W) 220 V AC to 240 V AC: 20 VA (9 W) Dimensions 212 (W) x 44 (H) x 161 (D) mm EIA 1 RU half size...

  • Page 82: External Dimensions

    9-2. External Dimensions 9-2-1. MFR-3100EX (All dimensions in mm) MFR-3100EX ROUTING SWITCHER POWER 1 POWER ACTIVE REF IN CPU1 CPU2 ALARM POWER 2 POWER ACTIVE REF IN CPU1 CPU2 ALARM...

  • Page 83: Mfr-Gpi

    9-2-2. MFR-GPI (All dimensions in mm)

  • Page 84: Mfr-Talm

    9-2-3. MFR-TALM (All dimensions in mm) ◆ If attaching the rack mount brackets (Dual / Single)
  • Page 85 Warning This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.
