Mocka Sadie Assembly Instructions

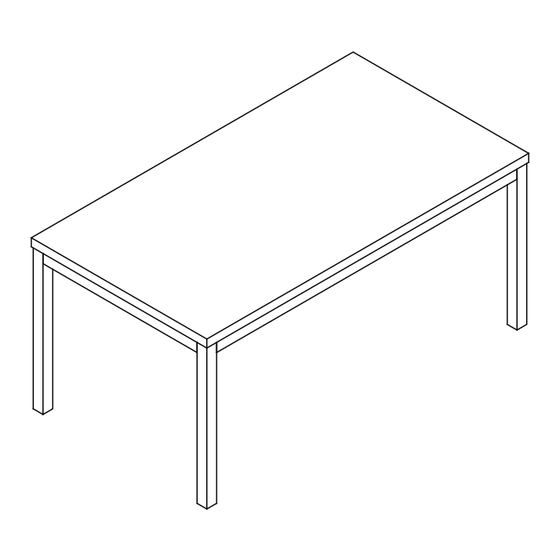

Dining table
Hide thumbs Also See for Sadie:
1
2
3
4

Advertisement

Table of Contents

Sadie
Dining Table
Thank you for your purchase.
Please follow the instructions for correct assembly. While we took great
effort to ensure these assembly instructions were correct at the time of
printing, sometimes updates are required post production. For the most
up to date versions please refer to the product page on our website.
mocka.com.au/mocka.co.nz
A
B
dowel
screw
x4
x16
F
G
spring
washer
washer
x8
x8

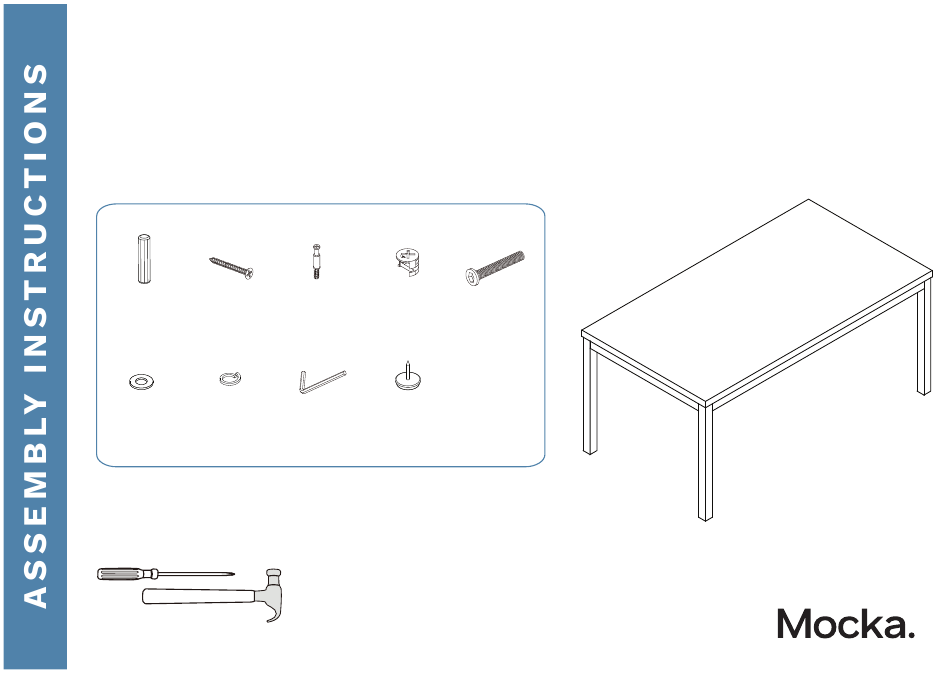

Hardware Supplied

WARNING: Any furniture that is not anchored to a wall has the potential to tip over in certain
circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an earth-
quake. Accordingly, we recommend that all furniture is anchored to a wall. We supply a free safety
wall anchor with all furniture sold and we recommend these are used to prevent your product
tipping. The fixing device provided should fit most wall types, but please note that different wall
materials may require different fixing devices from those supplied.
mocka.co.nz I mocka.com.au I PO BOX 18, Pinkenba QLD 4008
C
D
bolt
locking
x14
nut x14
I
H
plastic
Allen Key
glide x4
x1
Phillips screwdrivers and hammer required
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
E
bolt
x8

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Sadie and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Mocka Sadie

Summary of Contents for Mocka Sadie

  • Page 1 The fixing device provided should fit most wall types, but please note that different wall materials may require different fixing devices from those supplied. Phillips screwdrivers and hammer required For quicker assembly, we recommend the use of a power drill on a low-speed setting. mocka.co.nz I mocka.com.au I PO BOX 18, Pinkenba QLD 4008...
  • Page 2 Dining Table Insert 14x bolts (C) into panel [3] and tighten with a screwdriver. Attach panels [4] to panels [2] and [3] with 16x screws (B). Tighten with a screwdriver. mocka.co.nz I mocka.com.au I PO BOX 18, Pinkenba QLD 4008...
  • Page 3 Sadie Dining Table Attach panels [2] and [3] to panel [1] secure with 14x locking nuts (D). Attach panels [5] to panel [1] using 4x dowels (A). mocka.co.nz I mocka.com.au I PO BOX 18, Pinkenba QLD 4008...
  • Page 4 Once assembled lift furniture into place,do not drag,You’re done, enjoy! 8x spring washer (G). Tighten with an Allen key (H). Attach 4x felt pads (I) to legs [5] using a hammer as shown. mocka.co.nz I mocka.com.au I PO BOX 18, Pinkenba QLD 4008...
