Tech Controllers EU-L-9 User Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
EU-L-9r
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the EU-L-9 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Tech Controllers EU-L-9

Summary of Contents for Tech Controllers EU-L-9

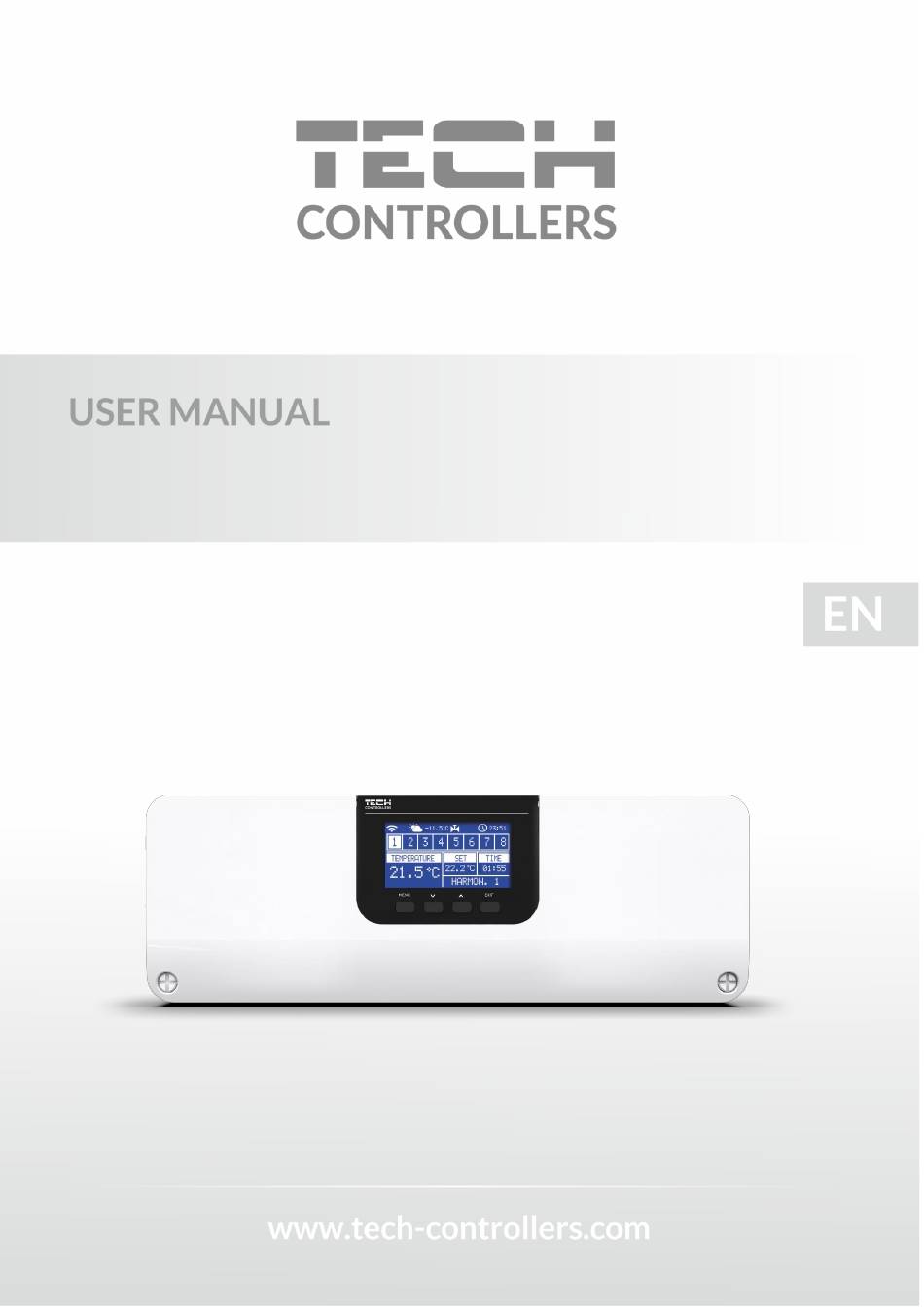

  • Page 1 EU-L-9r...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Safety ....................................5 Device Description ................................6 III. How to install the controller ............................6 First start-up ..................................6 Main screen view and description ..........................14 Controller functions ............................... 16 Block diagram – controller menu ..........................16 Operation mode ................................
  • Page 3 5.7. Calibration ................................21 Hysteresis ..................................21 Calibration ..................................21 Thermostatic actuators ..............................21 8.1. Registration ................................21 8.2. Valve actuators ..............................22 8.3. Information ................................22 8.4. Settings ................................22 Window sensors ................................23 9.1. Registration ................................23 9.2. Sensor removal ..............................
  • Page 4 Humidity protection ..............................28 Factory settings ................................28 Schedule settings ................................29 Software update ................................30 Technical data ................................30 XII. Protections and alarms ..............................31 KN.24.05.2023...

  • Page 5: Safety

    SAFETY Before using the device for the first time the user should read the following regulations carefully. Not obeying the rules included in this manual may lead to personal injuries or controller damage. The user’s manual should be stored in a safe place for further reference.

  • Page 6: Device Description

    II. DEVICE DESCRIPTION EU-L-9r external controller is intended for controlling valves. The controller enables significant energy saving due to precise temperature management in particular rooms. Due to advanced software, the controller fulfils a wide range of functions: • possibility of controlling thermoelectric actuators via 8 room sensors or room regulators EU-C-7p, EU-C-8r, EU-R-8b, EU-C-mini, EU-R-9s, EU-R-9b, EU-R-9z etc.
  • Page 7 Pictorial diagram of wiring up and communication between the devices in the system:...
  • Page 8 Scheme illustrating connection and communication between devices in the system using RJ jack:...
  • Page 9 Scheme illustrating connection and communication between devices in the system using a pluggable terminal block:...
  • Page 11 Step 2. Switch on the power supply and check if the devices work properly Once all the devices has been connected, switch on the power supply. Use the Manual mode function to check if each device works properly - use the buttons ▲ ▼ to select the device and press MENU button - the device should be activated.

  • Page 14: Main Screen View And Description

    V. MAIN SCREEN VIEW AND DESCRIPTION The user navigates in the menu structure using the buttons located next to the display. 1. Display 2. ▲- „up” „plus” – it is used to view the menu options and increase the value while editing parameters. During standard operation the button is used to switch between different zones parameters.
  • Page 15 1. Current day of the week 2. External temperature 3. Pump ON 4. Voltage-free contact ON ( (heating = flame icon; cooling = fan icon). 5. Current time 6. Current operation mode in the zone 7. Sensor battery level in a given zone (highlighted number on the zone information bar - description no. 12). 8.

  • Page 16: Controller Functions

    9. Current floor temperature in the given zone 10. Maximum and minimum floor temperature 11. Information about the number of window sensors registered in a given zone 12. Information about the number of thermostatic actuators registered in a given zone 13.

  • Page 17: Operation Mode

    OPERATION MODE This function enables the user to activate a given operation mode in the zone. • Normal mode – pre-set temperature depends on the selected schedule. • Holiday mode – the pre-set temperature depends on ‘Temperature settings’ parameter ( Menu > Zones > User’s settings >...

  • Page 18: Registration

    REGISTRATION This function is used to register EU-M-9r room regulator, which enables the user to extend the system to 4 external controllers and be able to control all the zones via the Internet. Follow the steps to register EU-M-9r room regulator: •...

  • Page 19: Pre-Set Temperature

    PRE-SET TEMPERATURE The pre-set temperature in a given zone depends on the settings of the selected operating mode in the zone. As a rule, the temperature results from the currently selected weekly schedule; however, the ‘Pre-set temperature’ function allows the user to set a separate temperature value for a specific period of time or permanently.

  • Page 20: Temperature Settings

    • Schedule settings – this function enables the user to choose the schedule which will apply in a zone (local schedule, global schedule 1-5) during cooling , if the zone operation is based on a schedule. • Constant temperature – this function enables the user to define a separate pre-set temperature that will apply in the zone during cooling, if the zone operation is based on a constant temperature.

  • Page 21: Maximum Temperature

    5.5. MAXIMUM TEMPERATURE Maximum floor temperature is a threshold value of floor temperature. If this value is exceeded, the contact will open (the device is disabled) regardless of current room temperature. 5.6. HYSTERESIS Hysteresis – floor temperature hysteresis defines tolerance for the maximum and minimum temperature. The settings range is 0,1-5°C.

  • Page 22: Valve Actuators

    8.2. VALVE ACTUATORS This option is used to remove the actuators STT-868 , STT-869 or EU-G-X from the controller memory. 8.3. INFORMATION After this option has been selected, the display shows information about the actuator version, battery level, range and the actuator opening level (%).

  • Page 23: Window Sensors

    • Protection - When this function is selected, the external controller monitors the temperature. If the pre-set temperature is exceeded by the value specified in <range> parameter, all actuators in a given zone will be closed (0% opening). This function is active only when sigma function has been activated. •...

  • Page 24: Fitter's Menu

    VIII. FITTER'S MENU Fitter’s menu is intended to be used by a qualified person in order to configure advanced controller settings. Voltage-free contact Operation delay Pump Additional contacts Registration Heating-cooling Operation mode Valve 1 registration Humidity protection Maksymalna wilgotność Factory settings 1.

  • Page 25: Heating - Cooling

    • all control lights are flashing simultaneously = the registration has been successful • the control lights are flashing one after another from one side to the other = MW-1 module has not received the signal from the main controller •...

  • Page 26: Single Stroke

    4.4. SINGLE STROKE This is the maximum single stroke (opening or closing) that the valve may make during one temperature sampling. The smaller the single stroke, the more precisely the set temperature can be achieved. However, it takes longer for the set temperature to be reached.

  • Page 27: Weather - Based Control

    4.10. WEATHER – BASED CONTROL For the function of weather control to be active, the external sensor mustn't be exposed to sunlight or influenced by the weather conditions. After it is installed in an appropriate place, <Weather-based control> function needs to be activated in the controller menu.

  • Page 28: Valve Removal

    ON above threshold - the pump is activated above the pre-set activation temperature. If the pump is to be activated above the threshold, the user should also define the threshold temperature of pump activation. The temperature is read from CH sensor. Deactivation threshold*- the pump is enabled below the pre-set deactivation temperature measured on CH sensor.

  • Page 29: Schedule Settings

    IX. SCHEDULE SETTINGS Once the schedule has been selected (Menu -> Zones -> Zone 1-8 -> Weekly control), the user may select, view and edit a given schedule. Schedule view screen: 1. Time periods. 2. Pre-set temperature for time perdiods. 3.

  • Page 30: Software Update

    NOTE The user may program 3 different time periods in a given schedule (with the accuracy of 15 minutes). When the schedule for all days of the week is ready, confirm the settings using EXIT button and select <Confirm>. Active option will be highlighted in white.

  • Page 31: Protections And Alarms

    XII. PROTECTIONS AND ALARMS Alarm Possible cause How to fix it Sensor damaged (room Sensor damaged - Check the connection between the sensor, floor sensor) sensor and the controller - Replace the sensor with a new one, contact the service staff if necessary. No communication with - No range - Put the sensor/regulator in a...
  • Page 32 STT-869 actuator alarm ERROR #1 - Calibration error - The limit switch sensor is damaged - Calibrate actuator again by holding 1 – Moving the screw to the the communication button until the mounting position took too third flash of green light much time - Call the service staff - The actuator has not been screwed to...
  • Page 33 - motor load measurement failure occurred Check the assembly and recalibrate the actuator. - valve movement was too small, or a non-standard valve encountered Bolt extension too short. The bolt met - motor load measurement failure ERROR #3 - Calibration error resistance too early during the - motor load measurement inaccurate calibration process.
  • Page 34 EU Declaration of conformity Hereby, we declare under our sole responsibility that EU-L-9r manufactured by TECH STEROWNIKI II Sp. z o.o., head-quartered in Wieprz Biała Droga 31, 34-122 Wieprz, is compliant with Directive 2014/53/EU of the European parliament and of the Council of 16 April 2014 on the harmonisation of the laws of the Member States relating to the making available on the market of radio equipment, Directive 2009/125/EC establishing a framework for the setting of ecodesign requirements for energy-related products as well as the regulation by the MINISTRY OF ENTREPRENEURSHIP AND TECHNOLOGY of 24 June...
