MOS-1130Y-0201E Isolated CANBus iDoor Module
User Manual

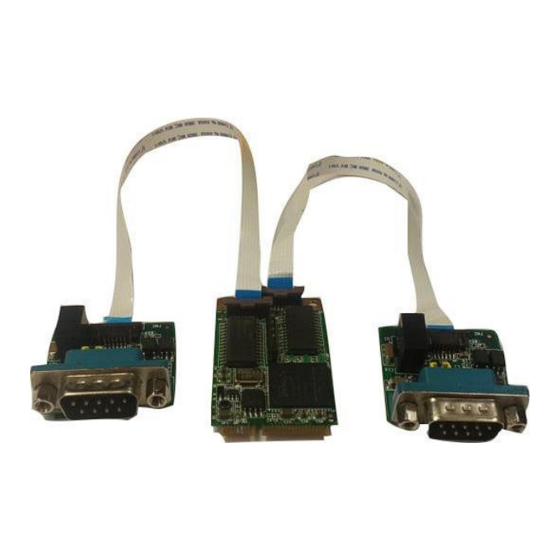

MOS-1130Y-0201E is a 2-Ports Isolated CANBus mini- PCIe, DB9.
This manual covers the pin assignment for the CAN connector,and the wiring of the two transmission wires.
1. Packing List
MOS-1130
miniPCIe Card x 1
DB37 I/O Plate x 2 with iDoor bracket x 1
FPC cable x 2
Startup Manual x 1
Note: If any of these items are missing or damaged, please contact your distributor or sales representative immediately.
2. Initial Inspection
You should find the following items inside the shipping package:
Mini-PCIe communication interface card
Industrial Communication Driver, Utility and mini-PCIe communication card user's manual in DVD-ROM
MOS-1130 was carefully inspected mechanically and electrically before it was shipped. It should be free of marks and
scratches and in perfect working order when received.
As you unpack the MOS Module, check for signs of shipping damage (damaged box, scratches, dents, etc.). If it is
damaged or it fails to meet specifications, notify our service department or your local sales representative immediately. Also
notify the carrier. Retain the shipping carton and packing material for inspection by the carrier.
After inspection we will make arrangements to repair or replace the unit. When you handle the MOS Module, remove
it from its protective packaging by grasping the rear metal panel. Keep the anti-vibration packing. Whenever you remove
the card from the PC, store it in this package for protection.
Discharge your body's static electric charge by touching the back of the grounded chassis of the system unit
Warning!
(metal) before handling the board. You should avoid contact with materials that hold a static charge such as
plastic, vinyl and Styrofoam. Handle the board only by its edges to avoid static damage to its integrated circuits.
Avoid touching the exposed circuit connectors. We also recommend that you use a grounded wrist strap and place
the card on a static dissipative mat whenever you work with it.
MOS-1130 User Manual 1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Advantech MOS-1130Y-0201E
Summary of Contents for Advantech MOS-1130Y-0201E

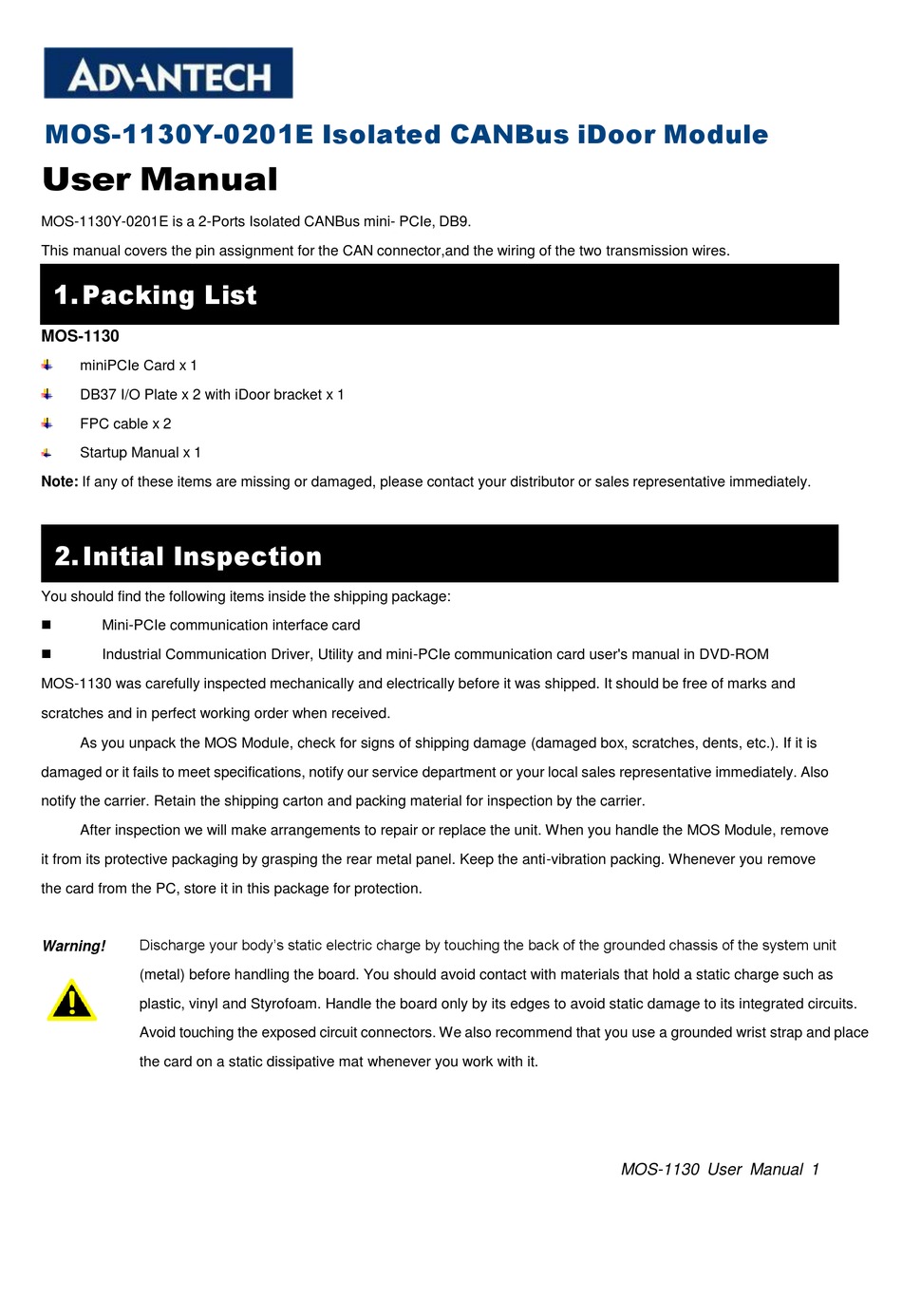

- Page 1 MOS-1130Y-0201E Isolated CANBus iDoor Module User Manual MOS-1130Y-0201E is a 2-Ports Isolated CANBus mini- PCIe, DB9. This manual covers the pin assignment for the CAN connector,and the wiring of the two transmission wires. 1. Packing List MOS-1130 miniPCIe Card x 1...
- Page 2 Advantech provides WDM CAN driver that allows you to configure your hardware and store the settings in your Windows 3. Driver and Advantech Device Manager registry. You must install the WDM CAN driver if you want to add and manage Advantech CAN cards.
- Page 3 4.2 Terminator Resistor Setup (JP1) You can set the terminator resistor if necessary to match impedance. Each port has a separate resistor located on its own transceiver board. Table 1: MOS-1130Y-0201E Terminator Resistor Jumper Setting Status Value of Terminator Resistor (Ohm)
- Page 4 Figure 3 shows the pin assignment for the card’s male DB-9 connectors and corresponding pin assignments of female DB-9 connectors of the cable. Figure 3 MOS-1130Y-0201E DB-9 connector pin assignments Figure 4 MOS-1130Y-0201E DB-9 connector schematics The CAN standard supports half–duplex communication. This means that just two wires are used to transmit and receive data.
- Page 5 Figure 6 Wiring on module side MOS-1130 User Manual 5...
