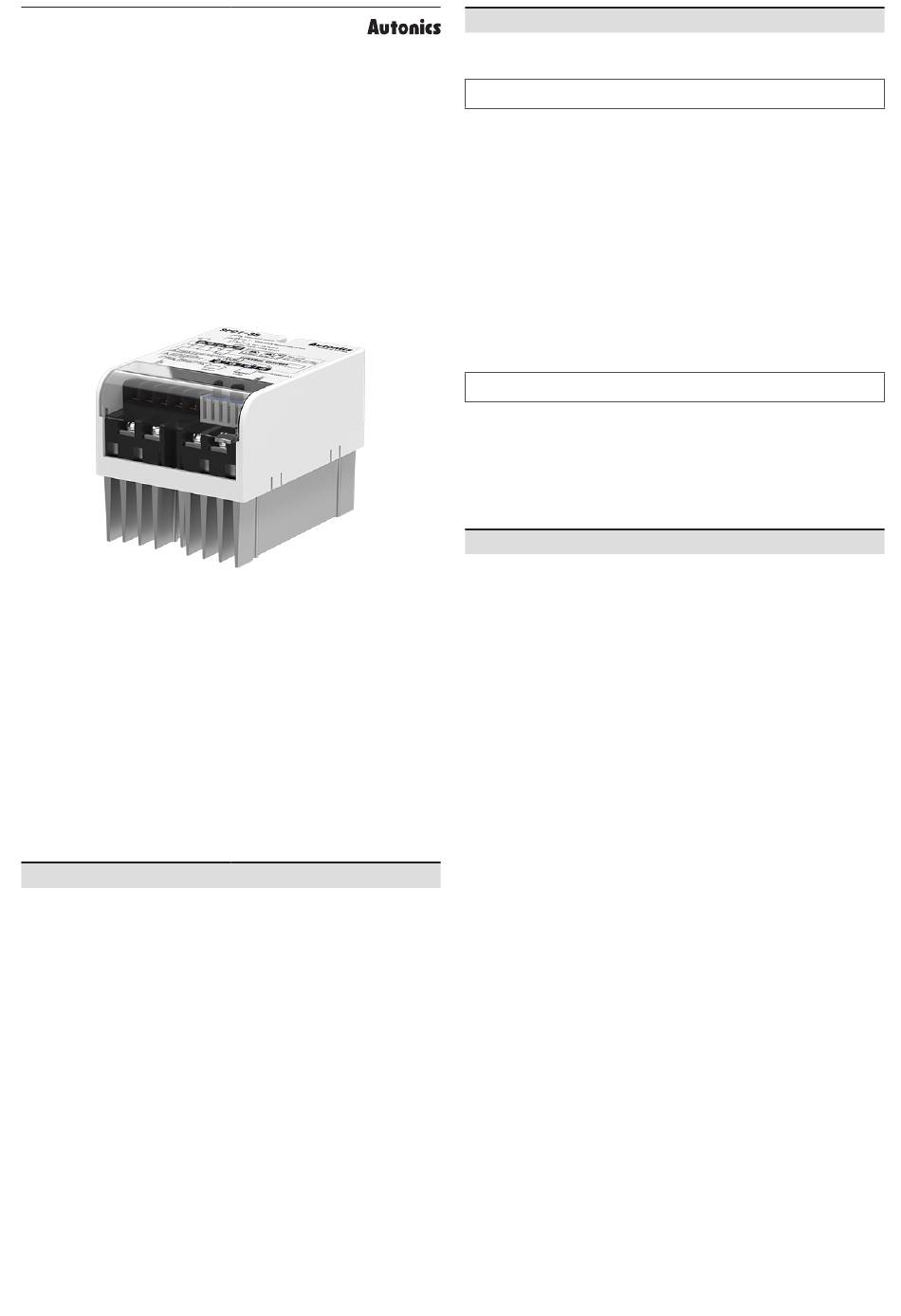

Autonics SPC Series Quick Start Manual

TCD210145AA_MODI

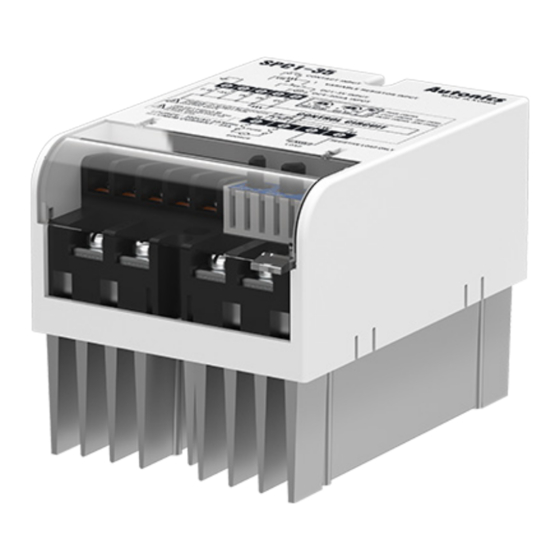

Single-Phase
Power Controllers
SPC Series
PRODUCT MANUAL
For your safety, read and follow the considerations written in the instruction
manual, other manuals and Autonics website.
The specifications, dimensions, etc. are subject to change without notice for product
improvement. Some models may be discontinued without notice.
Features
• Various and simple input specification
- DC 4 - 20 mA, 1 - 5 VDCᜡ, External 24 VDCᜡ
- External adjuster (1 kΩ)
- External contact (ON / OFF)
• Various function
- Out ADJ (output limit) function
- Soft Start function (except for ON/OFF control type)
- Out display function
- 50 / 60 Hz automatic converting function
• Various control by mode switches
- Phase control
- Cycle control (zero cross turn-on)
- ON/OFF control (zero cross turn-on)
ᜫ
Safety Considerations
• Observe all 'Safety Considerations' for safe and proper operation to avoid hazards.
• ᜸ symbol indicates caution due to special circumstances in which hazards may occur.
᜸ Warning
Failure to follow instructions may result in serious injury or death.
01. Fail-safe device must be installed when using the unit with machinery that
may cause serious injury or substantial economic loss. (e.g. nuclear power
control, medical equipment, ships, vehicles, railways, aircraft, combustion
apparatus, safety equipment, crime / disaster prevention devices, etc.)
Failure to follow this instruction may result in personal injury, economic loss or fire.
02. Do not use the unit in the place where flammable / explosive / corrosive gas,
high humidity, direct sunlight, radiant heat, vibration, impact, or salinity
may be present.
Failure to follow this instruction may result in explosion or fire.
03. Install on the device panel, and ground to the F.G. terminal separately.
Failure to follow this instruction may result in fire or electric shock.
04. Do not connect, repair, or inspect the unit while connected to a power
source.
Failure to follow this instruction may result in fire or electric shock.
05. Check 'Connections' before wiring.
Failure to follow this instruction may result in fire.
06. Do not disassemble or modify the unit.
Failure to follow this instruction may result in fire or electric shock.
᜸ Caution
Failure to follow instructions may result in injury or product damage.
01. Use the unit within the rated specifications.
Failure to follow this instruction may result in fire or product damage.
02. Use a dry cloth to clean the unit, and do not use water or organic solvent.
Failure to follow this instruction may result in fire.
03. Keep the product away from metal chip, dust, and wire residue which flow
into the unit.
Failure to follow this instruction may result in fire or product damage.
Cautions during Use
• Follow instructions in 'Cautions during Use' .
Otherwise, it may cause unexpected accidents.
• Use the product, after 3 sec of supplying power.
• Before use, set the mode and function according to the specification.
Especially, be cautious that the product does not operate when OUT ADJ. is set to 0
%. Since mode/parameter can not be changed during operation, set the mode and
function after turning off the power.
• To ensure the reliability of the product, install the product on the panel or metal
surface vertically to the ground.
• Install the unit in the well ventilated place.
• While supplying power to the load or right after turning off the power of the load, do
not touch the body and heat sink. Failure to follow this instruction may result in a burn
due to the high temperature.
• Install a power switch or circuit breaker in the easily accessible place for supplying or
disconnecting the power.
• Do not wire to terminals which are not used.
• The rapid fuse must be connected between R terminal and the power source.
• Do not use near the equipment which generates strong magnetic force or high
frequency noise.
• This unit may be used in the following environments.
- Indoors (in the environment condition rated in 'Specifications')
- Altitude max. 2,000 m
- Pollution degree 2
- Installation category III
