Autonics SPC1 Series Quick Start Manual

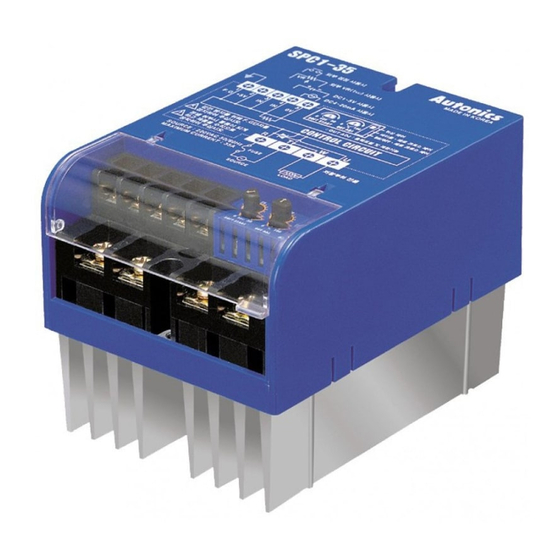

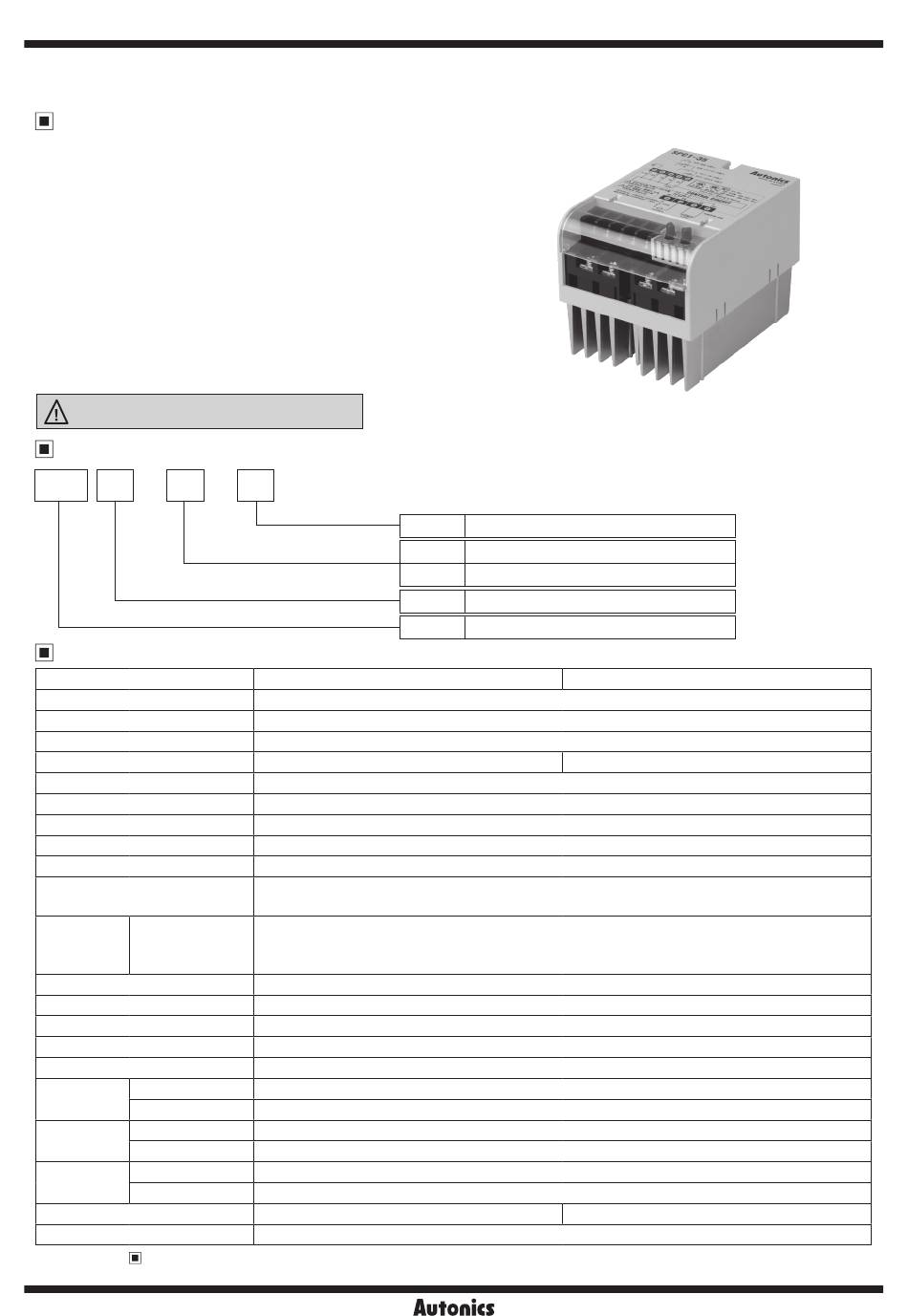

SPC1 Series
SPC1 Series
Single-Phase, Power Controller
Features
● Various and simple input specification
• DC4-20mA, 1-5VDC, External 24VDC
• External adjuster (1kΩ)
• External contact (ON/OFF)
● Various function
• OUT ADJ (output limit) function
• SOFT START function (except for ON/OFF control method)
• OUT display function
• 50/60Hz automatic converting function
● Various control method by switch
• Phase control method
• Cycle control method (zero cross turn-on)
• ON/OFF control method (zero cross turn-on)
Please read "Safety considerations" in operation
manual before using.
Ordering Information
SPC 1 - 35
Rated load current
Control phase
Item
Specifications
Model
Power supply
Allowable voltage range
Operating frequency fluctuation ±1Hz
Rated load current
Control power
Control range
Applied load
Cooling method
Control circuit
Control input
Control By selection
method switch
Starting type
Indicator
Insulation resistance
Dielectric strength
Noise immunity
Mechanical
Vibration
Malfunction
Mechanical
Shock
Malfunction
Ambient temp.
Environment
Ambient humi.
Wire specification
Unit weight
※ 1: Refer to '
Operation and Function'.
※ Environment resistance is rated at no freezing or condensation.
I-50
- E
Marking language
SPC1-35-E
220VACᜠ 50/60Hz
90 to 110% of rated voltage
35A (single-phase)
220VACᜠ
Phase control: 0 to 98%, Cycle control: 0 to 100%
Resistance load (min. load: over 5% of rated current)
Natural cooling
Micom control type
• 1-5VDCᜡ • DC4-20mA (250Ω)
• External adjuster (1kΩ)
※ 1
• Phase control
• Cycle control (zero cross turn-on) - Period 0.5 sec, 2.0 sec, 10 sec
• ON/OFF control (zero cross turn-on)
SOFT START (0 to 50 sec variable)
Output indicator (OUT): red LED
Over 100MΩ (at 500VDC megger)
2000VAC 50/60Hz for 1minute
±2kV the square wave noise (pulse width: 1us) by the noise simulator
0.75mm amplitude at frequency of 10 to 55Hz (for 1 min) in each X, Y, Z direction for 1 hour
0.5mm amplitude at frequency of 10 to 55Hz (for 1 min) in each X, Y, Z direction for 10 min
300m/s² (approx. 30G) in each X, Y, Z direction for 3 times
100m/s² (approx. 10G) in each X, Y, Z direction for 3 times
0 to 50℃, storage: -25 to 65℃
35 to 85%RH, storage: 35 to 85%RH
AWG16 to 8
Approx. 1kg
E English
35 35A
50 50A
1 Single-phase
SPC Solid state power controller
SPC1-50-E
50A (single-phase)
• ON/OFF (external relay contact or 24VDCᜡ)
• Output limit input (front OUT ADJ. adjuster)
AWG8 to 6
※ 1
