DRW190758AE

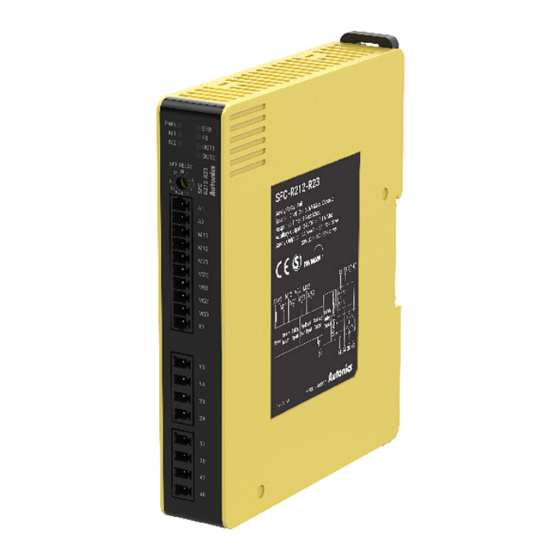

Safety Controllers /
Safety Relay Unit
SFC / SFC-R Series
For your safety, read and follow the considerations written in the instruction
manual, other manuals and Autonics website.
The specifications, dimensions, etc. are subject to change without notice for product
improvement. Some models may be discontinued without notice.
Major Features
• Slim size (17.5 / 22.5 / 35 mm) for saving installation space
• Various LED indicators for displaying status (power / input / logic input / error /
feed back / output)
• Screw / Screwless connection models
• P channel FET / Relay contact safety output models
• Available off-delay output and time setting (advanced/non-contact door switch/relay
output models)
• Available logic (AND) connection and extension relay unit connection (advanced/non-
contact door switch models)
• The product structure conforms with international safety regulations and standards
: SIL3, SIL CL3, PLe, CE, UL Listed, and S Mark
ᜢ ᜩ ᜨ ᜪ
Safety Considerations
• Observe all 'Safety Considerations' for safe and proper operation to avoid hazards.
• ᜸ symbol indicates caution due to special circumstances in which hazards may occur.
᜸ Warning
Failure to follow instructions may result in serious injury or death.
01. Fail-safe device must be installed when using the unit with machinery that may
cause serious injury or substantial economic loss. (e.g. nuclear power control,
medical equipment, ships, vehicles, railways, aircraft, combustion apparatus,
safety equipment, crime/disaster prevention devices, etc.)
Failure to follow this instruction may result in personal injury, economic loss or fire.
02. Responsible person for use is an operator who:
- is fully knowledgeable about the installation, settings, use and maintenance of
the product
- is familiar with the requirements of laws, regulations and standards in the
country or region where the product is installed and used.
Responsible person for use has an obligation to educate the requirements to
machine users.
Machine users are persons who have been fully trained by the responsible person
for use and can operate the machine correctly. When any error occurs during the
operation of the machine control system, they have a responsibility to report it to
the responsible person for use immediately.
If an unqualified person operates the product, it may result in personal injury, economic
loss or fire.
03. Qualified personnel shall carry out installation, configuration and combination
with the machine control system.
If an unqualified person carry out installation, configuration and combination with the
machine control system, it may cause malfunction or result in accidents.
04. When the connected devices (e.g., motor) is not operating after installation, check
that functions and settings of the product correctly operate as you intended.
Failure to follow this instruction may result in personal injury, economic loss or fire.
05. Be sure to consider the delay of the safety output when determining the safety
distance to the hazardous source due to the response time (safety input and logic
input), setting of off-delay time and off-delay time accuracy.
The machine may not stop before an operator reaches the hazardous zone so that it may
result in personal injury and economic loss.
06. Do not use the unit in the place where flammable/explosive/corrosive gas, high
humidity, direct sunlight, radiant heat, vibration, impact, salinity, moisture, or
steam, or dust may be present.
Failure to follow this instruction may result in explosion or fire.
07. Do not disassemble or modify the unit.
Failure to follow this instruction may result in personal injury or fire. In addition, the
manufacturer does not guarantee the performance and functionality.
08. Do not connect, repair, inspect, or replace the unit while connected to a power
source.
Failure to follow this instruction may cause the external devices connected to the product
may unexpectedly operate. For more information, please refer to laws, regulations and
standards in the country or region.
09. Install the product on a device panel or DIN rail inside the control room with IP54
or higher protection structure.
Failure to follow this instruction may result in fire or electric shock.
10. When using the product mounted on a DIN rail, fix it using an End plate (sold
separately).
Failure to follow this instruction may result in fire or electric shock.
11. When you use the product in a place where vibrations or shocks are very high, use
screws to fix it to the panel for use.
Failure to follow this instruction may result in personal injury and fire.
12. Check 'Connections' before wiring. And make sure that there are no safety
problems.
Failure to follow this instruction may result in fire.
13. You must conduct daily and regular inspections every six months.
Failure to follow this instruction may result in personal injury, economic loss or fire due to
the malfunction of the product.
14. The auxiliary output is non-safety output, therefore, do not use it for safety
purposes.
Failure to follow this instruction may result in personal injury, economic loss or fire.
15. This product is designed to comply with industrial environment A. Use of this
product in residential environment B may cause unwanted electromagnetic
interference. In this case, it requires to take appropriate mitigation measures.

Advertisement

Table of Contents
loading

Summary of Contents for Autonics SFC-R Series

  • Page 1 For your safety, read and follow the considerations written in the instruction 13. You must conduct daily and regular inspections every six months. manual, other manuals and Autonics website. Failure to follow this instruction may result in personal injury, economic loss or fire due to The specifications, dimensions, etc.
  • Page 2: Specifications

    • Do not drop the product or expose it to excessive vibration or shock. It may cause failure or 06)  SFC-N units can only be connected to Autonics non-contact door switch units SFN Series. malfunction. Unit...
  • Page 3: Parts Descriptions

    Dimensions Front Back 01. Indicators • Unit: mm, For the detailed drawings, follow the Autonics website. 02. Power supply, I/O signal terminals • The below is based on SFC-A (screw type) model 03. Safety output (P ch FET or relay)
  • Page 4 -|Transparent Guide|- Connections Wiring of Input ■ Basic unit: SFC-422-□ ■ Advanced unit: ■ A1, A2: Power supply input SFC-A322-23□-□ The input terminals for power supply. Connect the positive side (24 VDCᜡ) of the external power supply to the A1 terminal and connect the negative side (GND) of the external power supply to the A2 terminal.
  • Page 5: Error Indication

    Calculated machine response time: ()ms / Actual machine response time: ()ms Be sure to check and take measures according to the table below, and turn the power on again. If the measures are not valid, please contact the Autonics. ■ Daily inspection...
  • Page 6 -|Transparent Guide|- Failure Rate Type Model PFHD Category MTTFd DCavg Note SFC-422 SIL 3 3.39E-09 264.38 year 99.00% SFC-422-L SFC-A322-23 99.00% SFC-A322-23-L SFC-A SIL 3 5.29E-09 218.18 year SFC-A322-2300 99.00% SFC-A322-2300-L SFC-N322-23 99.00% SFC-N322-23-L SFC-N SIL 3 7.36E-09 183.67 year SFC-N322-2300 99.00% SFC-N322-2300-L...
  • Page 7 -|Transparent Guide|- Connection Examples 1 ■ Advanced unit-Safety light curtain Connections Start PL/Safety category Safety controller: Advanced unit SFC-A Series Safety light curtain: SFL / SFLA Series Auto PLe/Cat.4 equivalent Contactor of rated load (from Annex C of ISO 13849-1) 24VDC FUSE SFL(A) Series...
  • Page 8 -|Transparent Guide|- Connection Examples 2 ■ Advanced unit-Safety door lock switch, Expansion relay unit Connections Start PL/Safety category Safety controller: Advanced unit SFC-A Series Safety door lock switch: SFDL Series Safety limit switch (from Annex C of ISO 13849-1) Manual Safety emergency stop button switch: SF2ER Series PLe/Cat.4 equivalent Push button switch (from Annex C of ISO 13849-1)
  • Page 9 -|Transparent Guide|- Connection Examples 3 ■ Non-contact door switch unit-Safety non-contact door switch Connections Start PL/Safety category Safety controller: Non-contact door switch unit SFC-N Series Safety emergency stop button switch: SF2ER Series Safety limit switch (from Annex C of ISO 13849-1) Auto PLd/Cat.3 equivalent Push button switch (from Annex C of ISO 13849-1)
  • Page 10 -|Transparent Guide|- Connection Examples 4 ■ Basic unit-Safety emergency stop switch, Non-contact door switch unit-Safety non-contact door switch Connections Start PL/Safety category Safety controller: Basic unit SFC Series Safety emergency stop button switch: SF2ER Series Manual Push button switch (from Annex C of ISO 13849-1) Contactor of rated load (from Annex C of ISO 13849-1) PLd/Cat.3 equivalent Safety controller: Non-contact door switch unit SFC-N Series...
  • Page 11 -|Transparent Guide|- Connection Examples 5 ■ Relay unit-Safety emergency stop switch Connections Start PL/Safety category Safety controller: Relay unit SFC-R212 Safety emergency stop button switch: SF2ER Series Manual PLe/Cat.4 equivalent Push button switch (from Annex C of ISO 13849-1) Contactor of rated load (from Annex C of ISO 13849-1) Safety controller: Relay unit Power Safety Input 1...
  • Page 12 -|Transparent Guide|- Connection Examples 6 ■ Relay unit-Safety light curtain Connections Start PL/Safety category Safety controller: Relay unit SFC-R412 Safety light curtain: SFL / SFLA Series Auto PLe/Cat.4 equivalent Contactor of rated load (from Annex C of ISO 13849-1) Safety controller: Relay unit FUSE SFL(A) Series Emitter...
  • Page 13 Motor operation command Rotation of motor Off-delay time • Set the switches for off-delay time on the front and back of the relay unit to the same. 18, Bansong-ro 513Beon-gil, Haeundae-gu, Busan, Republic of Korea, 48002 www.autonics.com | +82-51-519-3232 | sales@autonics.com...
