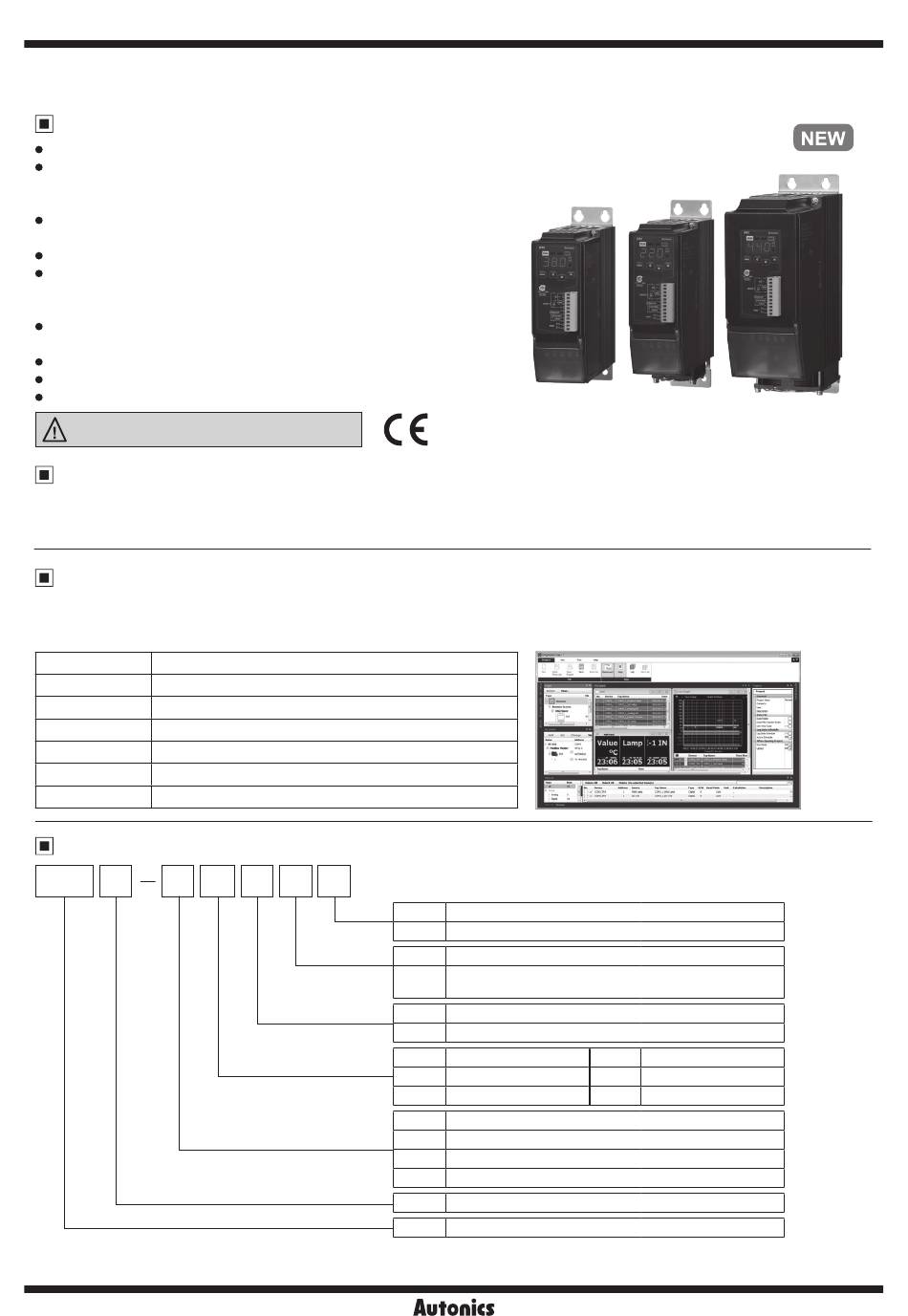

SPR1 Series

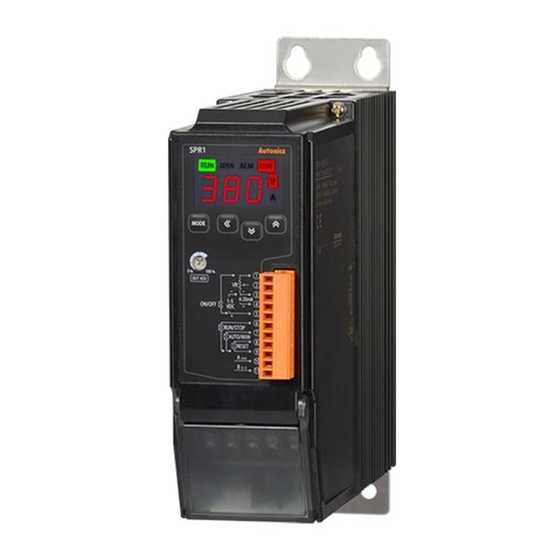

LED Display, Single-Phase, Slim, Power Controller
Features
Refine and slim body design
LED display for real time monitoring (control input, load voltage,
load current, load power, load resistance and heatsink temperature)
and checking parameter settings
Stable control by feedback control
(constant current/constant voltage/constant power control)
Communication output model available: RS485 (Modbus RTU method)
Convenient parameter settings via PC (RS485 communication)
: Free download the comprehensive device management program
(DAQMaster)
Various alarm functions (alarm output)
: overcurrent, overvoltage, heatsink overheat, fuse break, SCR error
Easy installation of the bracket
Simple fuse replacement structure for easy maintenance
Highly reliable SCR (IXYS) element
Please read "Safety considerations" in operation
manual before using.
Manual
● For the detail information and instructions, please refer to user manual for communication, and be sure to follow cautions written in the
technical descriptions (catalog, homepage). Visit our homepage (www.autonics.com) to download manuals.
● User manual for communication manual describes for RS485 communication (Modbus RTU protocol) and parameter address map data.
Comprehensive Device Management Program (DAQMaster)
● DAQMaster is a comprehensive device management software for setting parameters and monitoring processes.
● Visit our website (www.autonics.com) to download user manual and comprehensive device management program.
< Computer specification for using software >
Item
Minimum specifications
System
IBM PC compatible computer with Pentium Ⅲ or above
Operations
Windows 98/NT/XP/Vista/7/8/10
Memory
256MB+
Hard disk
1GB+ of available hard disk space
VGA
Resolution: 1024×768 or higher
Others
RS232C serial port (9-pin), USB port
Ordering Information
SPR
1
2
Rated load voltage
Control phase
Item
※ 1: Product is not equipped with a rapid fuse inside. Install the suitable fuse for rated load current of the model separately.
(The performance of the product is guaranteed only when using the fuse provided by us.)
I-30
70
T
F
F
Fuse
Feedback
control
Option output
Rated load current
< DAQMaster screen >
N
Non-fuse
※ 1
F
Fuse
N
Normal control
Normal/constant current/constant voltage
F
/constant power control
N
Alarm output
T
Alarm+RS485 comm. output
25
25A
35
35A
50
50A
1
110VAC
2
220VAC
3
380VAC
4
440VAC
1
Single-phase
SPR
Solid State Power Regulator (slim type)
70
70A
100
100A
150
150A
