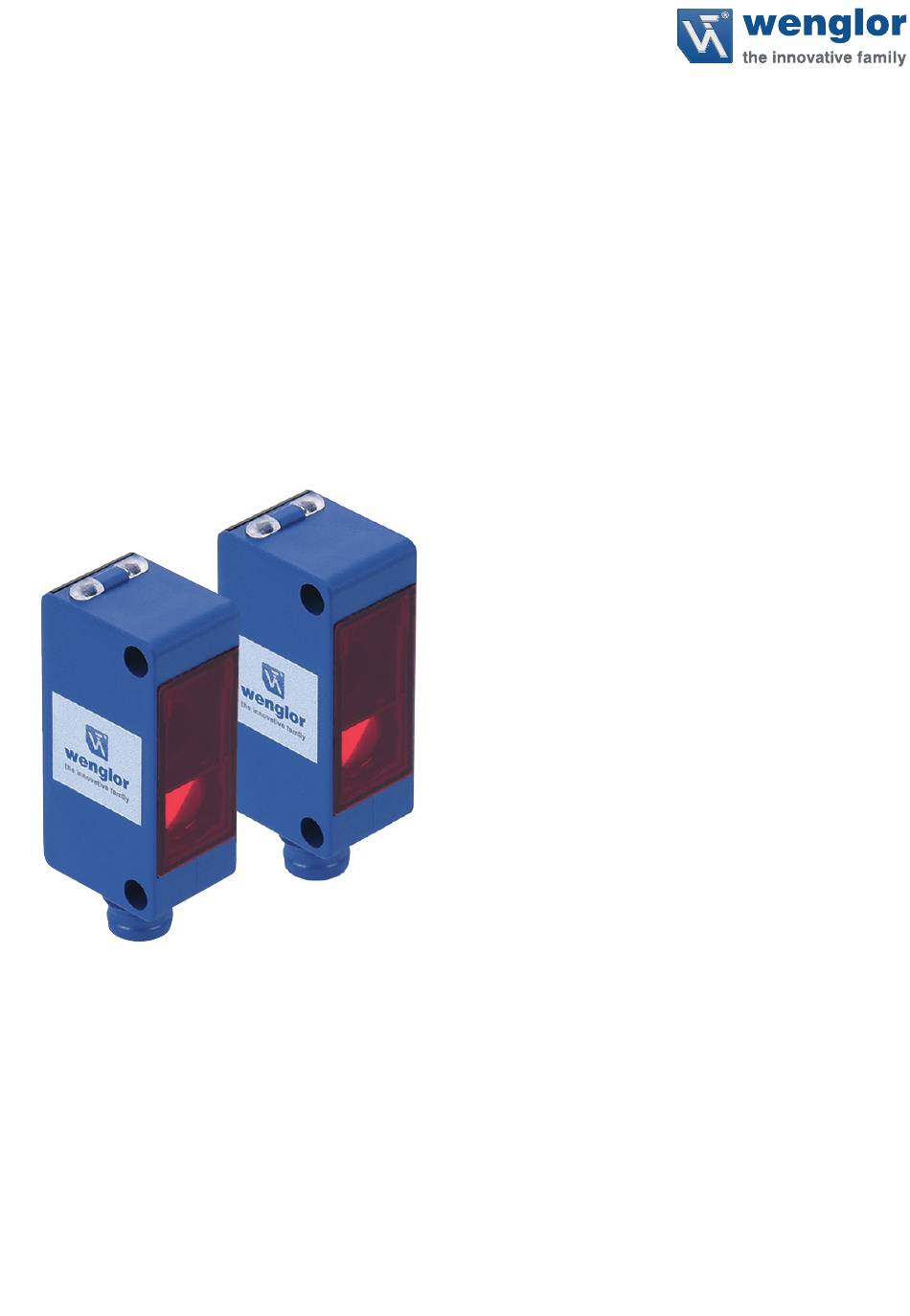

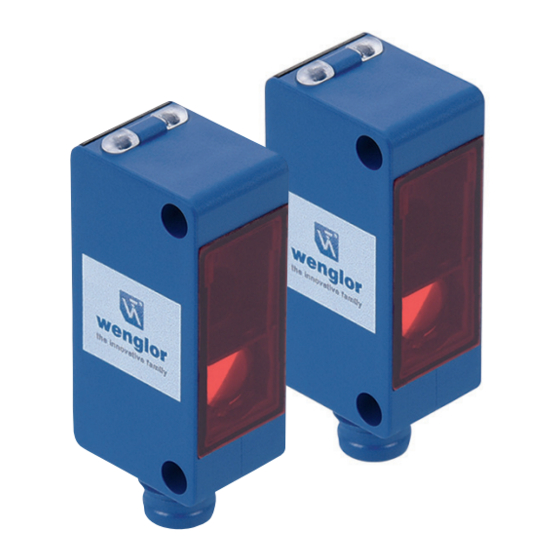

- Page 1 P1KExxx P1KSxxx Through-Beam Sensors Operating Instructions Translation of the Original Operating Instruction Subject to change without notice Available as PDF version only Version: 1.2.0 Status: 23.07.2018 www.wenglor.com...
-
Page 2: Table Of Contents
Table of Contents 1. General ...........................3 1.1 Information Concerning these Instructions ..................... 3 1.2 Explanations of Symbols ......................... 3 1.3 Limitation of Liability ..........................4 1.4 Copyrights ..............................4 2. For Your Safety ........................5 2.1 Use for Intended Purpose ........................5 2.2 Use for Other than the Intended Purpose .................... -
Page 3: General
• The product is subject to further technical development, and thus the information contained in these operating instructions may also be subject to change. The current version can be found at www.wenglor.com in the product’s separate download area. NOTE! The operating instructions must be read carefully before using the product and must be kept on hand for later reference. -
Page 4: Limitation Of Liability
• wenglor assumes no liability for printing errors or other inaccuracies contained in these operating instructions, unless wenglor was verifiably aware of such errors at the point in time at which the operating instructions were prepared. -
Page 5: For Your Safety
• The product is not suitable for use in potentially explosive atmospheres. • The product may only be used with accessories supplied or approved by wenglor, or combined with approved products. A list of approved accessories and combination products can be accessed at www.wenglor.com on the product detail page. -
Page 6: Personnel Qualifications
• In the event of possible changes, the respectively current version of the operating instructions can be accessed at www.wenglor.com in the product’s download area. • Read the operating instructions carefully before using the product. -
Page 7: Technical Data
3. Technical Data Optical Data Service life (ambient temp. = +25° C) 100000 h Max. permissible ambient light 10000 Lux Electrical Data Supply power 10…30 V DC IO-Link supply voltage 18…30 V DC Temperature drift < 10 % Temperature range −40…60 °C Switching output voltage drop <... -
Page 8: Spot Diameter
Order Number P1KS P1KE Technical Data Sensor Type Emitter Reciever Range 6.000 mm 6.000 mm 10.000 mm 10.000 mm Light Source Red Light Laser (red) Red Light Laser (red) Laser Class (EN 60825-1) — — Switching hysteresis — — < 10 % <... -
Page 9: Complementary Products
Smallest detectable part 2,5 mm 0,6 mm 1,5 mm Table 4 3.1 Complementary Products wenglor can provide you with suitable connection technology for your product. Suitable mounting technology no. Suitable connection technology no. PNP-NPN converter BG7V1P-N-2M IO-Link master wTeach2 software DNNF005... -
Page 10: Layout
3.2 Layout P1KE001, P1KE003, P1KE005, P1KE008 = Receiving diode = Alignment tool / switching status indicator P1KS001 = Emitter diode P1KE002, P1KE004, P1KE006, P1KE007, P1KE008, P1KE0010 = Receiving diode = Alignment tool / switching status indicator P1KS002, P1KS003 Technical Data... - Page 11 = Emitter diode Screw M3 = 0,5 Nm Potentiometer = 40 Nmm Dimensions specified in mm (1 mm = 0,03937 Inch) Through-Beam Sensors...
-
Page 12: Control Panel
3.3 Control Panel Reciever Emitter 04 = Function indicator 05 = switching distance adjuster 30 = switching status indicator / contamination warning 68 = supply power indicator 3.4 Scope of Delivery • Sensor (emitter or reciever) • Safety precautions • Mounting-Set 01 Technical Data... -
Page 13: Transport And Storage
4. Transport and Storage 4.1 Transport Upon receipt of shipment, the goods must be inspected for damage in transit. In the case of damage, con- ditionally accept the package and notify the manufacturer of the damage. Then return the device, making reference to damage in transit. -
Page 14: Electrical Connection
5.2 Electrical Connection Installation and Electrical Connection... -
Page 15: Diagnostics
Legend Encoder A Platinum measuring resistor Encoder B Supply Voltage + not connected Digital output MIN Supply Voltage 0 V Test Input Digital output MAX Supply Voltage (AC Voltage) Test Input inverted Digital output OK Switching Output (NO) Trigger Input Switching Output (NC) Synchronization In... - Page 16 Contamination Warning Flowcharts Through Beam Sensor no contamination Emitter Emitter Emitter Object Object Object Receiver Receiver Receiver Object not detected detected not detected Switching Status Indicator beginning contamination Emitter Emitter Emitter Object Object Object Receiver Receiver Receiver not detected detected not detected Object Switching Status Indicator...
-
Page 17: Settings
If it is connected with plus, the sensor switches off. The barrier is tested via this changing of the switching status. 7. IO-Link Further settings are possible via the IO-Link interface. The IODD can be found at www.wenglor.com in the product’s download area. Through-Beam Sensors... -
Page 18: Maintenance Instructions
Section “3. Technical Data”, page 7 1.1.0 23.07.18 Section “3. Technical Data”, page 7 (Temperature drift) 10.3 EU Declaration of Conformity The EU declaration of conformity can be found on our website at www.wenglor.com in the product’s download area. Maintenance Instructions...
