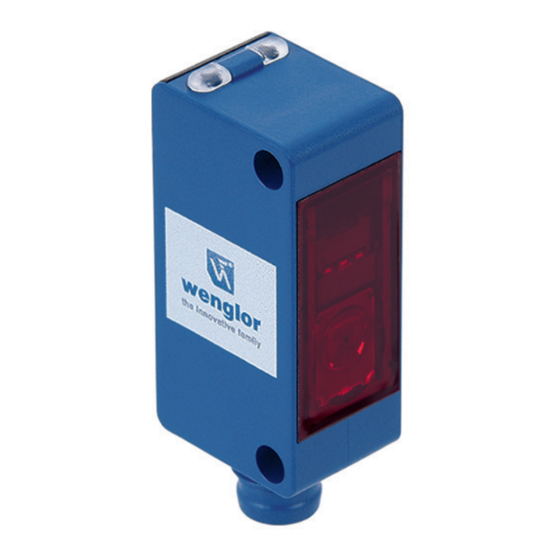

Wenglor P1KK Series Operating Instructions Manual
Retro-reflex sensors for clear glass recognition high-end with teach-in
Hide thumbs
Also See for P1KK Series:
- Operating instructions manual (15 pages) ,
- Operating instructions manual (18 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for Wenglor P1KK Series
Summary of Contents for Wenglor P1KK Series

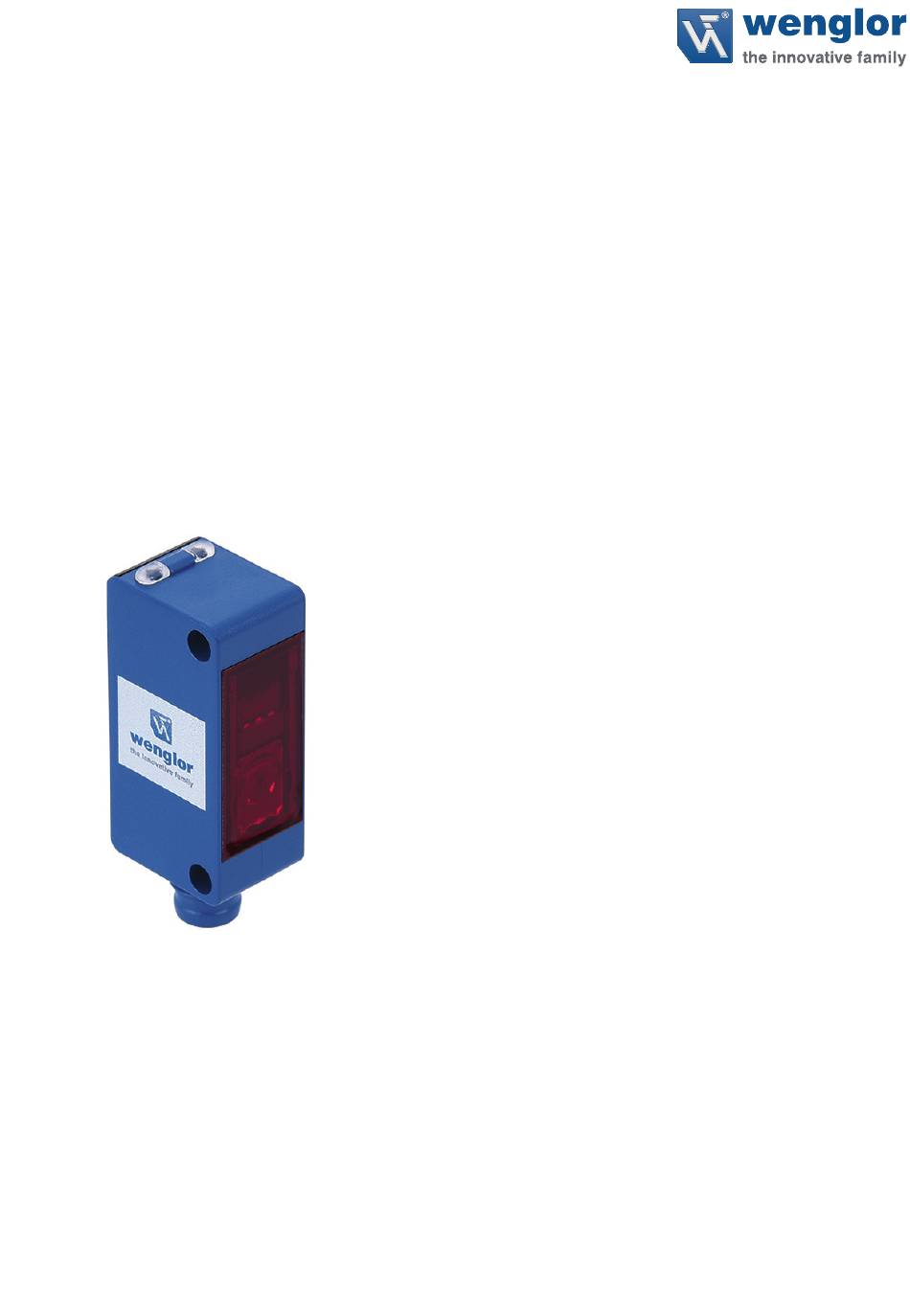

- Page 1 P1KKxxx Retro-Reflex Sensors for Clear Glass Recognition High-End with Teach-in Operating Instructions Translation of the Original Operating Instruction Subject to change without notice Available as PDF version only Version: 1.2.0 Status: 14.03.2019 www.wenglor.com...
-
Page 2: Table Of Contents
Table of Contents 1. General ...........................4 1.1 Information Concerning these Instructions ..................... 4 1.2 Explanations of Symbols ......................... 4 1.3 Limitation of Liability ..........................5 1.4 Copyrights ..............................5 2. For Your Safety ........................6 2.1 Use for Intended Purpose ........................6 2.2 Use for Other than the Intended Purpose .................... - Page 3 Retro-Reflex Sensors for Clear Glass Recognition...
-
Page 4: General
• The product is subject to further technical development, and thus the information contained in these operating instructions may also be subject to change. The current version can be found at www.wenglor.com in the product’s separate download area. NOTE! The operating instructions must be read carefully before using the product and must be kept on hand for later reference. -
Page 5: Limitation Of Liability
• wenglor assumes no liability for printing errors or other inaccuracies contained in these operating instructions, unless wenglor was verifiably aware of such errors at the point in time at which the operating instructions were prepared. -
Page 6: For Your Safety
• The product is not suitable for use in potentially explosive atmospheres. • The product may only be used with accessories supplied or approved by wenglor, or combined with approved products. A list of approved accessories and combination products can be accessed at www.wenglor.com on the product detail page. -
Page 7: Personnel Qualifications
• In the event of possible changes, the respectively current version of the operating instructions can be accessed at www.wenglor.com in the product’s download area. • Read the operating instructions carefully before using the product. -
Page 8: Technical Data
3. Technical Data P1KK Order Number Technical Data Optical Data Range 2,000 mm Reference reflector RQ100BA Clear glass recognition Switching hysteresis < 5 % Light source Red light Polarization filter Service life (ambient temp. = +25° C) 100,000 h Max. permissible ambient light 10,000 Lux Aperture angle 3°... -
Page 9: Spot Diameter
3.6.1 Spot diameter Range 0,5 m 1,3 m 2,0 m Spot diameter 30 mm 100 mm 150 mm Table 1 3.6.2 Smallest detectable part Range 0,4 m Smallest detectable part 2 mm 5 mm 8 mm Table 2 3.6.3 Switching distance Achievable switching distance depends on the utilized reflector. -
Page 10: Complementary Products
3.1 Complementary Products wenglor can provide you with suitable connection technology for your product. Suitable mounting technology no. Suitable connection technology no. PNP-NPN converter BG7V1P-N-2M IO-Link master wTeach2 software DNNF005 3.2 Layout 1= Optical axis M3 screw = 0.5 Nm Potentiometer = 40 Nmm Dimensions specified in mm (1 mm = 0.03937”) -
Page 11: Control Panel
3.3 Control Panel A 27 06 = teach-in key 30 = switching status indicator / contamination warning 68 = supply power indicator 3.4 Scope of Delivery • Sensor • Safety precautions • Mounting-Set 01 4. Transport and Storage 4.1 Transport Upon receipt of shipment, the goods must be inspected for damage in transit. -
Page 12: Installation And Electrical Connection
5. Installation and Electrical Connection 5.1 Installation • Protect the product from contamination during installation. • Observe all applicable electrical and mechanical regulations, standards, and safety rules. • Protect the product against mechanical influences. • Make sure that the sensor is mounted in a mechanically secure fashion. •... -
Page 13: Diagnostics
DANGER! Risk of personal injury or property damage due to electric current! Voltage conducting parts may cause personal injury or damage to equipment. • The electric device may only be connected by appropriately qualified personnel. 5.3 Diagnostics Causes for Triggering the Contamination Warning (blinking LED): Display LED Diagnosis/Cause Elimination... - Page 14 • Shut down the machine. • Analyze and eliminate the cause of error with the help of the diagnostics information. • If the error cannot be eliminated, please contact wenglor’s support department. • Do not operate in case of indeterminate malfunctioning.
-
Page 15: Settings
• Teach-in is conducted which is acknowledged when the LED lights up. • Move the object into the light barrier and check for correct functioning. 7. I/O-Link Further settings are possible via the IO-Link interface. The IODD can be found at www.wenglor.com in the product’s download area. 7.1 Teach-In Mode 7.1.1 Minimal Teach-In (default setting) -
Page 16: Pin Function, E/Ao2
7.3 Pin Function, E/AO2 The function of E/A2 can be configured either as an output or an input. 7.3.1 Input External Teach-In Teach in output A1 via the teach-in input. 1. Set the E/A2 pin function to external teach-in. With Ub setting active (default): 2. -
Page 17: I/O-Link
• Switch emitted light off • Test mode • Data storage 8. I/O-Link Process and parameters data, as well as the IODD, can be found at www.wenglor.com in the product’s sepa- rate download area. 9. Maintenance Instructions NOTE! • This wenglor sensor is maintenance-free. -
Page 18: Appendix
14.03.19 “7.2 Dynamic readjustment” on page 15 1.3.0 11.07.19 “7.3 Pin Function, E/AO2” on page 16 11.3 EU Declaration of Conformity The EU declaration of conformity can be found on our website at www.wenglor.com in the product’s download area. Appendix...
