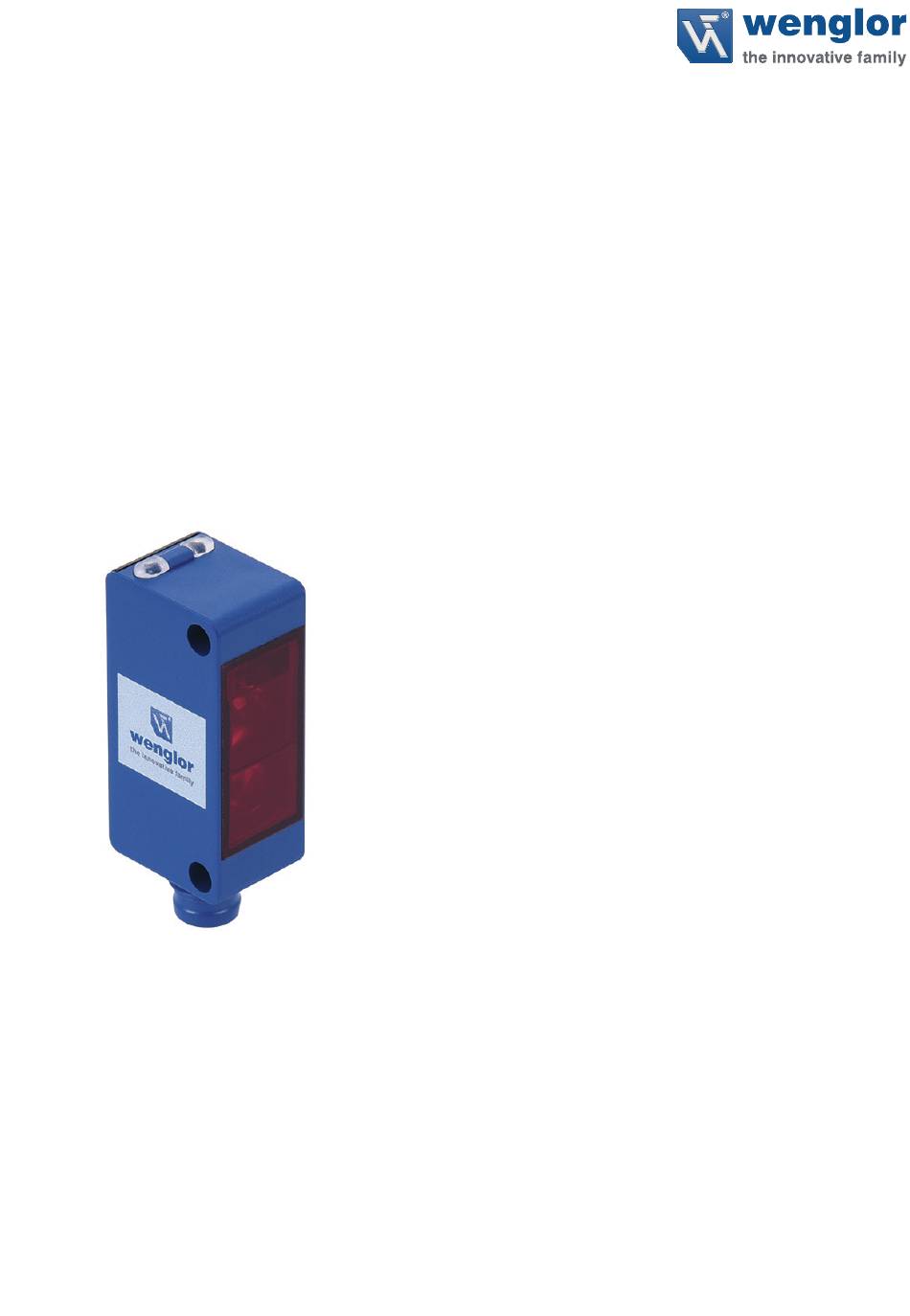

- Page 1 P1KLxxx Retro-Reflex Sensor Operating Instructions Translation of the Original Operating Instruction Subject to change without notice Available as PDF version only Version: 1.4.0 Status: 22.02.2021 www.wenglor.com...
-
Page 2: Table Of Contents
Table of Contents 1. General ..........................3 1.1 Information Concerning these Instructions .....................3 1.2 Explanations of Symbols .........................3 1.3 Limitation of Liability ..........................4 1.4 Copyrights ..............................4 2. For Your Safety ........................5 2.1 Use for Intended Purpose ........................5 2.2 Use for Other than the Intended Purpose....................5 2.3 Personnel Qualifications ..........................6 2.4 Modification of Products .........................6 2.5 General Safety Precautions ........................6... -
Page 3: General
• The product is subject to further technical development, and thus the information contained in these operating instructions may also be subject to change. The current version can be found at www.wenglor.com in the product’s separate download area. NOTE! The operating instructions must be read carefully before using the product and must be kept on hand for later reference. -
Page 4: Limitation Of Liability
• wenglor assumes no liability for printing errors or other inaccuracies contained in these operating instructions, unless wenglor was verifiably aware of such errors at the point in time at which the operating instructions were prepared. -
Page 5: For Your Safety
• The product is not suitable for use in potentially explosive atmospheres. • The product may only be used with accessories supplied or approved by wenglor, or combined with approved products. A list of approved accessories and combination products can be accessed at www.wenglor.com on the product detail page. -
Page 6: Personnel Qualifications
• In the event of possible changes, the respectively current version of the operating instructions can be accessed at www.wenglor.com in the product’s download area. • Read the operating instructions carefully before using the product. -
Page 7: Technical Data
3. Technical Data 3.1 Technical Data Optical Data Polarisation Filter Service life (ambient temp. = +25° C) 100000 h Max. permissible ambient light 10000 Lux Electrical Data Supply power 10…30 V DC IO-Link supply voltage 18…30 V DC Temperature drift <... - Page 8 Order Number P1KL Technical Data Range 5000 mm Light Source Red Light Opening Angle 4,5° Switching hysteresis < 10 % Laser Class (EN 60825-1) — Spot Diameter see Table 1 Smallest detectable part see Table 3 Current consumption < 20 mA (operating voltage = 24 V) Switching Frequency 2000 Hz...
-
Page 9: Spot Diameter
3.1.1 Spot diameter Range 0,2 m 2,0 m 5,0 m Spot diameter 30 mm 180 mm 400 mm Table 1 Range 0,2 m 5,0 m 12,0 m Spot diameter 4 mm 11 mm 22 mm Table 2 3.1.2 Smallest detectable part Distance sensor reflector 0,2 m 2,0 m... -
Page 10: Switching Distance
3.1.3 Switching distance Achievable switching distance depends on the utilized reflector. Nominal switching distance is achieved with reflector types RQ100BA (red light) and RE6151BM (laser). Achievable ranges for other reflectors are listed in the following tables: Red Light Laser Reflector Range Range Collimated... -
Page 11: Complementary Products
3.2 Complementary Products wenglor can provide you with suitable connection technology for your product. Suitable mounting technology no. Suitable connection technology no. PNP-NPN converter BG7V1P-N-2M IO-Link master wTeach2 software DNNF005 3.3 Layout P1KL002, P1KL004, P1KL005, P1KL006, P1KL007, P1KL008, P1KL009, P1KL010, P1KL013, P1KL014,... -
Page 12: Control Panel
P1KL003, P1KL012, P1KL027 1 = emitter diode 2 = receiver diode M3 screw = 0.5 Nm Potentiometer = 40 Nmm Dimensions specified in mm (1 mm = 0.03937”) 3.4 Control Panel 05 = switching distance adjuster 30 = switching status indicator / contamination warning 68 = supply power indicator 3.5 Scope of Delivery •... -
Page 13: Transport And Storage
4. Transport and Storage 4.1 Transport Upon receipt of shipment, the goods must be inspected for damage in transit. In the case of damage, con- ditionally accept the package and notify the manufacturer of the damage. Then return the device, making reference to damage in transit. -
Page 14: Electrical Connection
5.2 Electrical Connection 1014 nc nc Legend Encoder A/A (TTL) Platinum measuring resistor Encoder B/B (TTL) Supply Voltage + not connected Encoder A Supply Voltage 0 V Test Input Encoder B Supply Voltage (AC Voltage) Test Input inverted Switching Output (NO) Digital output MIN Trigger Input... -
Page 15: Diagnostics
5.3 Diagnostics Causes for Triggering the Contamination Warning (blinking LED): Display LED Diagnosis/Cause Elimination Contamination Carefully clean the optic cover with a cloth. Continuous blinking Aged emitter diode Replace the sensor. at approx. 2.5 Hz • Increase the sensor’s switching distance. Unreliable working range •... -
Page 16: Settings
• Turn the potentiometer back if required (detection of small or transparent objects). • Move the object into the sensor’s working range and check for correct functioning. 7. IO-Link Further settings are possible via the IO-Link interface. The IODD can be found at www.wenglor.com in the product’s download area. Settings... -
Page 17: Maintenance Instructions
(page 8) 1.3.0 04.11.19 Sensor versions added (page 8) 1.4.0 22.02.21 Sensor versions added (page 8) 10.3 EU Declaration of Conformity The EU declaration of conformity can be found on our website at www.wenglor.com in the product’s download area. Retro-Reflex Sensor...
