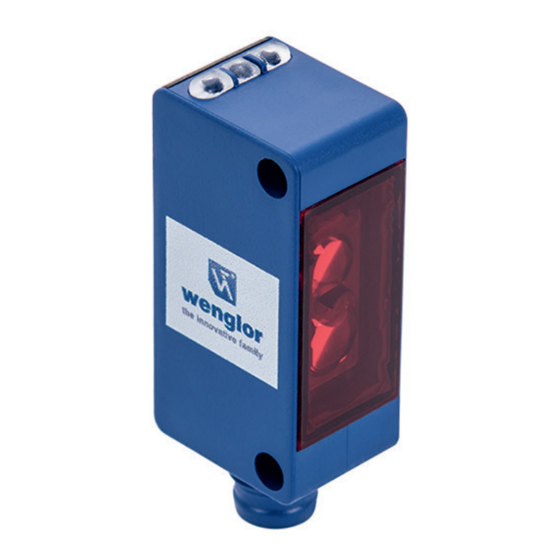

- Page 1 P1KY10x High-Performance Distance Sensors Operating Instructions Translation of the Original Operating Instruction Subject to change without notice Available as PDF version only Version: 1.2.0 Status: 28.01.2019 www.wenglor.com...
-
Page 2: Table Of Contents
Table of Contents 1. General ...........................3 1.1 Information Concerning these Instructions ..................... 3 1.2 Explanations of Symbols ......................... 3 1.3 Limitation of Liability ..........................4 1.4 Copyrights ..............................4 2. For Your Safety ........................5 2.1 Use for Intended Purpose ........................5 2.2 Use for Other than the Intended Purpose .................... -
Page 3: General
• The product is subject to further technical development, and thus the information contained in these operating instructions may also be subject to change. The current version can be found at www.wenglor.com in the product’s separate download area. NOTE! The operating instructions must be read carefully before using the product and must be kept on hand for later reference. -
Page 4: Limitation Of Liability
• wenglor assumes no liability for printing errors or other inaccuracies contained in these operating instruc- tions, unless wenglor was verifiably aware of such errors at the point in time at which the operating instruc- tions were prepared. -
Page 5: For Your Safety
• The product is not suitable for use in potentially explosive atmospheres. • The product may only be used with accessories supplied or approved by wenglor, or combined with approved products. A list of approved accessories and combination products can be accessed at www.wenglor.com on the product detail page. -
Page 6: Personnel Qualifications
• In the event of possible changes, the respectively current version of the operating instruc- tions can be accessed at www.wenglor.com in the product’s download area. • Read the operating instructions carefully before using the product. -
Page 7: Technical Data
3. Technical Data Optical Data Working range 0…1500 mm Setting range 50…1500 mm Switching hysteresis < 30 mm Light source Laser (infrared) Wavelength 940 nm Service life (ambient temp. = +25° C) 100000 h Laser class (EN 60825-1) Max. permissible ambient light 10000 Lux Spot diameter see Table 1... -
Page 8: Spot Diameter
Black, 6 % remission Gray, 18 % remission 1200 1500 Sr/mm 3.3 Accessory Products wenglor can provide you with suitable connection technology for your product. Suitable mounting technology no. Suitable connection technology no. PNP-NPN converter BG7V1P-N-2M IO-Link master wTeach2 software DNNF005... -
Page 9: Layout
3.4 Layout P1KY101, P1KY103 P1KY102, P1KY104 1 = receiver diode 2 = emitter diode M3 screw = 0,5 Nm Dimensions specified in mm (1 mm = 0.03937”) High-Performance Distance Sensors... -
Page 10: Control Panel
3.5 Control Panel A 23 5a 68 6a 06 = teach-in key 5a = switching status display, A1 6a = switching status display, A2 68 = supply power indicator 3.6 Scope of Delivery • Sensor • Safety precautions • Mounting-Set 01 4. -
Page 11: Installation And Electrical Connection
5. Installation and Electrical Connection 5.1 Installation • Protect the product from contamination during installation. • Observe all applicable electrical and mechanical regulations, standards, and safety rules. • Protect the product against mechanical influences. • Make sure that the sensor is mounted in a mechanically secure fashion. •... -
Page 12: Diagnostics
DANGER! Risk of personal injury or property damage due to electric current! Voltage conducting parts may cause personal injury or damage to equipment. • The electric device may only be connected by appropriately qualified personnel. 5.3 Diagnostics Causes for Triggering the Contamination Warning (blinking LED): Display LED Diagnosis/Cause Elimination... - Page 13 • Shut down the machine. • Analyze and eliminate the cause of error with the help of the diagnostics information. • If the error cannot be eliminated, please contact wenglor’s support department. • Do not operate in case of indeterminate malfunctioning.
-
Page 14: Settings
6. Settings The switching distance to the object can be taught in for both outputs by pressing the teach-in key on the sensor (foreground teach-in). Sensor Teach-in distance Object Switching point Foreground Teach-In for Switching Output 1 1. Mount the sensor in accordance with the mounting instructions. 2. -
Page 15: Settings Via Io-Link
7. Settings via IO-Link Further settings can be entered to the sensor via the IO-Link interface. 7.1 Background Teach-In In addition to foreground teach-in (default setting), there’s also a background teach-in option for both outputs. 1. Align the sensor to the background. 2. -
Page 16: Locking
7.3 Locking If 18 to 30 V DC is continuously applied to the teach-in input, the teach-in key is locked and protected against inadvertent changes. 1. Change the A2 pin function to external teach-in. 2. Permanently connect pin A2 to voltage within a range of 18 to 30 V DC. 3. -
Page 17: Io-Link
8. IO-Link Process and parameters data, as well as the IODD, can be found at www.wenglor.com in the product’s sepa- rate download area. 9. Maintenance Instructions NOTE! • This wenglor sensor is maintenance-free. • Cleaning and inspection of the plug connections at regular intervals are advisable. -
Page 18: Appendix
“7. Settings via IO-Link”, page 15 1.2.0 15.01.19 New versions added, see section “3. Technical Data”, page 7 11.3 EU Declaration of Conformity The EU declaration of conformity can be found on our website at www.wenglor.com in the product’s down- load area. Appendix...
