Summary of Contents for Wenglor P1HJ1 Series

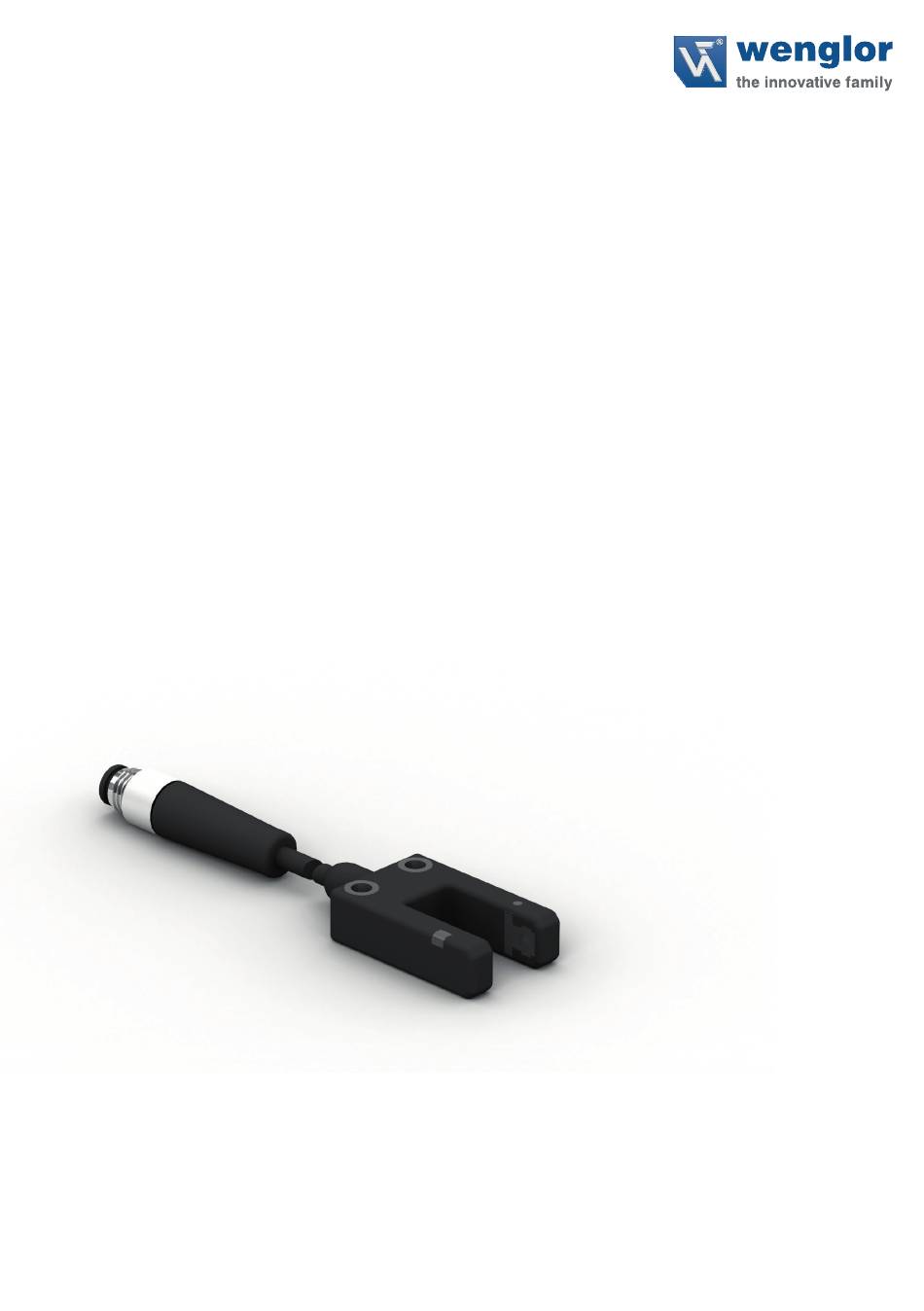

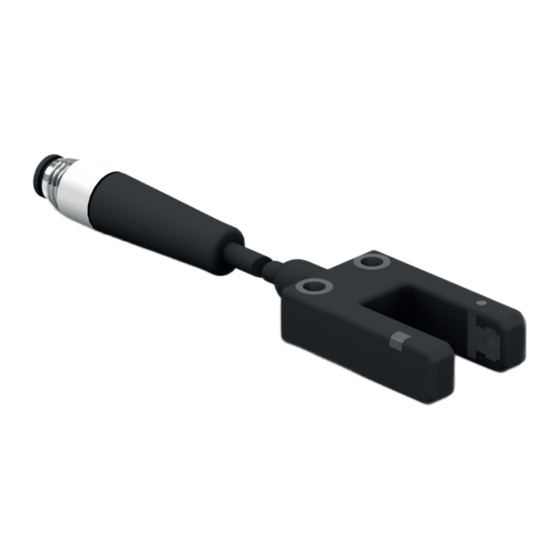

- Page 1 P1HJ1xx Fork Sensor Miniature Design Operating Instructions Translation of the Original Operating Instruction Subject to change without notice Available as PDF version only Version: 1.0.0 Status: 10.03.2022 www.wenglor.com...
-
Page 2: Table Of Contents
Table of Contents 1. General ..........................3 1.1 Information Concerning these Instructions .....................3 1.2 Explanations of Symbols .........................3 1.3 Limitation of Liability ..........................4 1.4 Copyrights ..............................4 2. For Your Safety ........................5 2.1 Use for Intended Purpose ........................5 2.2 Use for Other than the Intended Purpose....................5 2.3 Personnel Qualifications ..........................6 2.4 Modification of Products .........................6 2.5 General Safety Precautions ........................6... -
Page 3: General
• The product is subject to further technical development, and thus the information contained in these operating instructions may also be subject to change. The current version can be found at www.wenglor.com in the product’s separate download area. NOTE! The operating instructions must be read carefully before using the product and must be kept on hand for later reference. -
Page 4: Limitation Of Liability
• wenglor assumes no liability for printing errors or other inaccuracies contained in these operating instructions, unless wenglor was verifiably aware of such errors at the point in time at which the operating instructions were prepared. -
Page 5: For Your Safety
• The product is not suitable for use in potentially explosive atmospheres. • The product may only be used with accessories supplied or approved by wenglor, or combined with approved products. A list of approved accessories and combination products can be accessed at www.wenglor.com on the product detail page. -
Page 6: Personnel Qualifications
• In the event of possible changes, the respectively current version of the operating instructions can be accessed at www.wenglor.com in the product’s download area. • Read the operating instructions carefully before using the product. -
Page 7: Technical Data
3. Technical Data 3.1 Technical Data Optical Data Fork Width 9 mm Smallest Recognizable Part 0.7 mm Light Source Red light Service Life (T = +25 °C) 100,000 h Max. Ambient Light 10,000 Lux Repeat Accuracy 0.05 mm Electrical Data Supply Voltage 10 ... -
Page 8: Complementary Products
3.2 Complementary Products wenglor can provide you with suitable connection technology for your product. Suitable connection technology no. PNP-NPN converter BG7V1P-N-2M IO-Link master wTeach2 software DNNF005 3.3 Layout P1HJ101 1 = emitter diode 2 = receiver diode M3 screw = 0.5 Nm Dimensions specified in mm (1 mm = 0.03937”) -
Page 9: Control Panel
3.4 Control Panel 30 = switching status indicator / contamination warning 3.5 Scope of Delivery • Sensor • Safety precautions 4. Transport and Storage 4.1 Transport Upon receipt of shipment, the goods must be inspected for damage in transit. In the case of damage, con- ditionally accept the package and notify the manufacturer of the damage. -
Page 10: Installation And Electrical Connection
5. Installation and Electrical Connection 5.1 Installation • Protect the product from contamination during installation. • Observe all applicable electrical and mechanical regulations, standards, and safety rules. • Protect the product against mechanical influences. • Make sure that the sensor is mounted in a mechanically secure fashion. •... -
Page 11: Electrical Connection
5.2 Electrical Connection Legend Encoder A/A (TTL) Platinum measuring resistor Encoder B/B (TTL) Supply Voltage + not connected Supply Voltage 0 V Encoder A Test Input Encoder B Supply Voltage (AC Voltage) Test Input inverted Digital output MIN Switching Output (NO) Trigger Input Switching Output... -
Page 12: Diagnostics
5.3 Diagnostics Causes for Triggering the Contamination Warning (blinking LED): Display LED Diagnosis/Cause Elimination Contamination Carefully clean the optic cover with a cloth. Continuous blinking Aged emitter diode Replace the sensor. at approx. 2.5 Hz • Increase the sensor’s switching distance. Unreliable working range •... -
Page 13: Settings
• Insert the object into the working range between the emitter and receiver of the fork sensor and check the correct function using the switching status indicator. 7. IO-Link Further settings are possible via the IO-Link interface. The IODD can be found at www.wenglor.com in the product’s download area. Fork Sensor... -
Page 14: Maintenance Instructions
10.2 Change Index, Operating Instructions Version Date Description/Change 1.0.0 10.03.2022 Initial version of the operating instructions 10.3 EU Declaration of Conformity The EU declaration of conformity can be found on our website at www.wenglor.com in the product’s download area. Maintenance Instructions...
