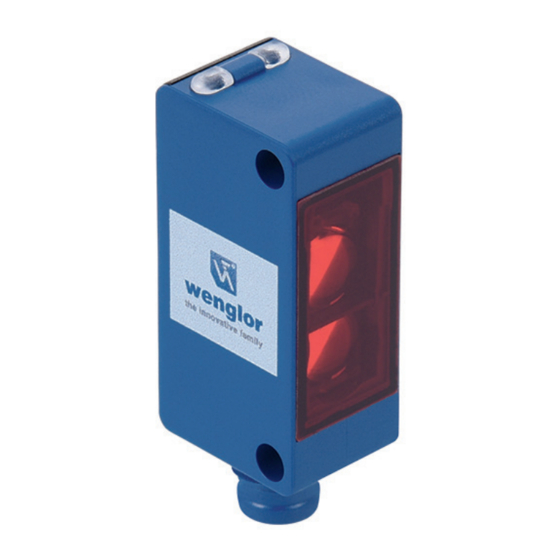

- Page 1 P1KTxxx Reflex Sensor Operating Instructions Translation of the Original Operating Instruction Subject to change without notice Available as PDF version only Version: 1.1.0 Status: 04.12.2017 www.wenglor.com...
-
Page 2: Table Of Contents
Table of Contents 1. General ...........................3 1.1 Information Concerning these Instructions ..................... 3 1.2 Explanations of Symbols ......................... 3 1.3 Limitation of Liability ..........................4 1.4 Copyrights ..............................4 2. For Your Safety ........................5 2.1 Use for Intended Purpose ........................5 2.2 Use for Other than the Intended Purpose .................... -
Page 3: General
• Local accident prevention regulations and national work safety regulations must be complied with as well. • The product is subject to further technical development, and thus the information contained in these oper- ating instructions may also be subject to change. The current version can be found at www.wenglor.com in the product’s separate download area. -
Page 4: Limitation Of Liability
• wenglor assumes no liability for printing errors or other inaccuracies contained in these operating instruc- tions, unless wenglor was verifiably aware of such errors at the point in time at which the operating instruc- tions were prepared. -
Page 5: For Your Safety
• The product is not suitable for use in potentially explosive atmospheres. • The product may only be used with accessories supplied or approved by wenglor, or combined with approved products. A list of approved accessories and combination products can be accessed at www.wenglor.com on the product detail page. -
Page 6: Personnel Qualifications
• In the event of possible changes, the respectively current version of the operating instructions can be accessed at www.wenglor.com in the product’s download area. • Read the operating instructions carefully before using the product. -
Page 7: Technical Data
3. Technical Data P1KT Order Number Technical Data Optical Data Detection range 700 mm Switching hysteresis < 10 % Light source Red light Service life (ambient temp. = +25 °C) 100,000 hours Max. permissible ambient light 10,000 lux Aperture angle <... -
Page 8: Accessory Products
Gray (18 %) 400 mm Black (6 %) 200 mm Table 2 3.1 Accessory Products wenglor can provide you with suitable connection technology for your product. Suitable mounting technology no. Suitable connection technology no. PNP-NPN converter BG7V1P-N-2M IO-Link master wTeach2 software DNNF005 3.2 Layout... -
Page 9: Control Panel
3.3 Control Panel 05 = switching distance adjuster 30 = switching status indicator / contamination warning 68 = supply power indicator 3.4 Scope of Delivery • Sensor • Safety precautions • Mounting-Set 01 Reflex Sensor... -
Page 10: Transport And Storage
4. Transport and Storage 4.1 Transport Upon receipt of shipment, the goods must be inspected for damage in transit. In the case of damage, con- ditionally accept the package and notify the manufacturer of the damage. Then return the device, making reference to damage in transit. -
Page 11: Installation And Electrical Connection
5. Installation and Electrical Connection 5.1 Installation • Protect the product from contamination during installation. • Observe all applicable electrical and mechanical regulations, standards, and safety rules. • Protect the product against mechanical influences. • Make sure that the sensor is mounted in a mechanically secure fashion. •... -
Page 12: Diagnostics
DANGER! Risk of personal injury or property damage due to electric current! Voltage conducting parts may cause personal injury or damage to equipment. • The electric device may only be connected by appropriately qualified personnel. 5.3 Diagnostics Causes for Triggering the Contamination Warning (blinking LED): Display LED Diagnosis/Cause Elimination... -
Page 13: Settings
• Turn up the potentiometer until activation occurs and, if required, turn it up a bit more for increased switch- ing reliability. 7. I/O-Link Further settings are possible via the IO-Link interface. The IODD can be found at www.wenglor.com in the product’s download area. Reflex Sensor... -
Page 14: Maintenance Instructions
Initial version of the operating instructions 1.1.0 04.12.17 “3. Technical Data” on page 7 10.3 EU Declaration of Conformity The EU declaration of conformity can be found on our website at www.wenglor.com in the product’s down- load area. Maintenance Instructions... - Page 15 Reflex Sensor...
